ALKALINE ETCHING MACHINE FOR STAINLESS STEEL LABLE
Description
ALKALINE ETCHING MACHINE FOR STAINLESS STEEL LABLE
Etching machine is waiting for you.

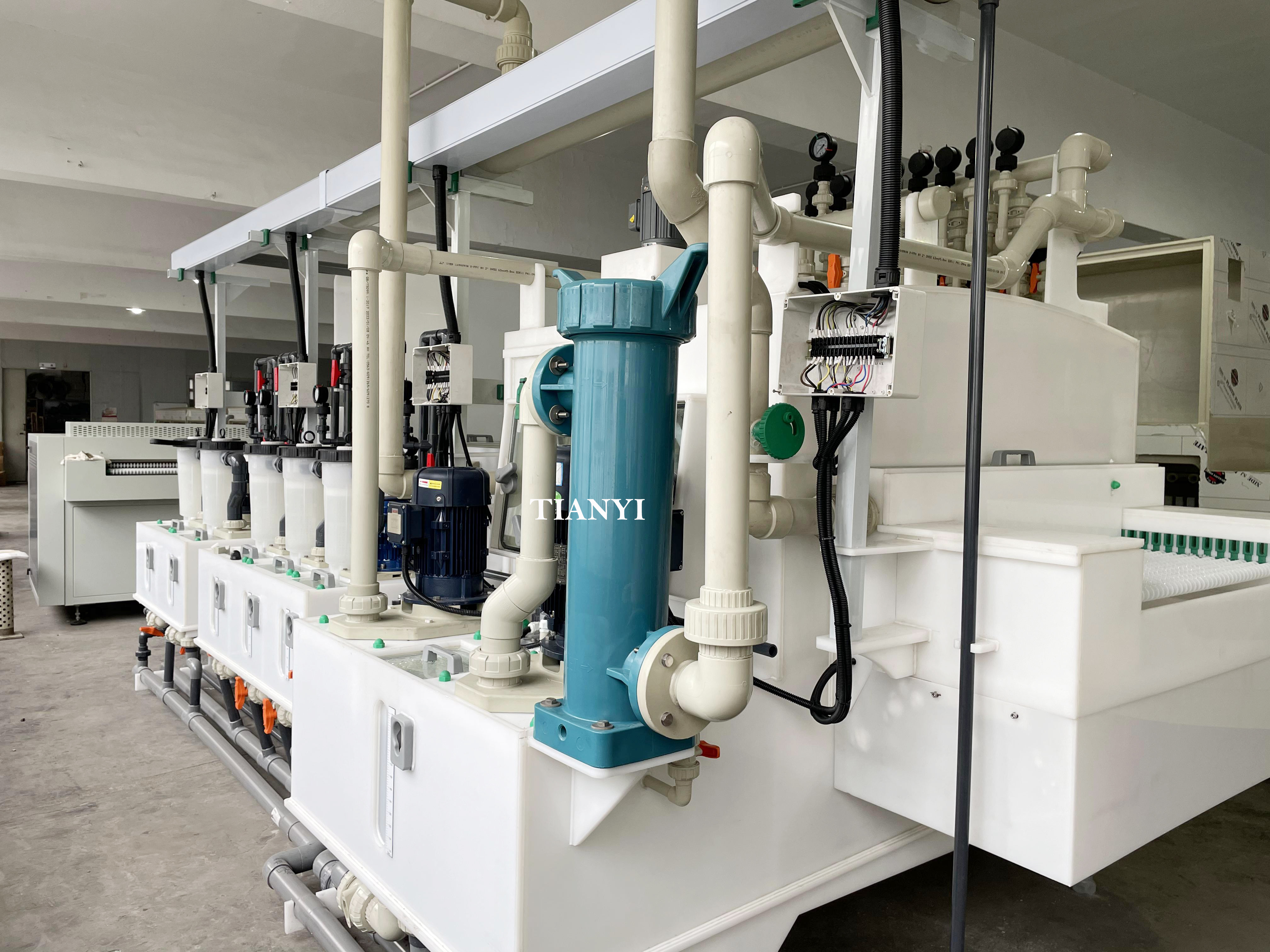

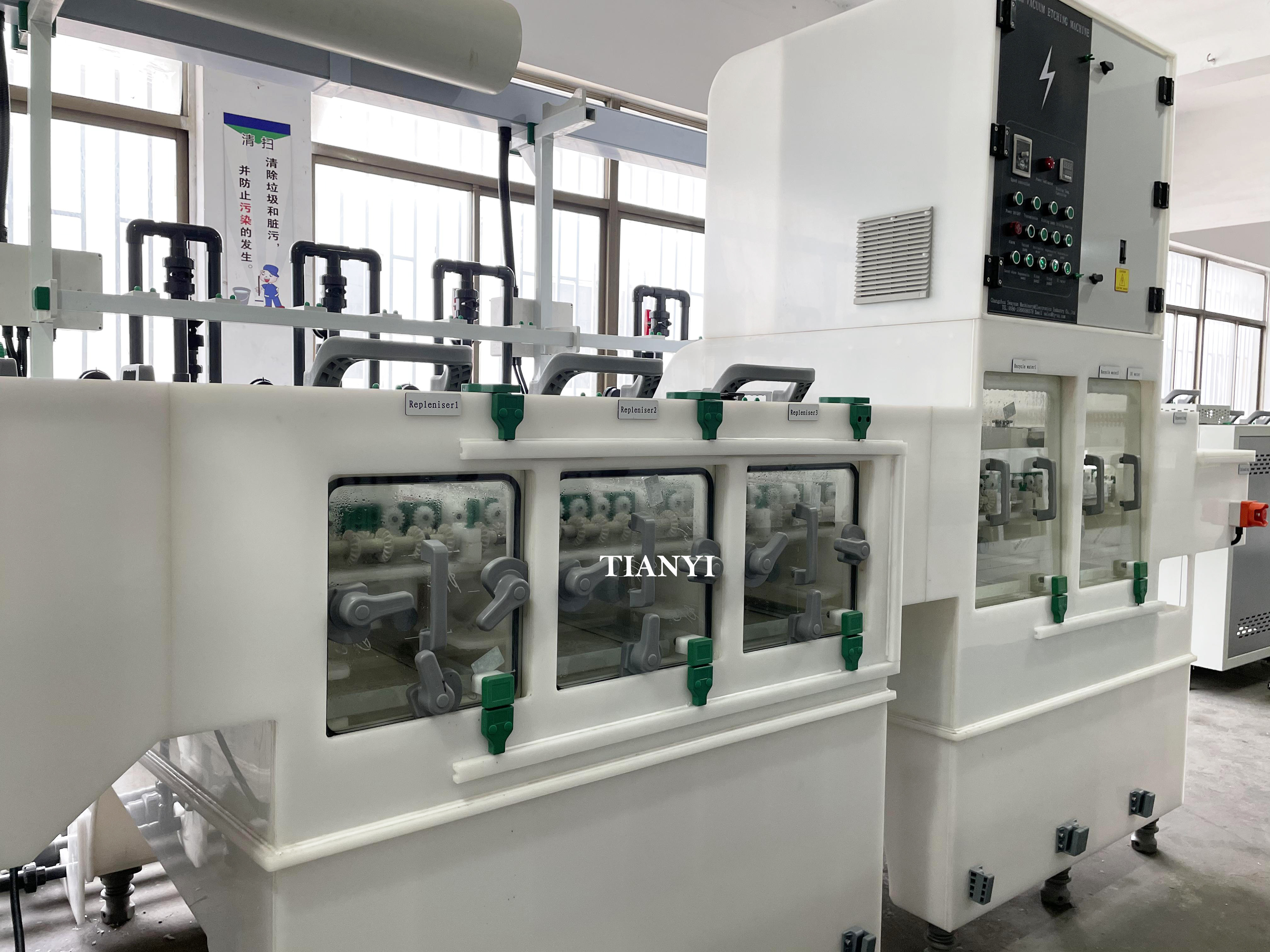

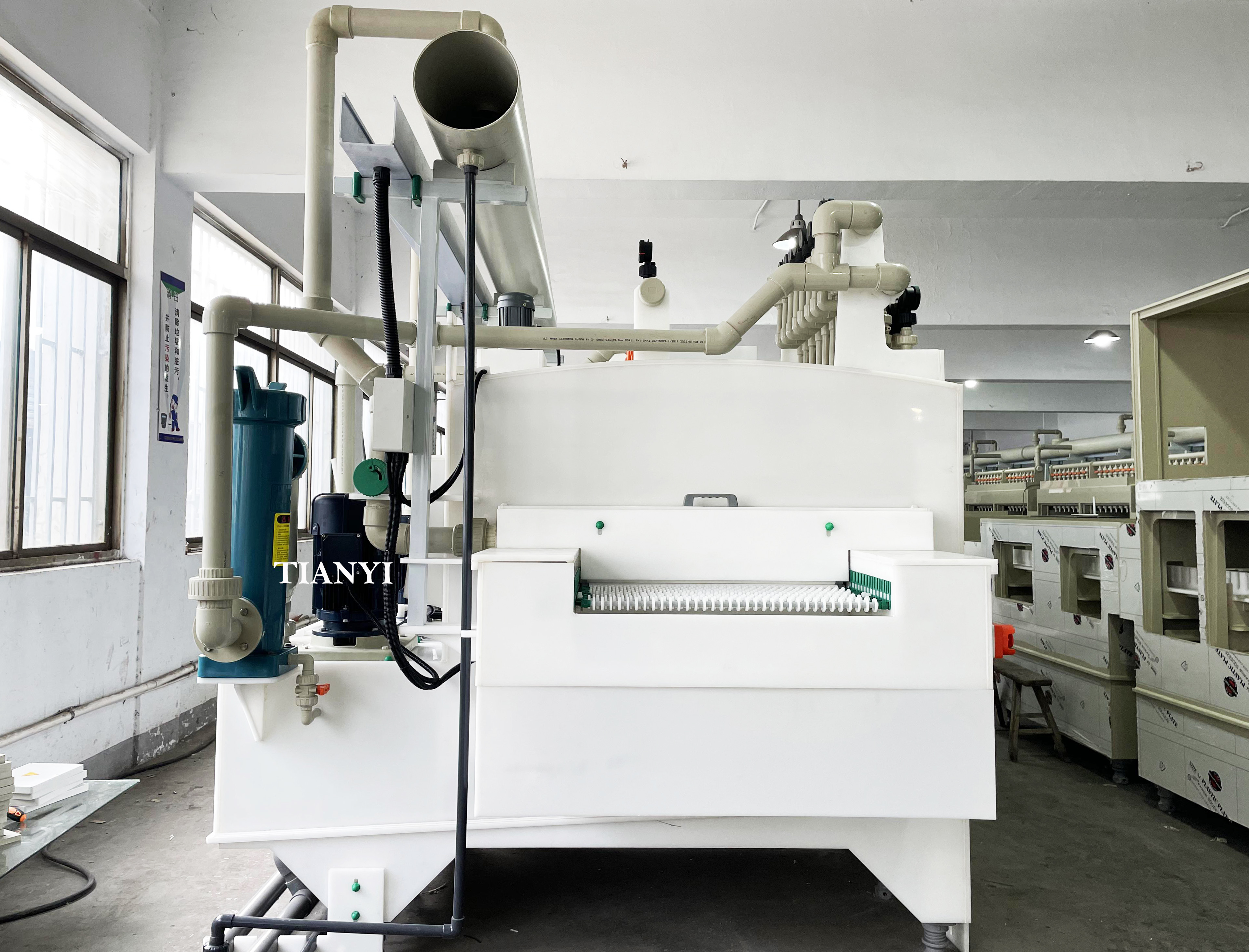

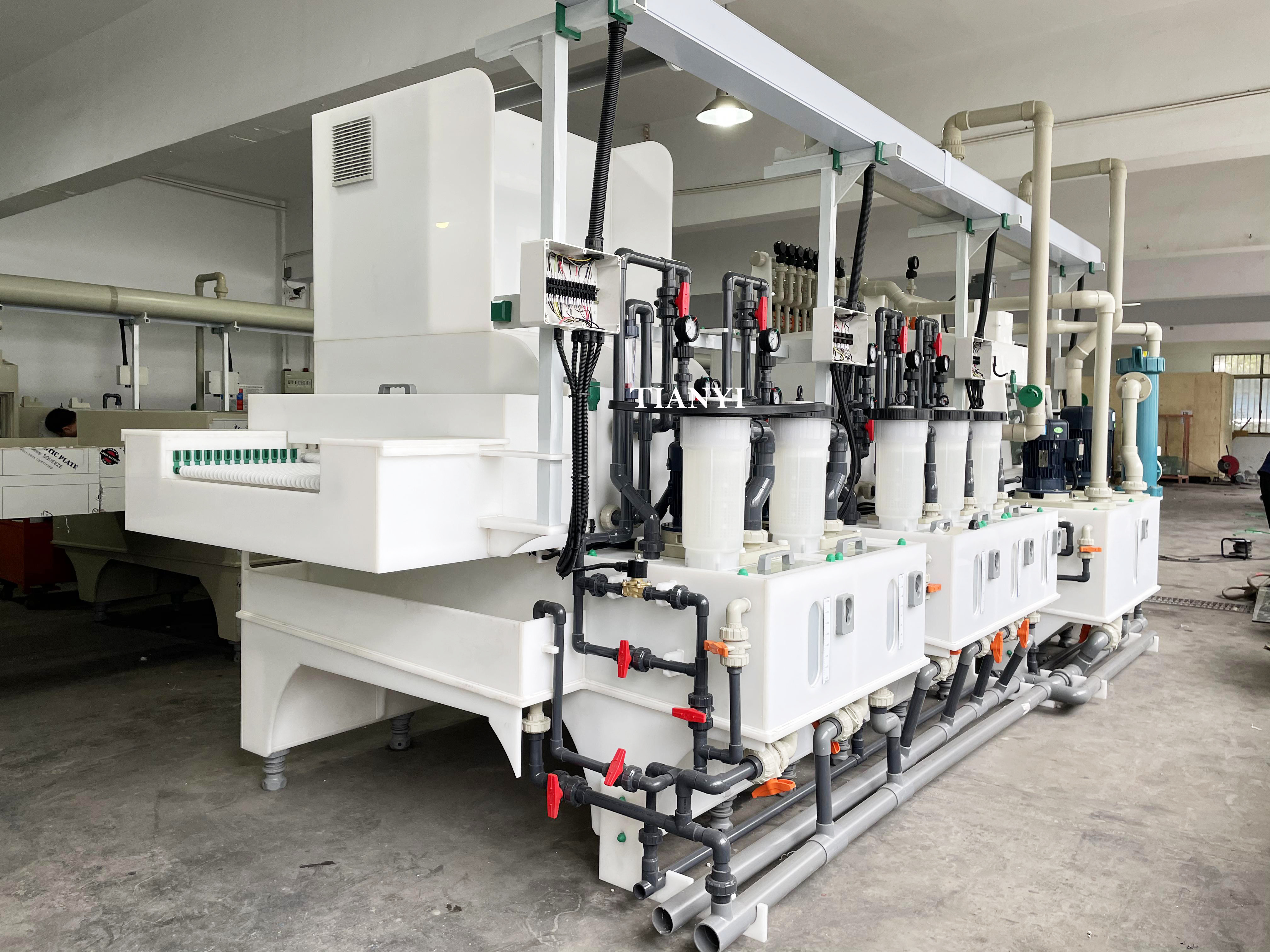

Effective etching spraying length is 1 meter, constructed with a corrosion-resistant body and advanced PP material, alkaline etching machine assemble full pressure gauge with Vacuum system for small or sample precise etching production.

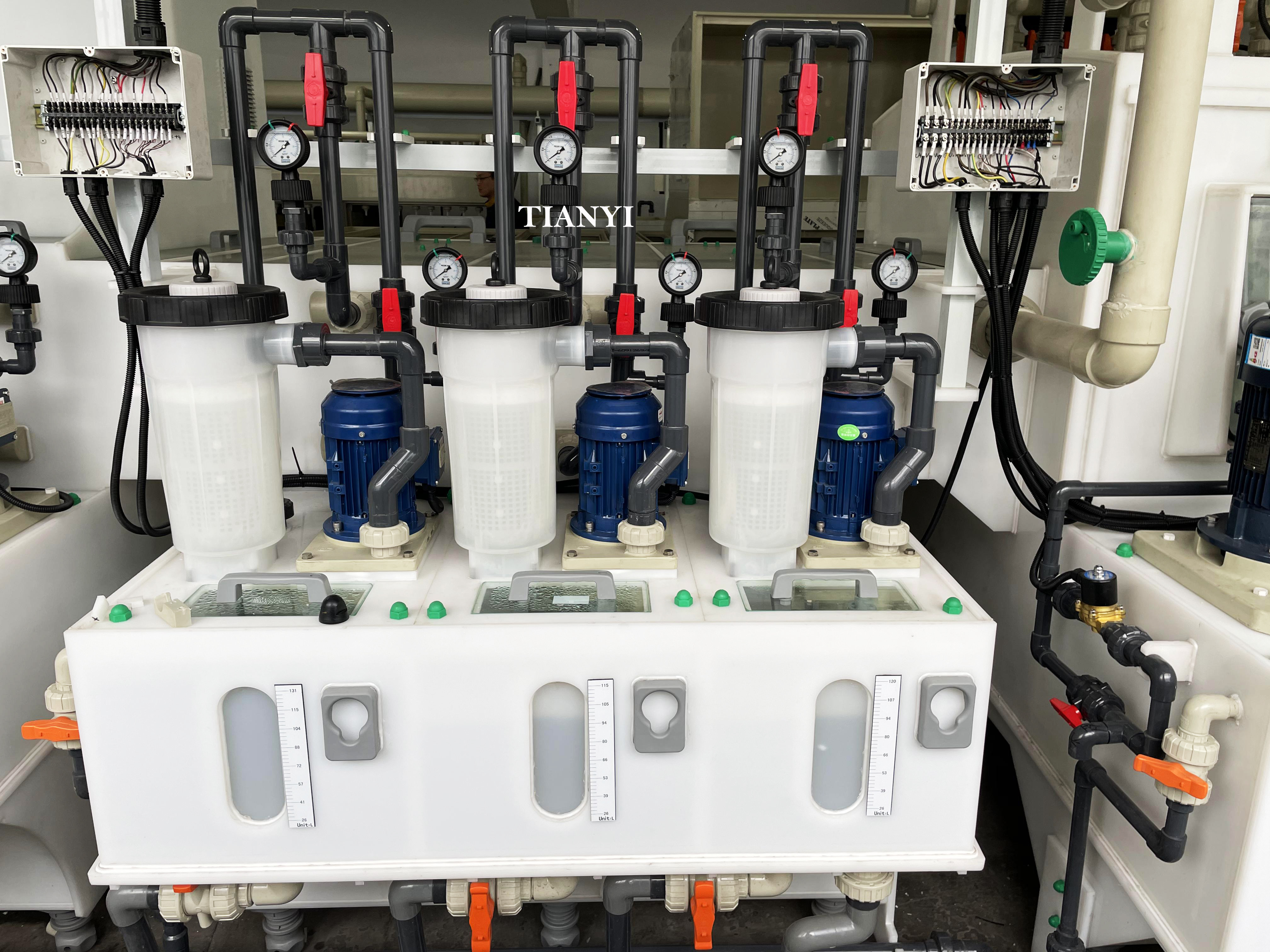

Etching machine is equipped with alkaline regeneration system for better chemical concentration control, convenient in actual operation.
With easy to operate controls, automatic temperature regulation, and effective exhaust and fume treatment, the machine offer a safe and user friendly working environment. Widely applied in signage manufacturing, nameplate production, electronic labeling and decorative stainless steel processing.
Specifications
Etching machine process includes Loading → Etching → Replenisher tanks (1/2/3) → Recycle washing (1/2) → DI water rinsing → Squeezing → Unloading
Dimension L5005xW1930xH2650MM
Effective working width 600mm
Etching heating/cooling Electric heatingwith cooling coil
Etching pump 7.5HP 1SET double side Etching
Total power consumption 20.88KW
Guarantee 1year
Optional Acid regeneration system; Coolingchiller; waste gas scrubber(acid fume treatment)
