Aluminum Etching machine for Heated Side Mirror Antenna

Description

Aluminum Etching machine for Heated Side Mirror Antenna

‍

Etching machine is waiting for you.

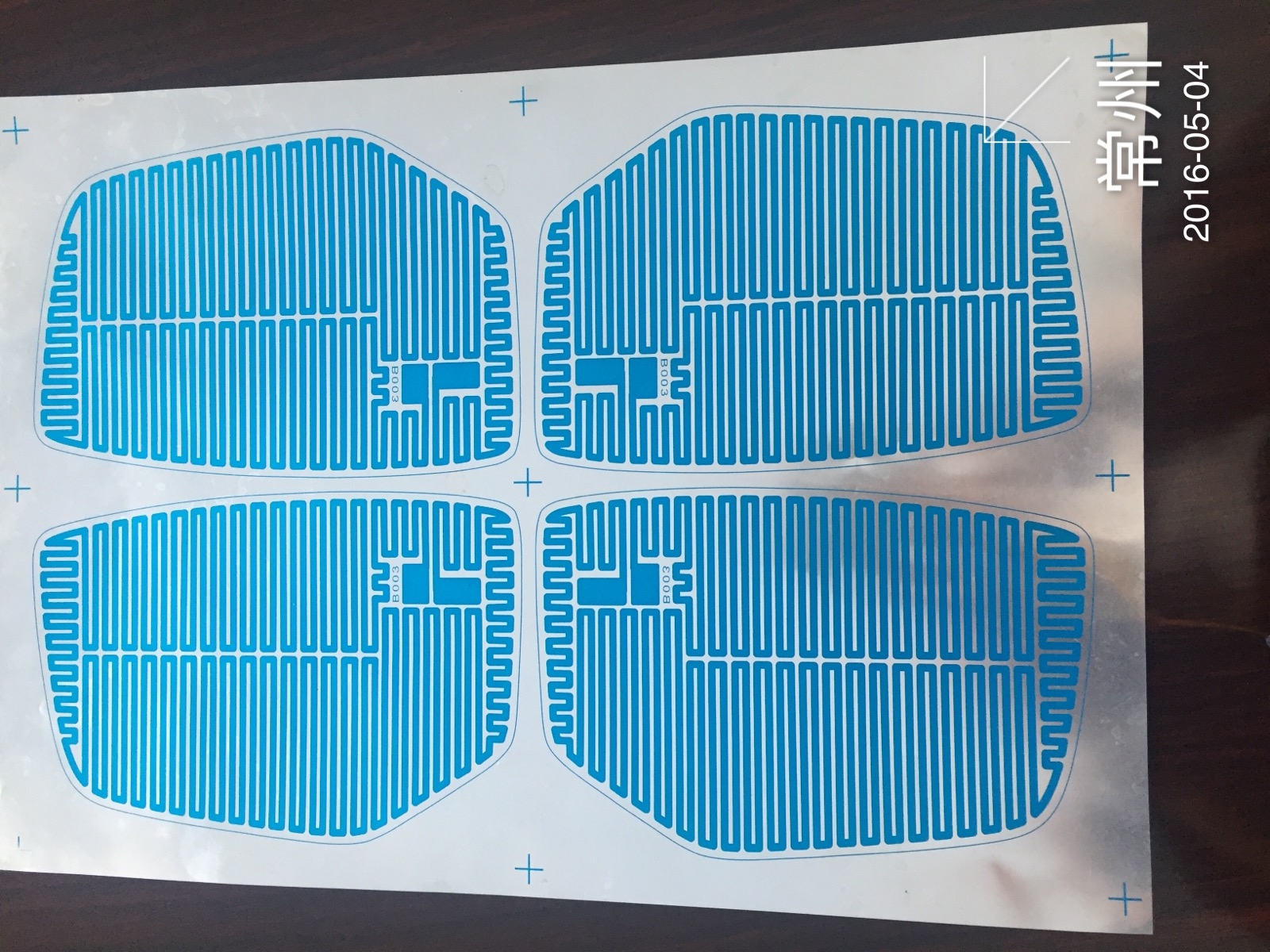

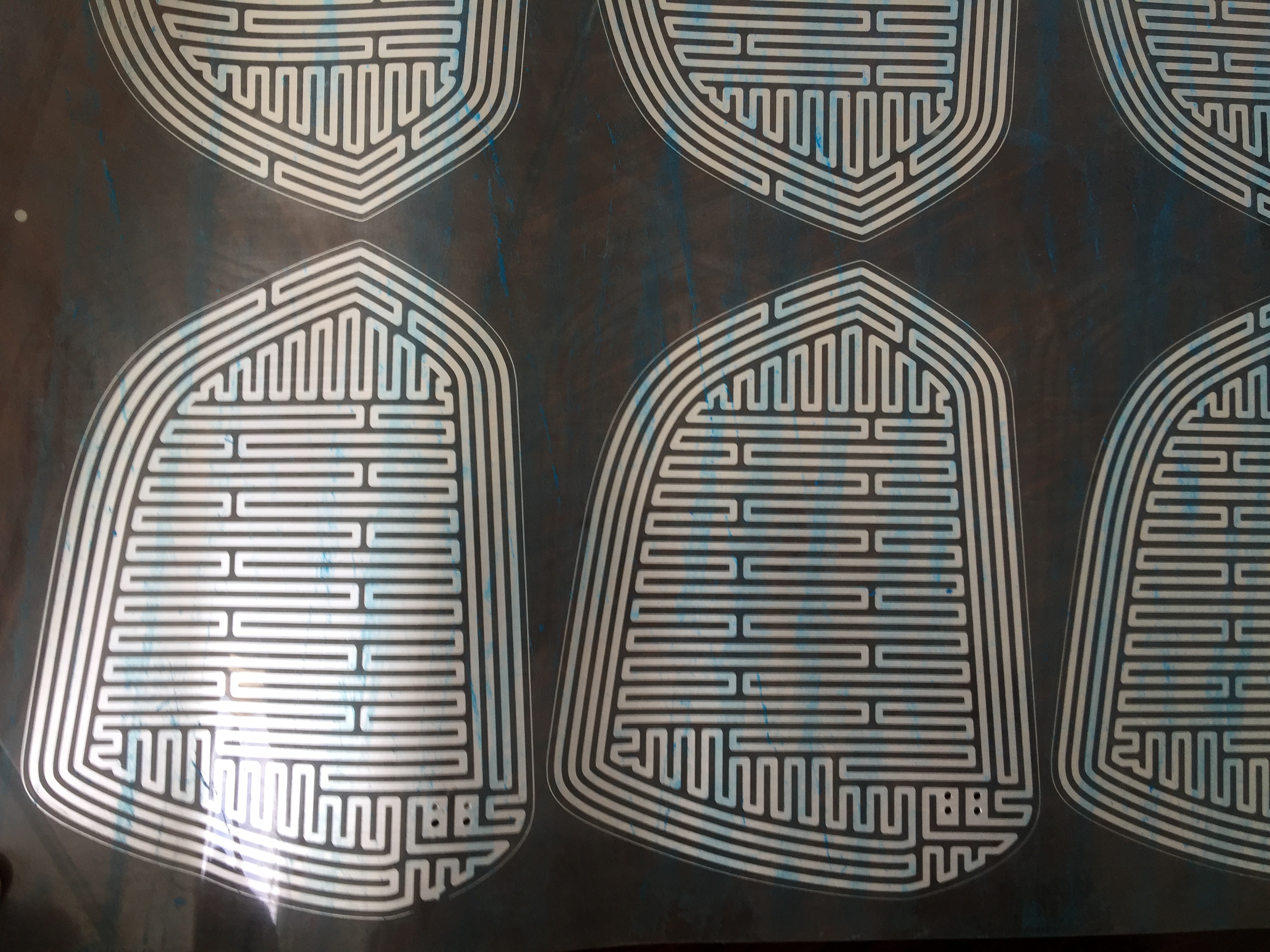

Effective etching spraying length is 4 meter, it could achieve 8meter/min working speed for aluminum heated side mirror Antenna etching production.

The aluminum PET film could be piece to piece or roll to roll. Roll to roll running by adding winder and unwinder.

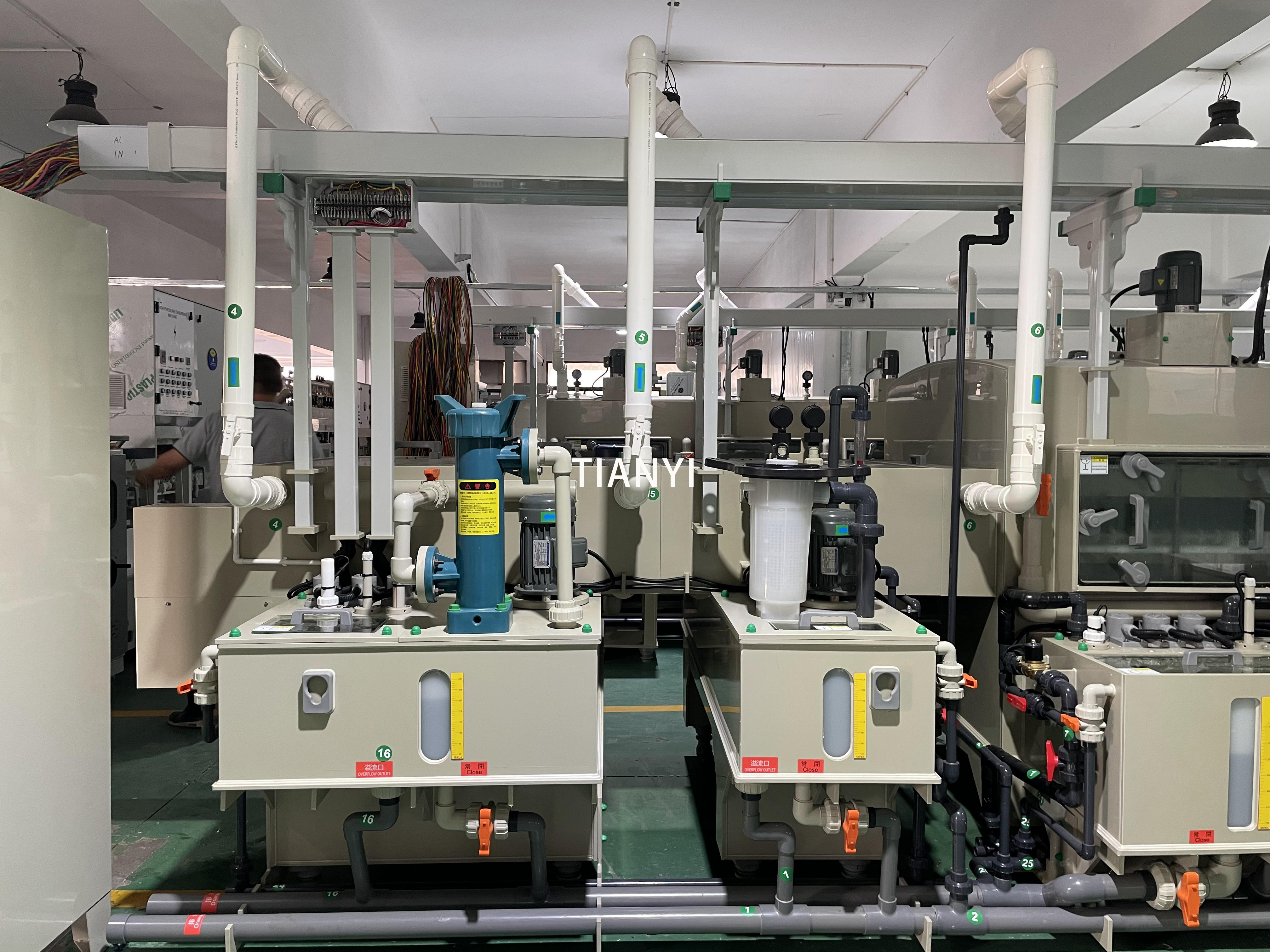

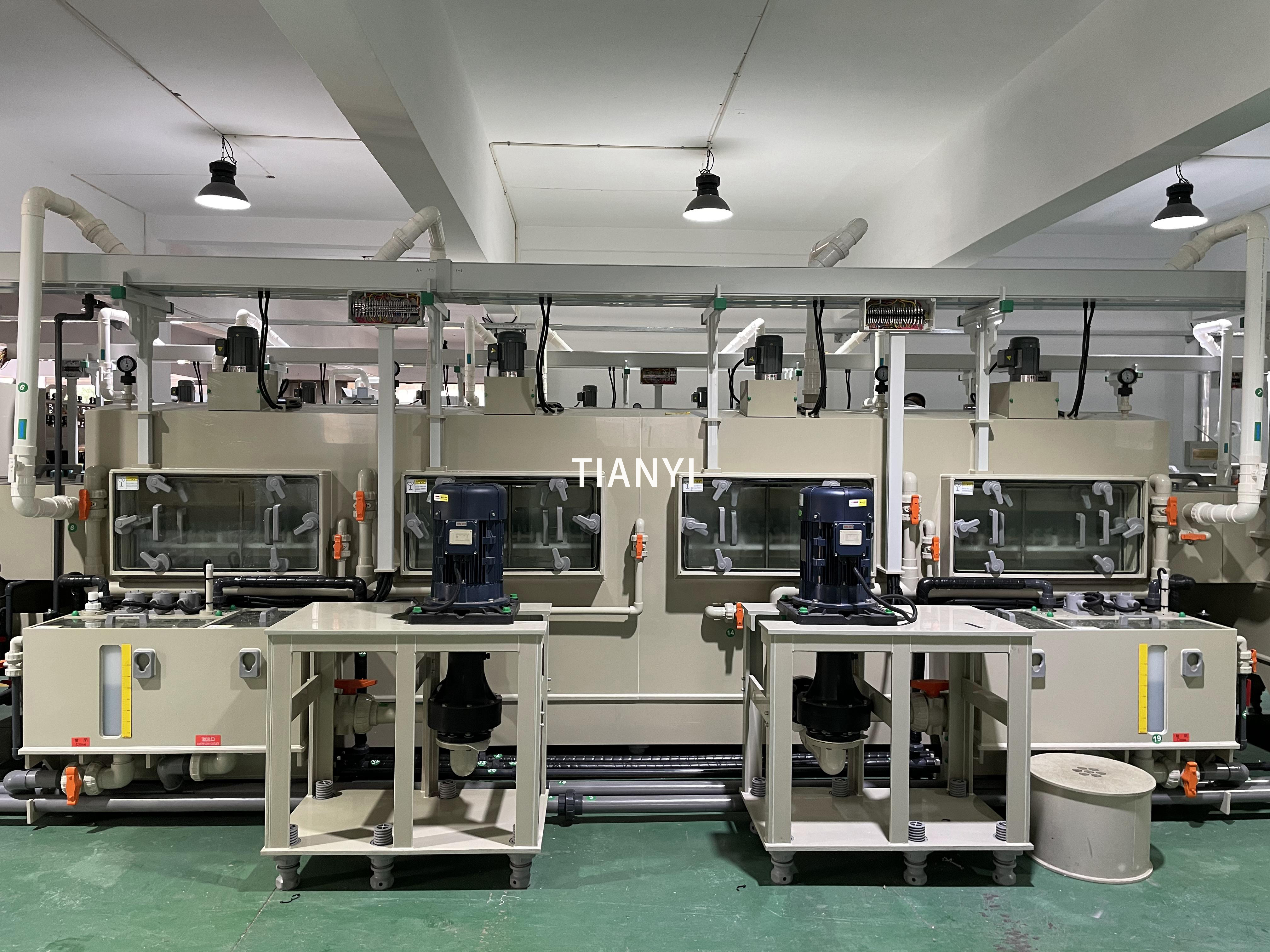

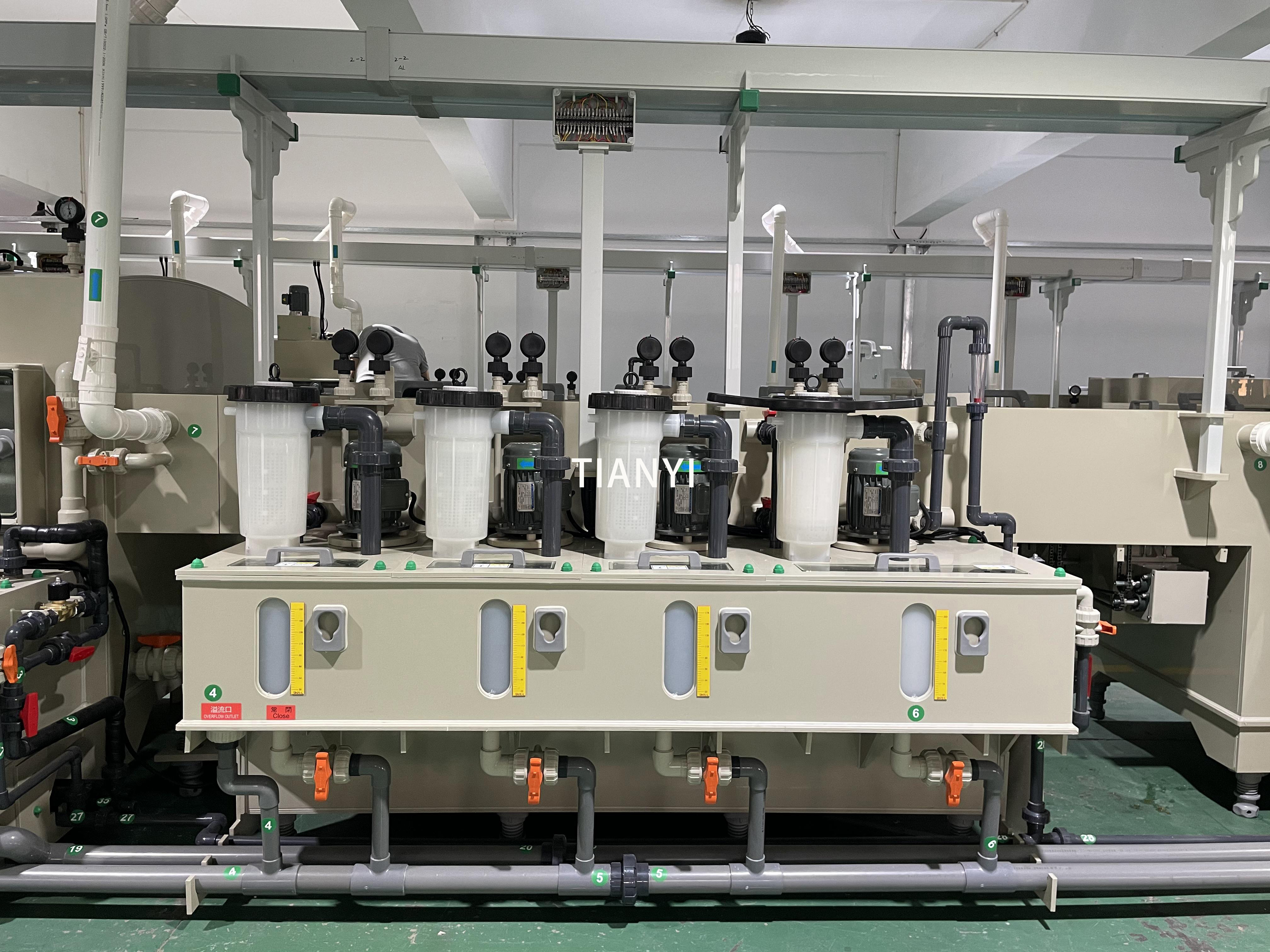

Constructed with a corrosion-resistant body and advanced PP material.Equipped with an acid regeneration system to ensure precise concentration control and stable performance for batch etching production.

No items found.

Specifications

Etching machine process includes Loading → Acid washing → Reycle washing 1 → Squeezing → Etching → Recycle washing (2/3/4) → Inspection → Soak → Film stripping → Recycle washing (5/6/7) → Squeezing → Cold blower → Hot air drying → Unloading

Dimension L18,385xW2,400xH2,460MM

Effective working width 750mm

Etching heating/cooling Electric heating with cooling coil

Etching pump 7.5HP 4SET single side Etching

Total power consumption 99.95KW

Guarantee 1year

Optional Acid regeneration system; Cooling chiller;waste gas scrubber(acid fume treatment)
