Ceramic substrate cleaning and brushing machine

Description

Ceramic substrate cleaning and brushing machine

‍

Brushing machine is waiting for you.

The brushing module is constructed with a robust stainless steel frame, other plastic part made of PVC sheets for excellent corrosion resistance.

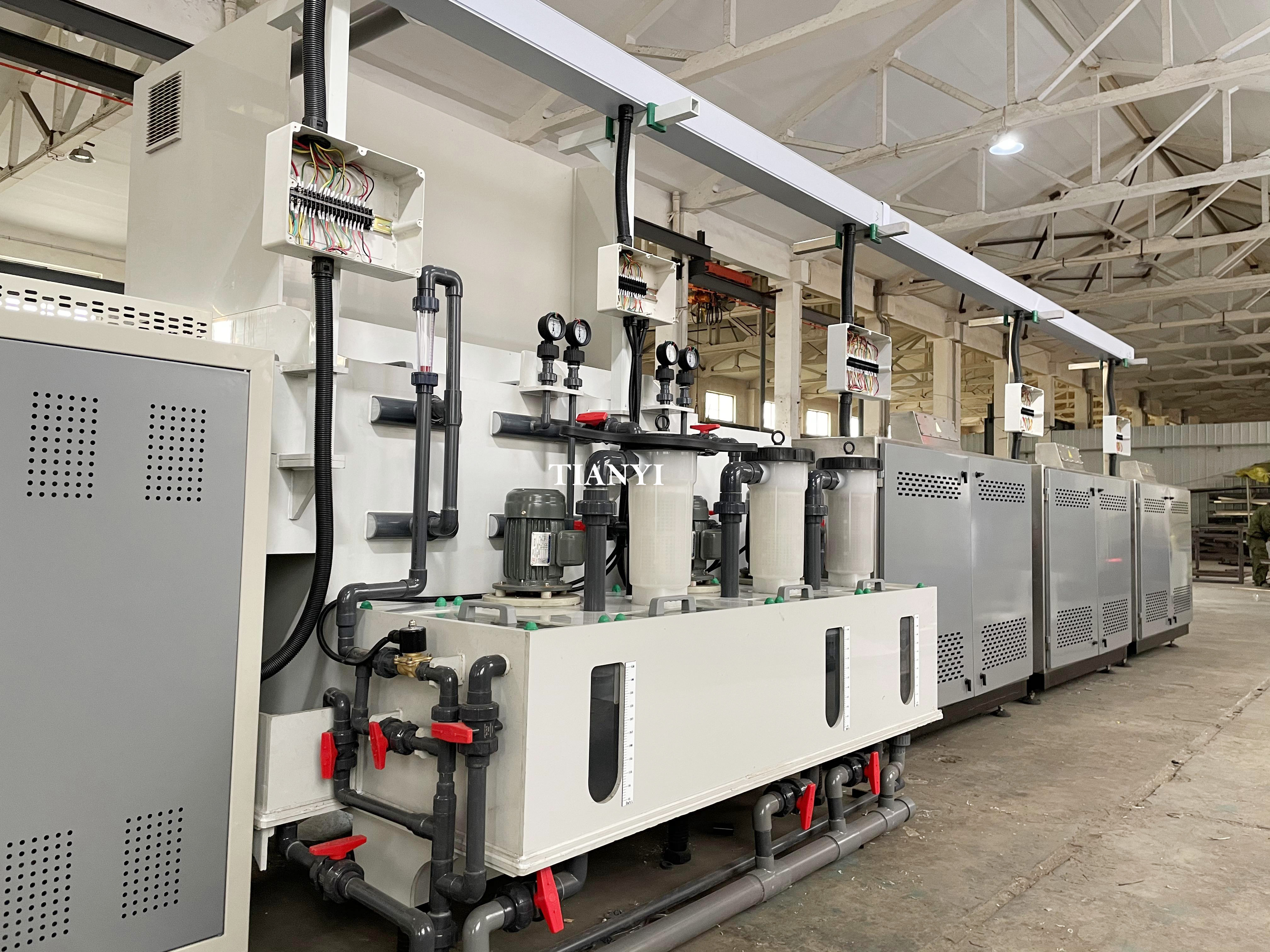

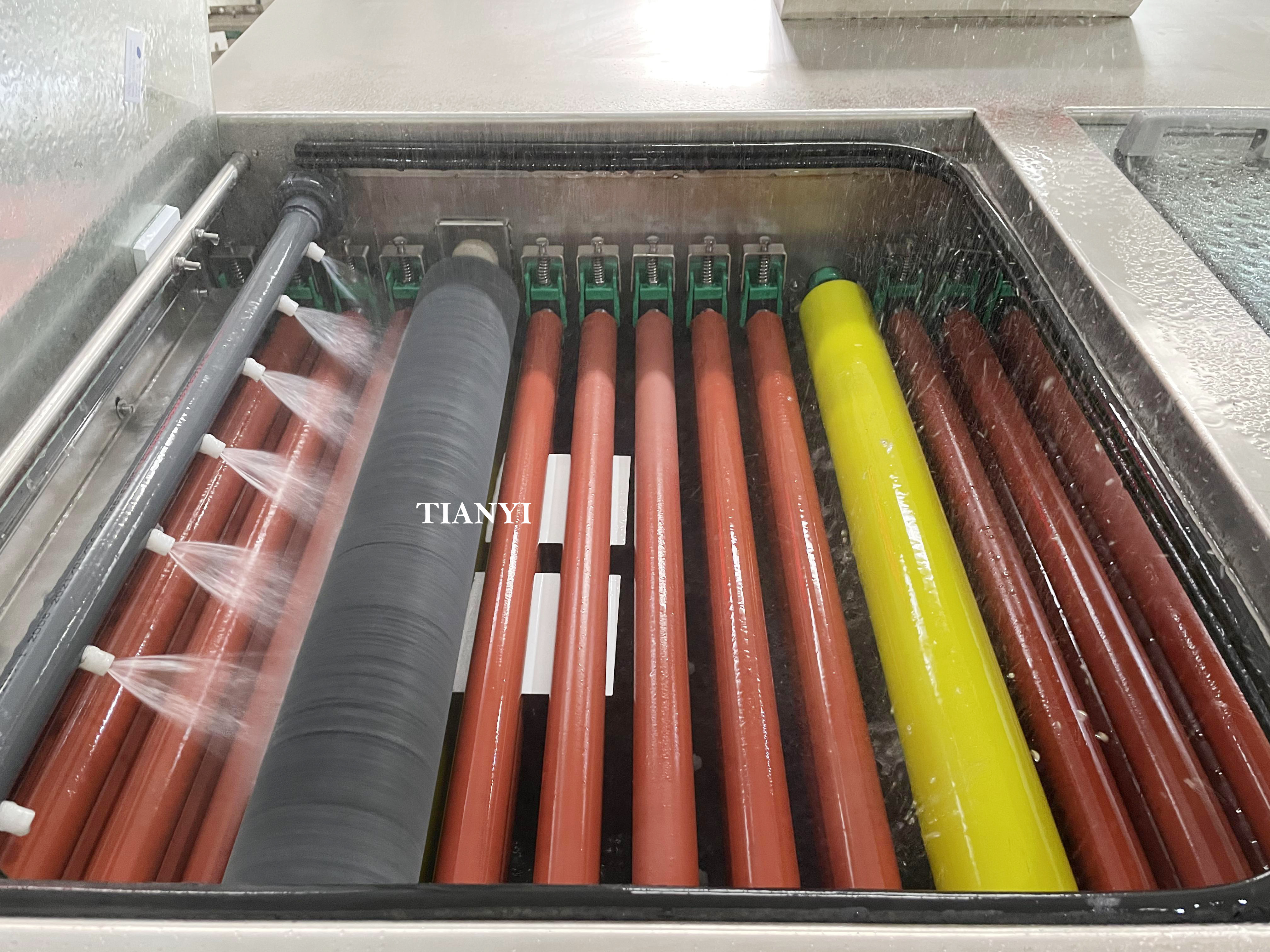

The brushing rollers be configured with nylon brushes, specially applied to ceramic substrate cleaning and brushing process. Equipped one PVC water tank for washing water recycling in brushing module.

No items found.

Specifications

Brushing machine process includes Loading → Brushing → Recycle water washing(1/2) → DI water washing → Squeezing → Cold blower → Hot air drying → Unloading

Dimension L10,800xW1960xH2275MM

Effective working width 800mm

Brushing heating/cooling None

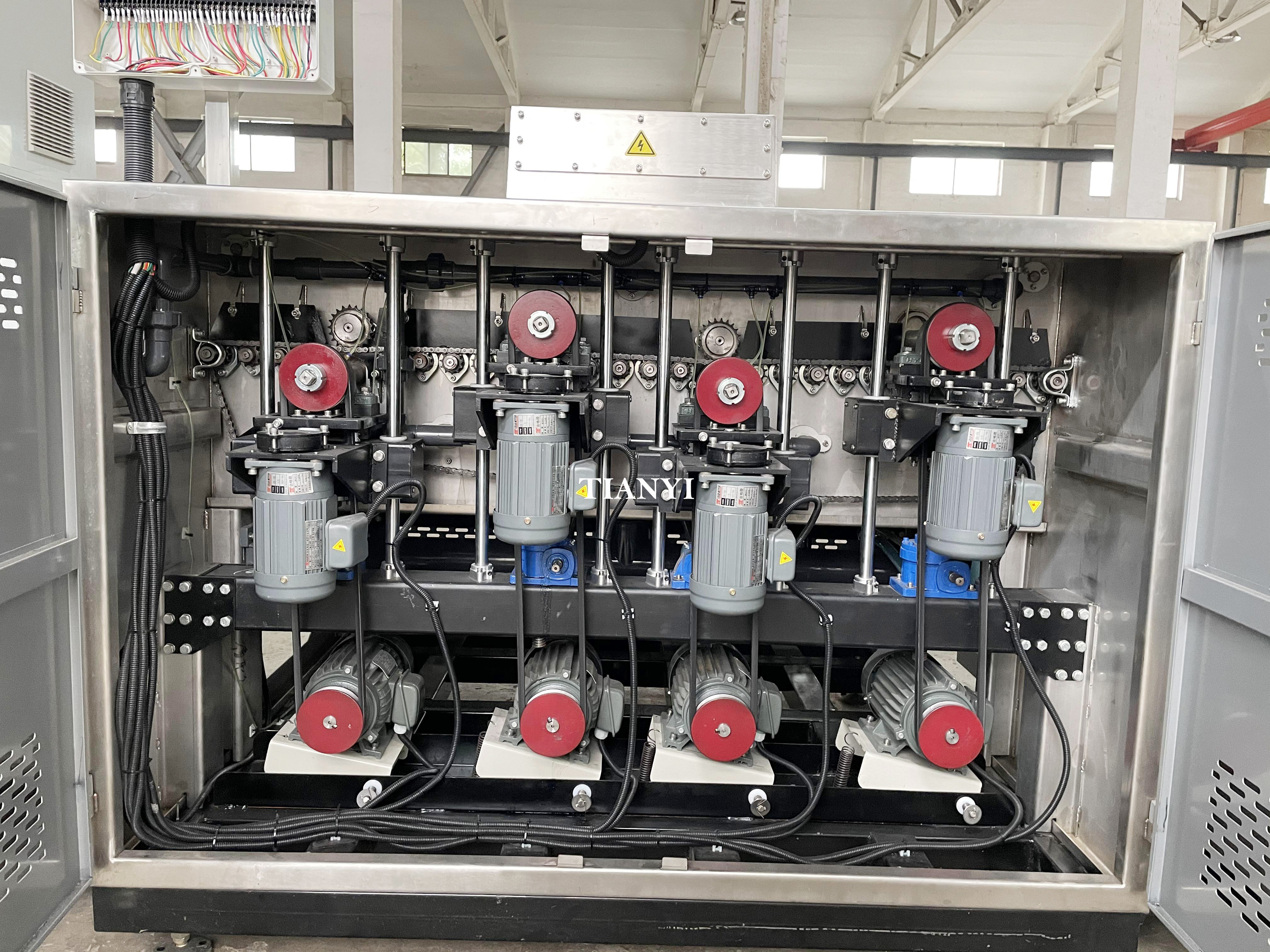

Brushing motor 1.5KW 12SET with 200W 12SET Oscillation motor

Total power consumption 43.3KW

Guarantee 1year

Optional Auto loader and Unloader
