CHEMICAL ETCHING MACHINE FOR METAL ELECTRONICS

Description

CHEMICALETCHING MACHINE FOR METAL ELECTRONICS

‍

Etching machine is waiting for you.

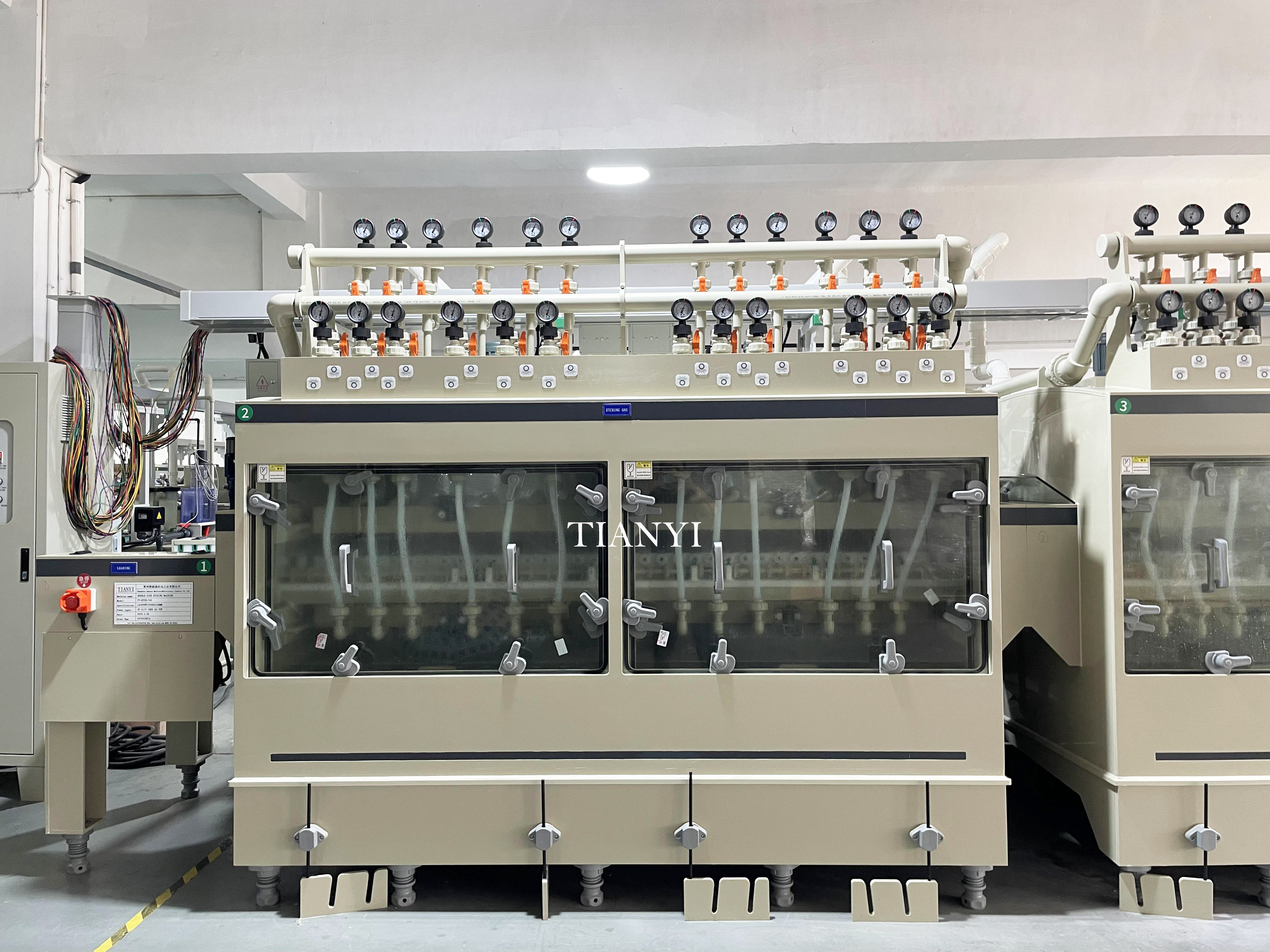

Effective etching spraying length is 4 meter, constructed with a corrosion-resistant body and advanced PP material, chemical etching machine assemble full pressure gauge for medium precise etching production.

Etching machine is equipped with acid regeneration system for better chemical concentration control, convenient in actual operation.

No items found.

Specifications

Etching machine process includes Loading → Etching → Recycle washing (1/2) → DI water rinsing → Squeezing → Unloading

Dimension L8480xW2390xH2600MM

Effective working width 740mm

Etching heating/cooling Electric heating with cooling coil

Etching pump 7.5HP 4SET double side Etching

Total power consumption 62.7KW

Guarantee 1year

Optional Acid regeneration system; Cooling chiller; waste gas scrubber(acid fume treatment)
