Chemical Etching machine for stainless steel press plate

Description

Chemical Etching machine for stainless steel press plate

‍

Etching machine is waiting for you.

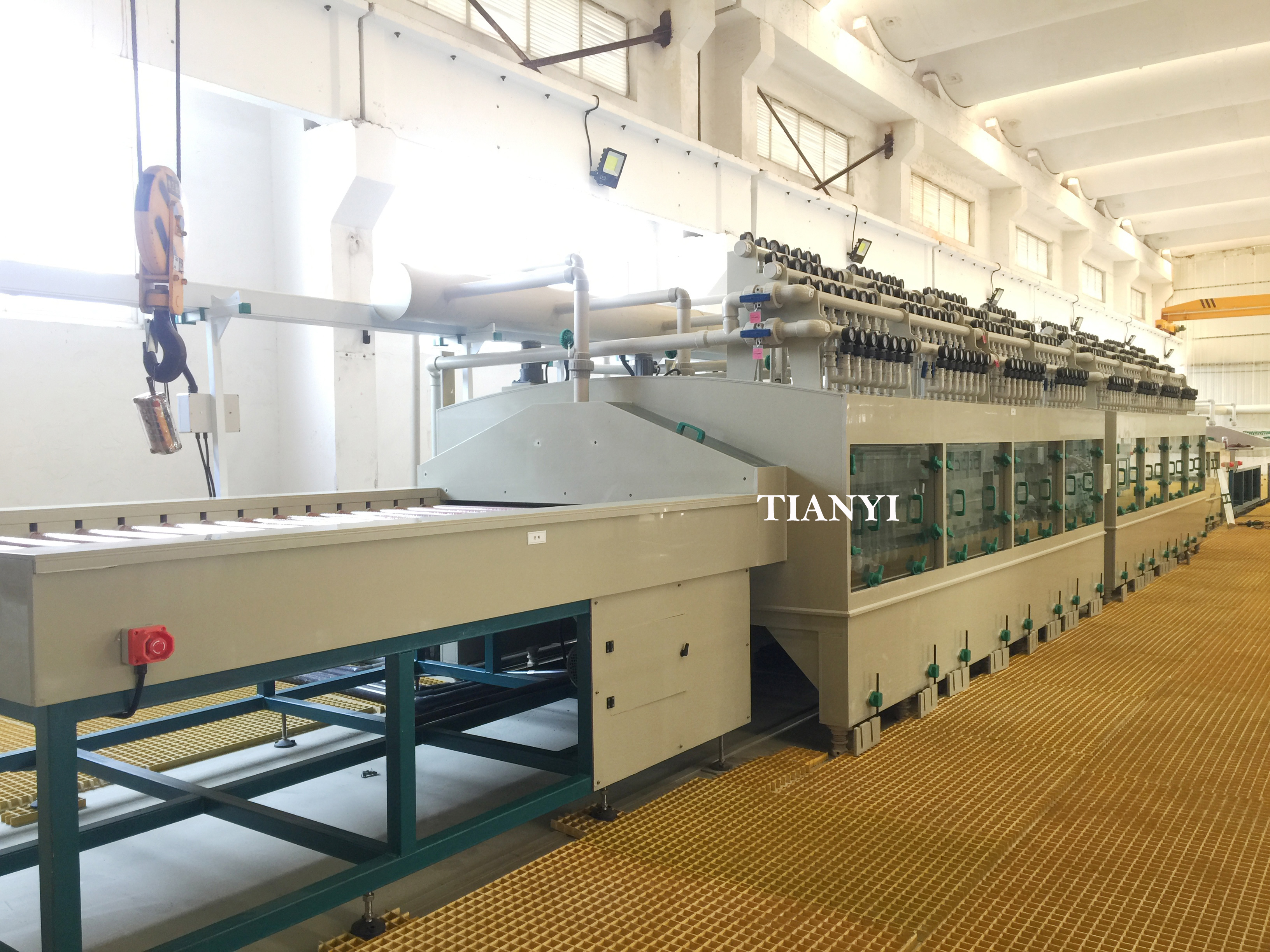

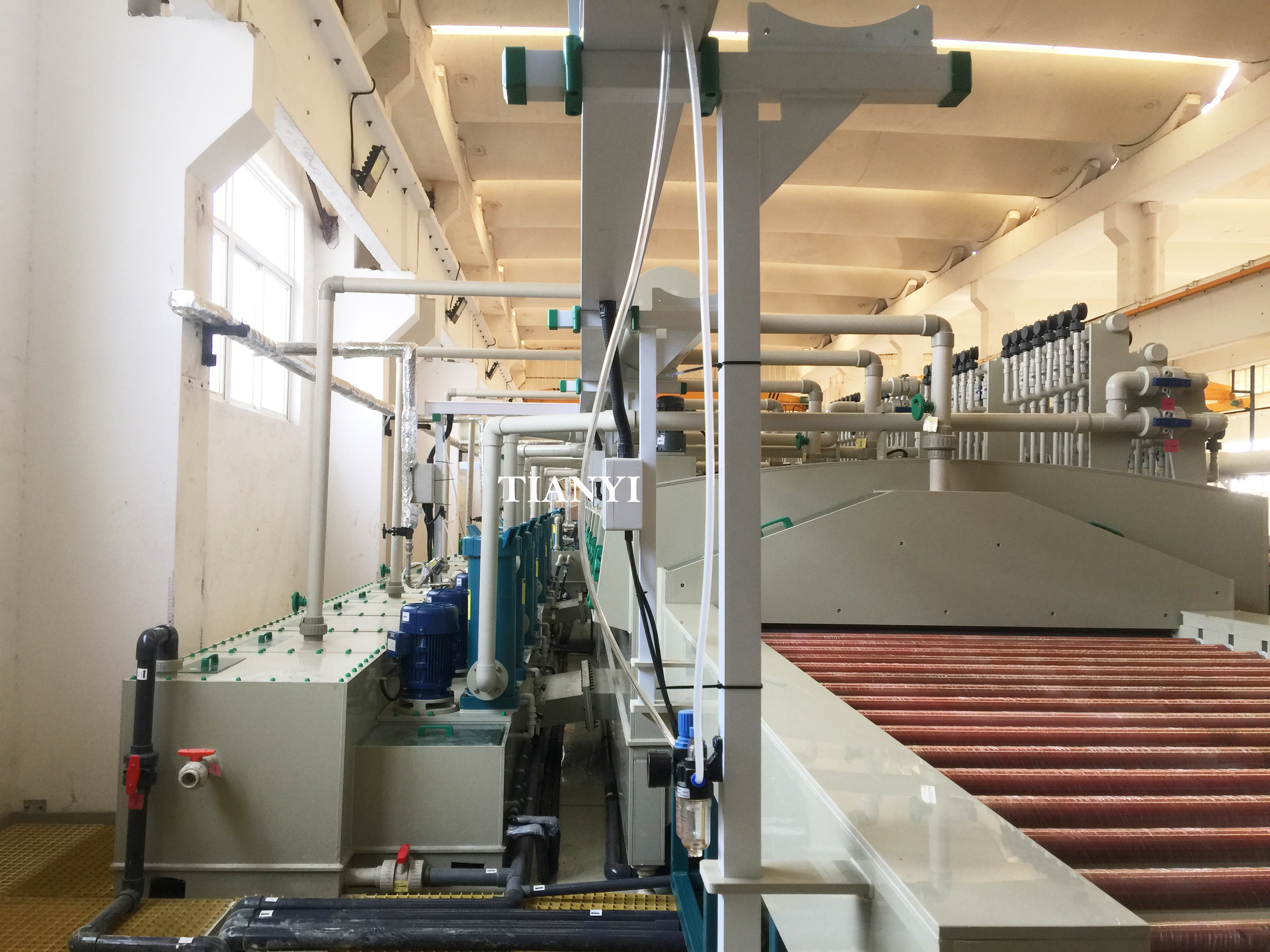

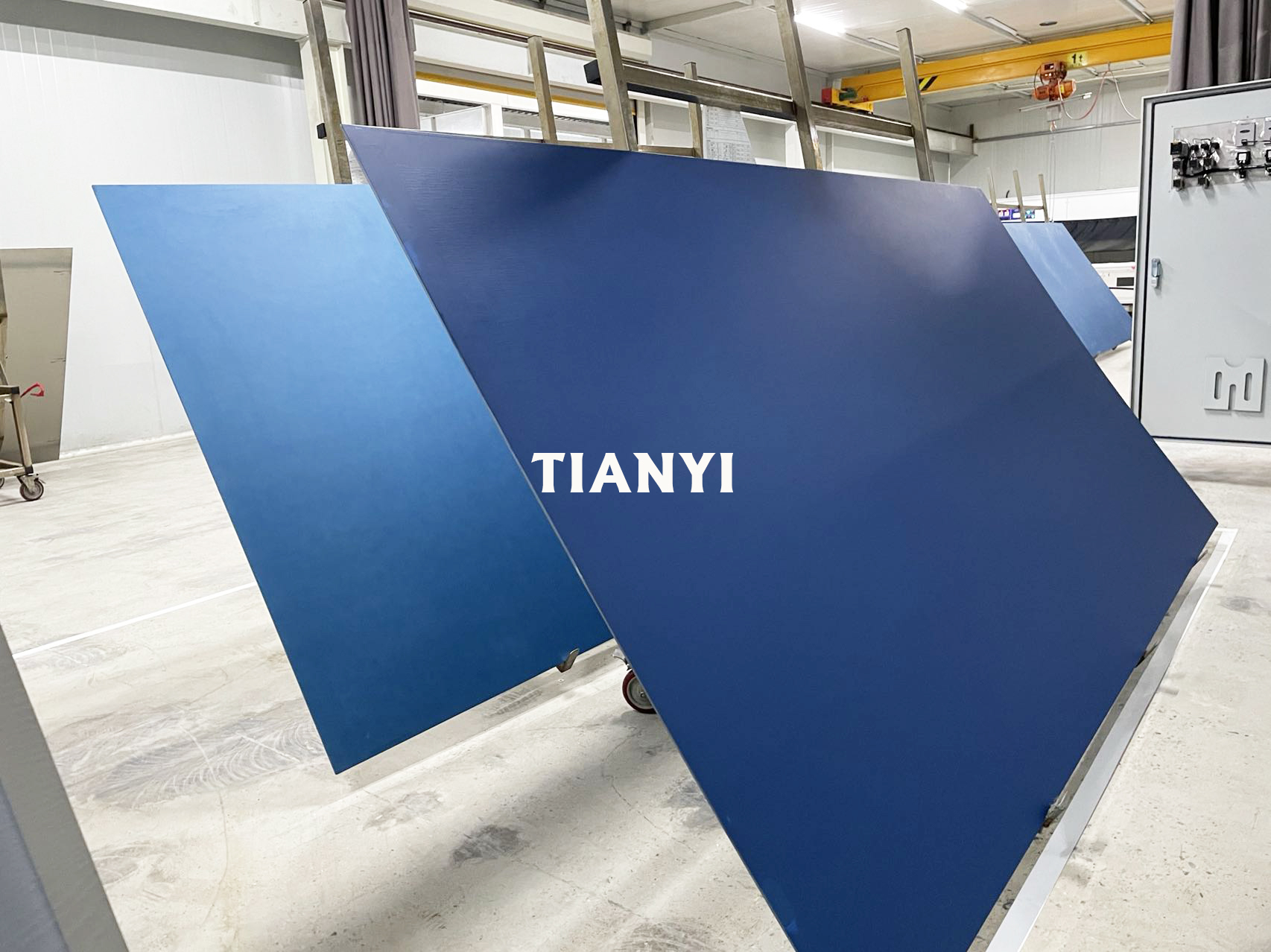

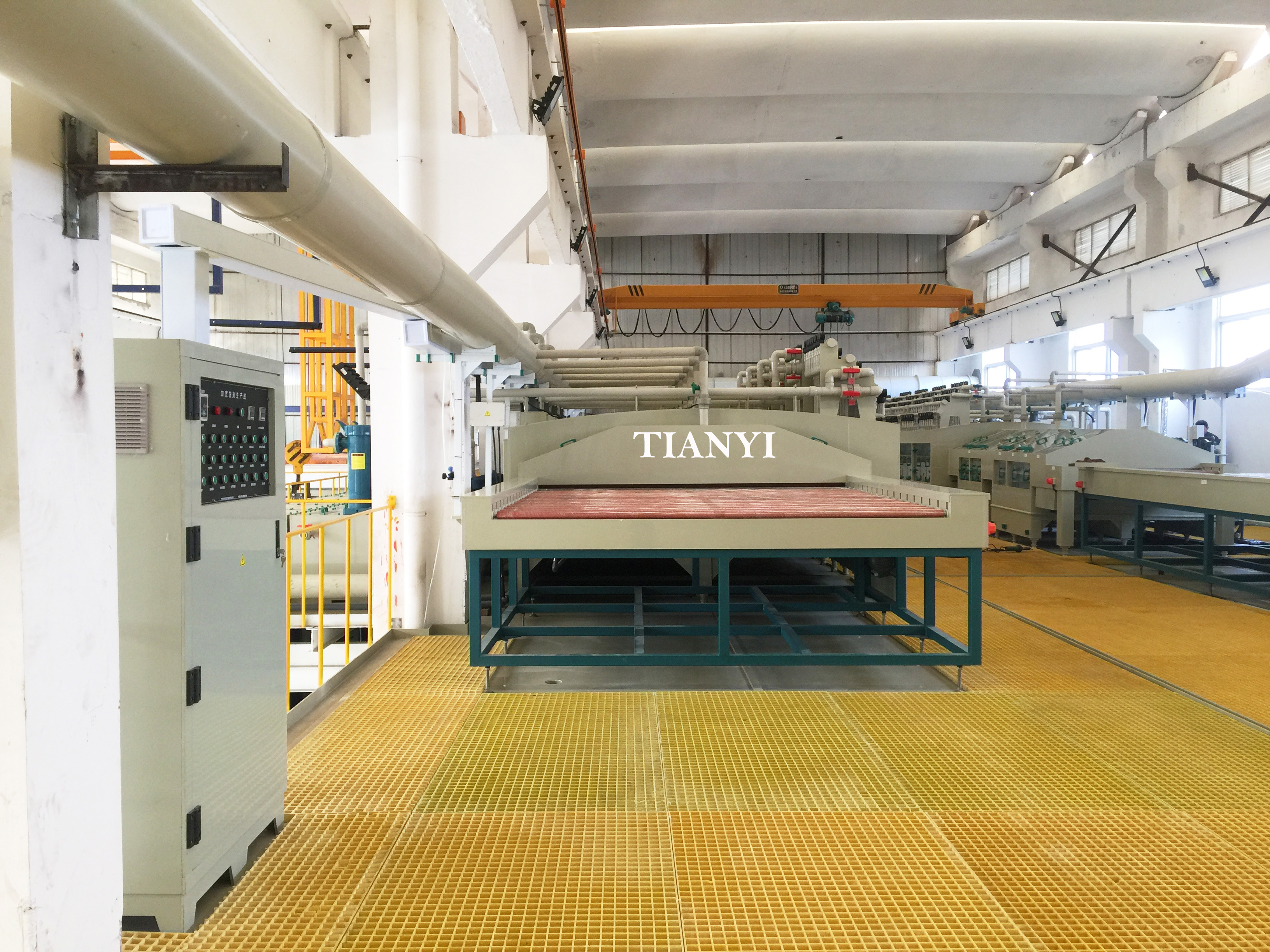

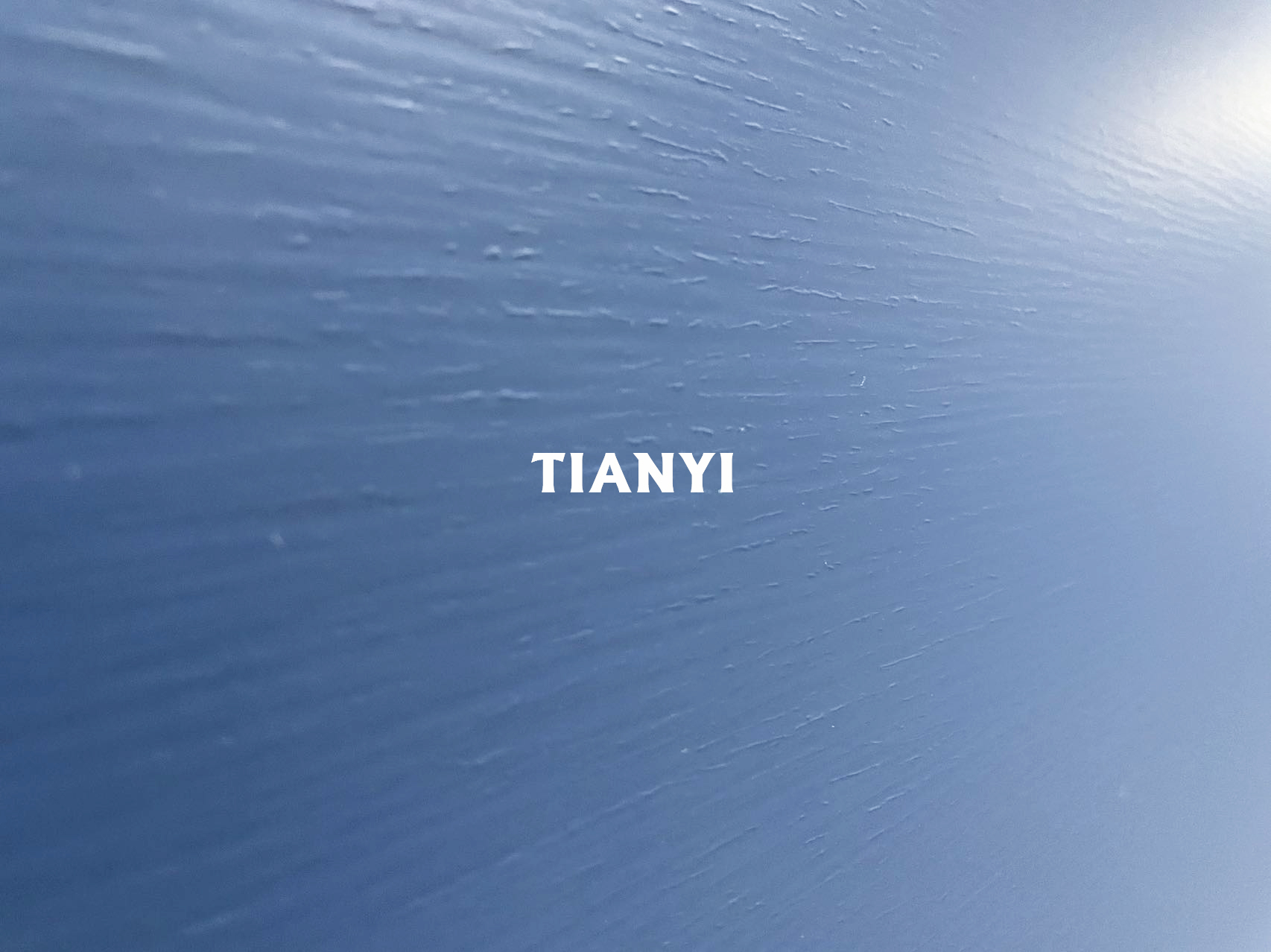

Effective etching spraying length is 8 meter, constructed with a corrosion-resistant body and advanced PP material, chemical etching machine assemble full pressure gauge for large quantity stainless steel press plate production. The etching depth could reach 30-35micros.

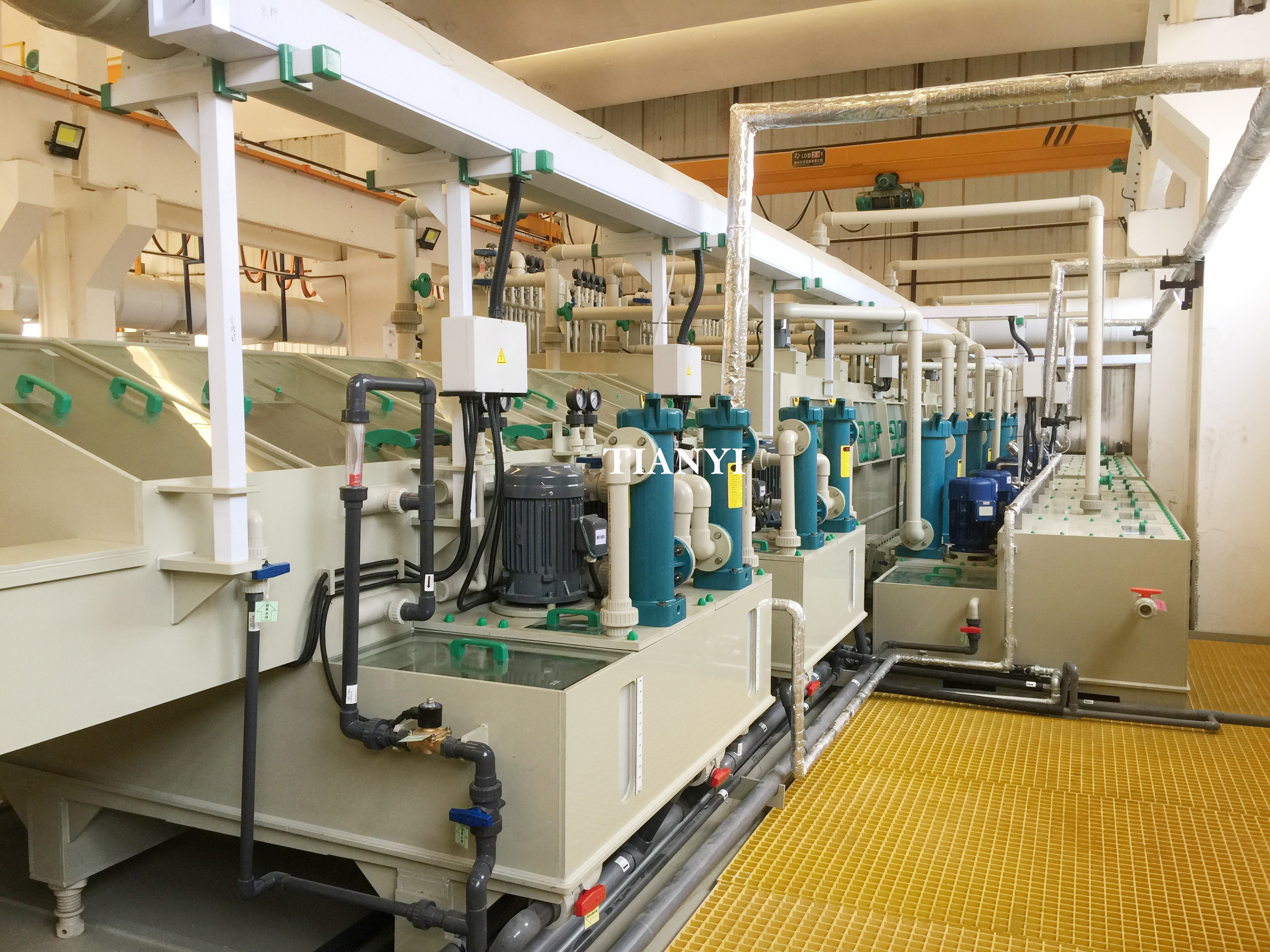

Etching machine is equipped with ferric chloride regeneration and recirculation system, it could continuously restores etching solution activity by oxidizing Fe²⁺ to Fe³⁺, maintaining stable etching speed and surface quality. It minimizes chemical consumption, reduces waste discharge, and ensures consistent, efficient, and environmentally friendly stainless steel etching performance.

No items found.

Specifications

Etching machine process includes Loading → Etching → Recycle washing (1/2/3/4) → DI water rinsing 1 → Squeezing → Inspection → Soak → Stripping→ Recycle washing (5/6/7/8) → DI water rinsing 2 → Squeezing → Cold blower → Hot air drying → Unloading

Dimension L24580xW4090xH2600MM

Effective working width 260mm

Etching heating/cooling Electric heating with cooling coil

Etching pump 10HP 8SET single side Etching

Total power consumption 221.7KW

Guarantee 1year

Optional Acid regeneration system; Cooling chiller;waste gas scrubber(acid fume treatment), ferric chloride regeneration and recirculation system

‍
