Copper Etching machine

Description

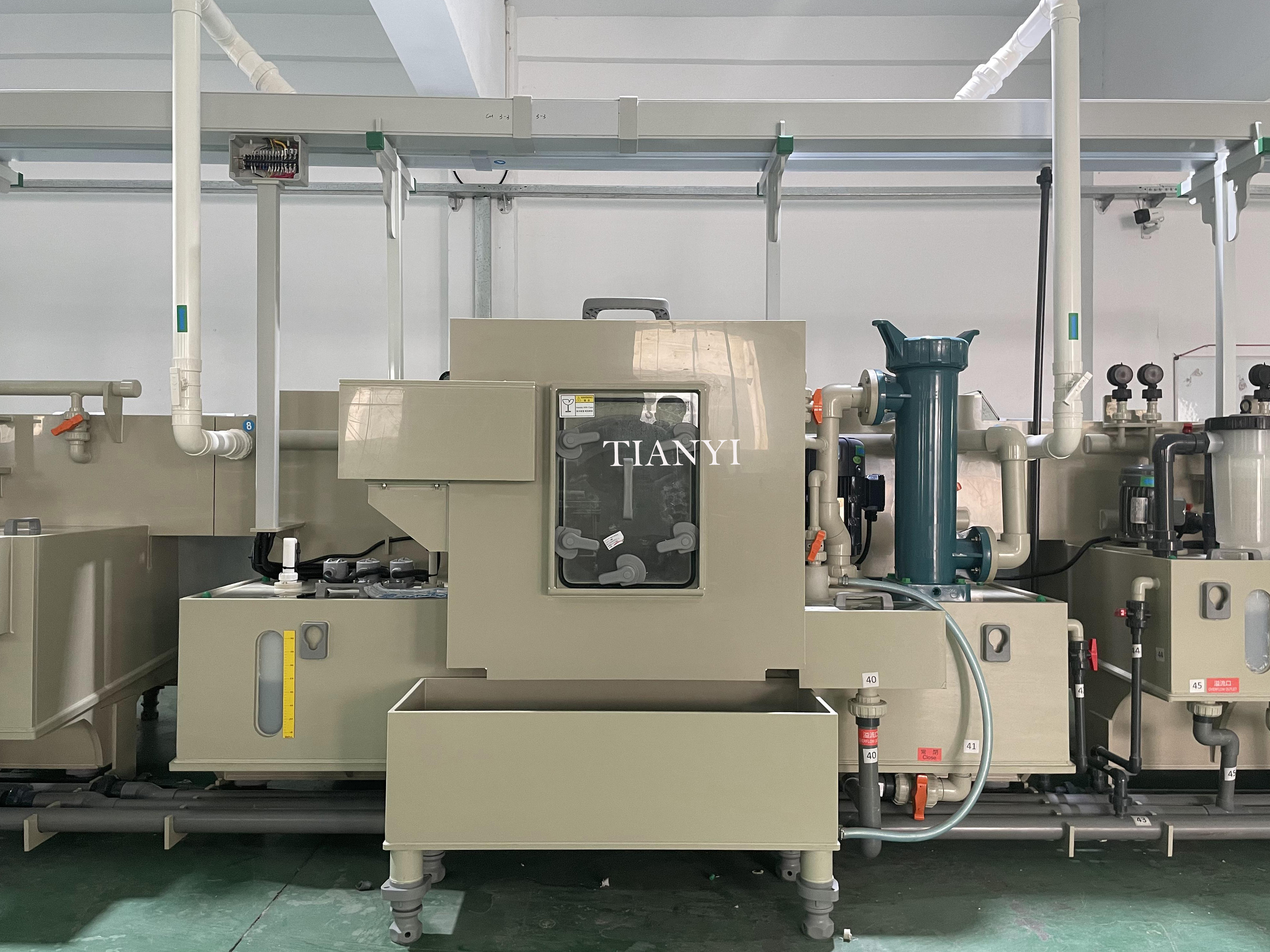

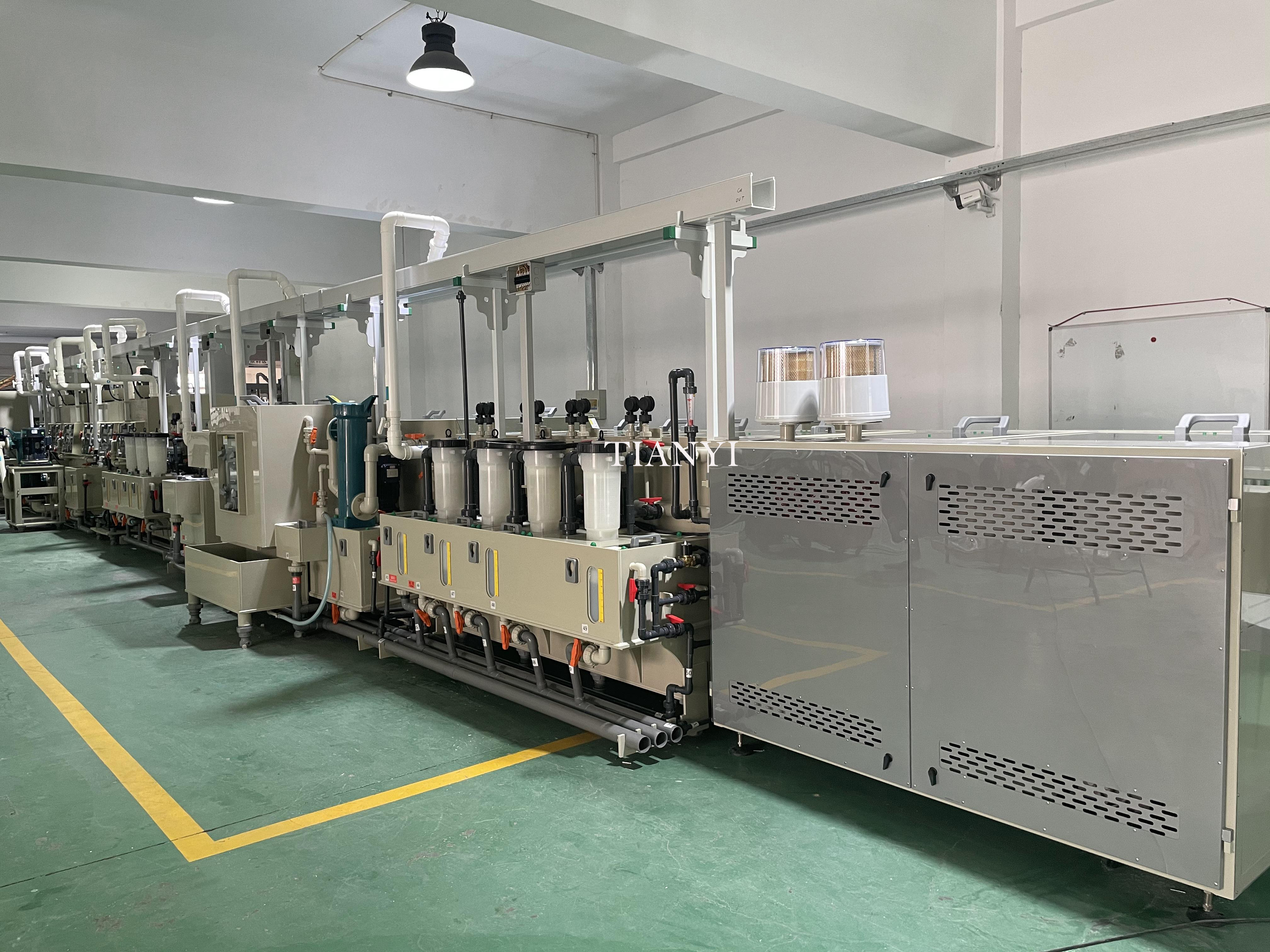

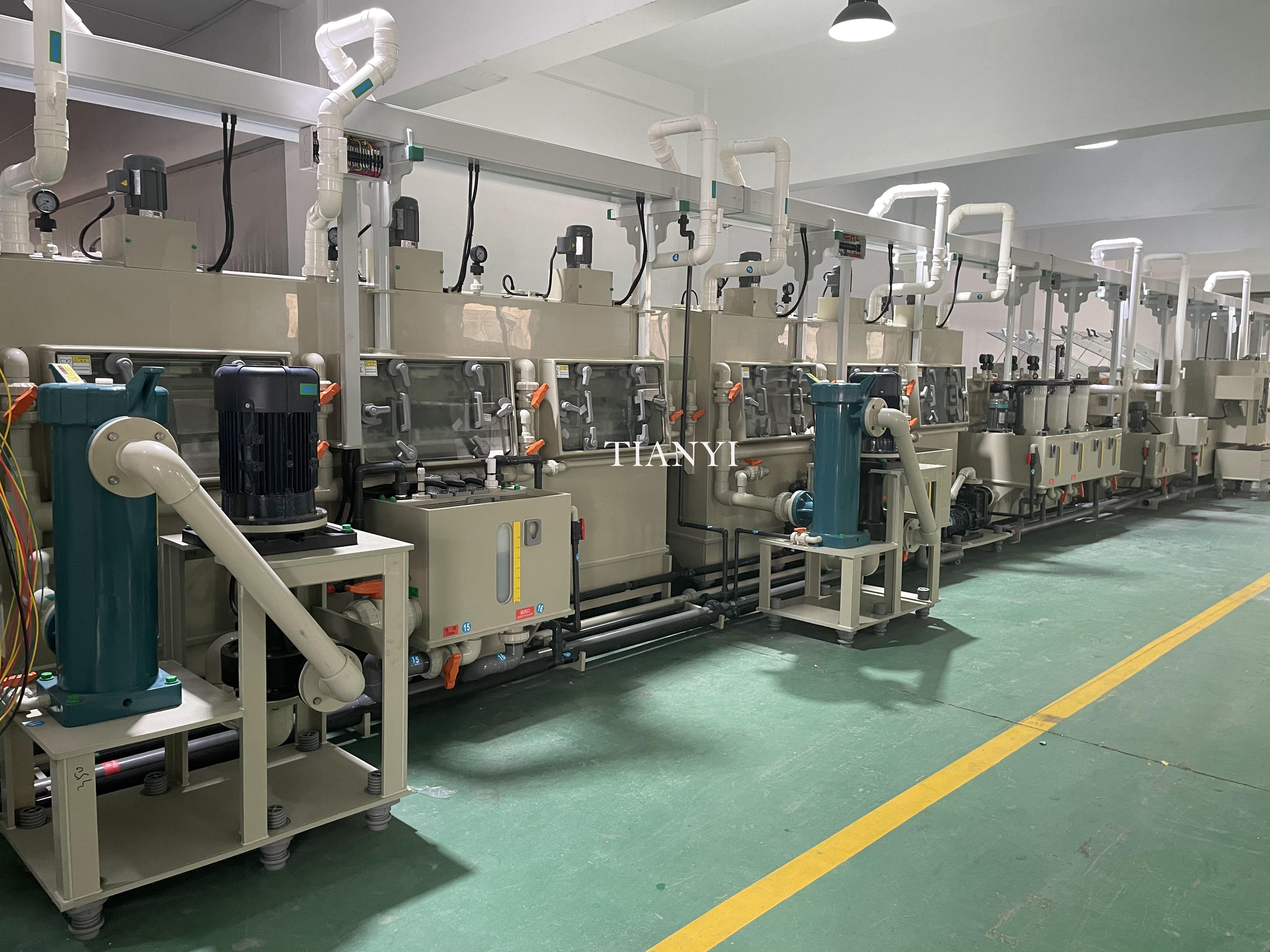

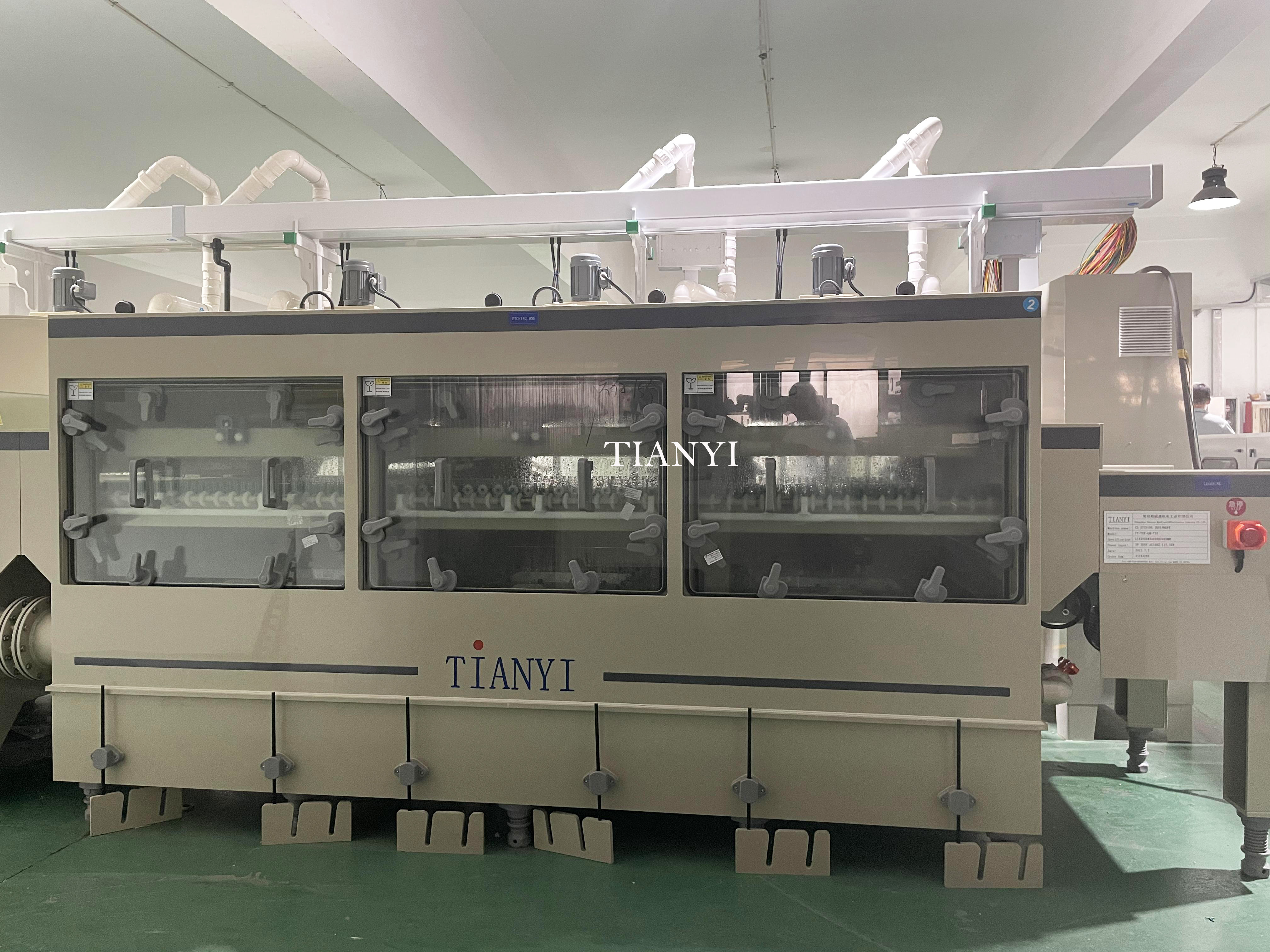

Copper Etching machine

‍

Etching machine is waiting for you.

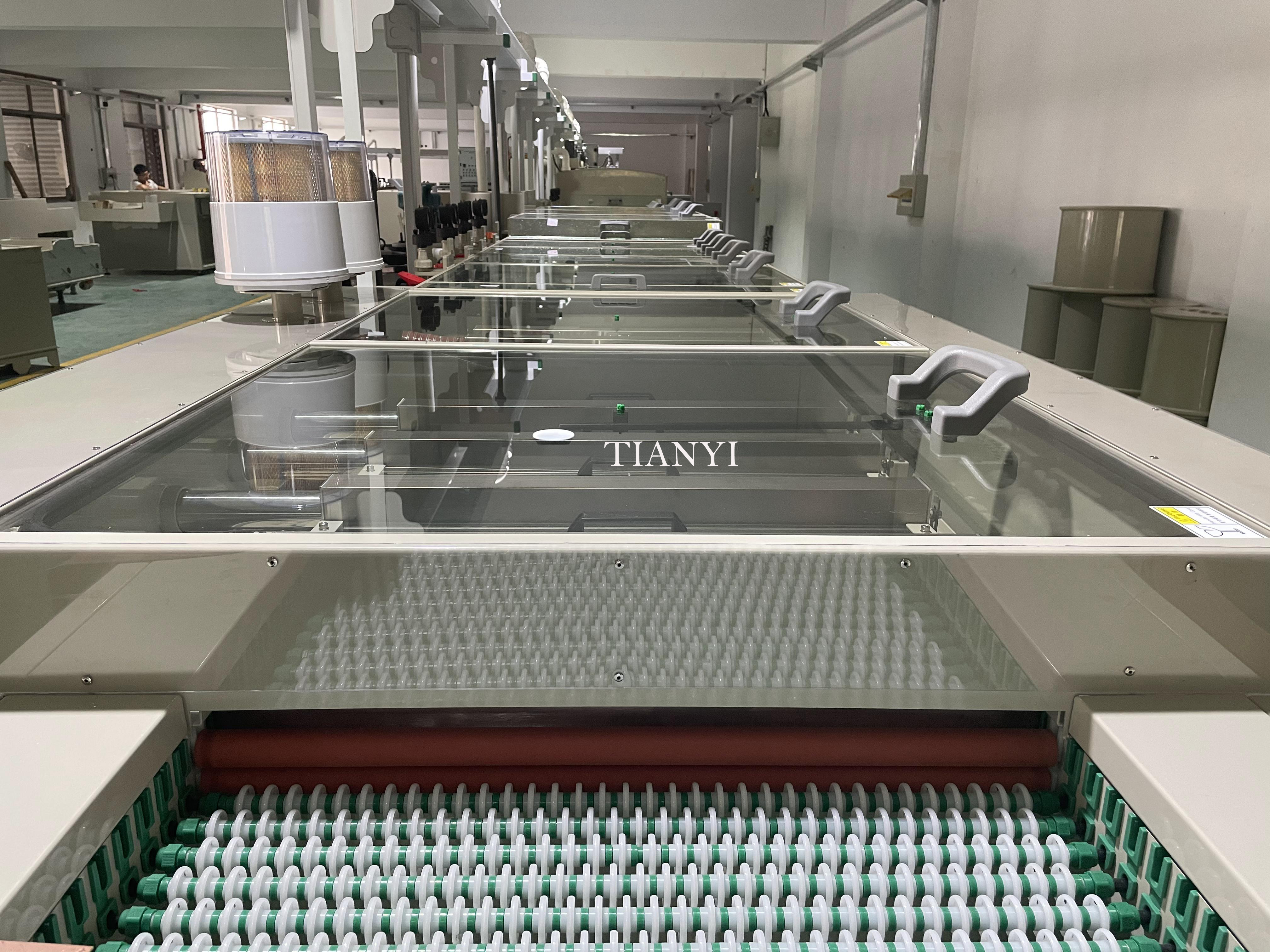

Effective etching spraying length is 6 meter, constructed with a corrosion-resistant body and advanced PP material. It could achieve 2-2.5meter/min working speed for copper etching production.

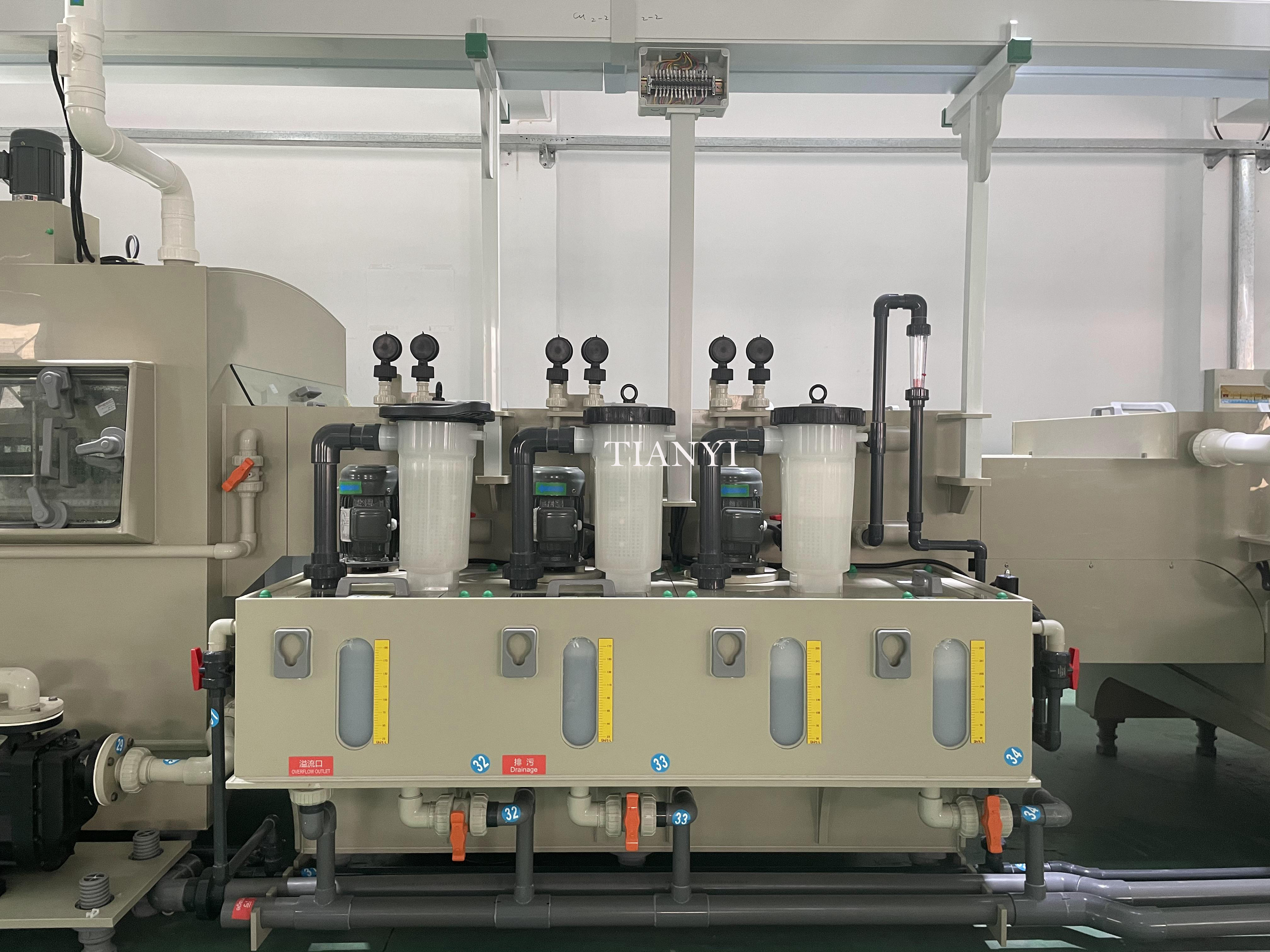

Equipped with an acid regeneration system to ensure precise concentration control and stable performance for batch etching production.

No items found.

Specifications

Etching machine process includes Loading → Etching → Recycle washing (1/2/3) → DI water rinsing → Squeezing → Inspection → Soak → Stripping → Recycle washing(4/5/6/7) → DI water rinsing → Squeezing → Cold blower → Hot air drying → Unloading

Dimension L18,200xW2400xH2460MM

Effective working width 750mm

Etching heating/cooling Electric heating with cooling coil

Etching pump 7.5HP 6SET double side Etching

Total power consumption 117.3KW

Guarantee 1year

Optional Acid regeneration system; Cooling chiller;waste gas scrubber(acid fume treatment)
