Double side Film stripping Machine for Aluminum

Description

Double side Film stripping Machine for Aluminum

‍

Stripping machine is waiting for you.

Constructed with a corrosion-resistant body and advanced PP material, double side stripping machine for aluminum metal.

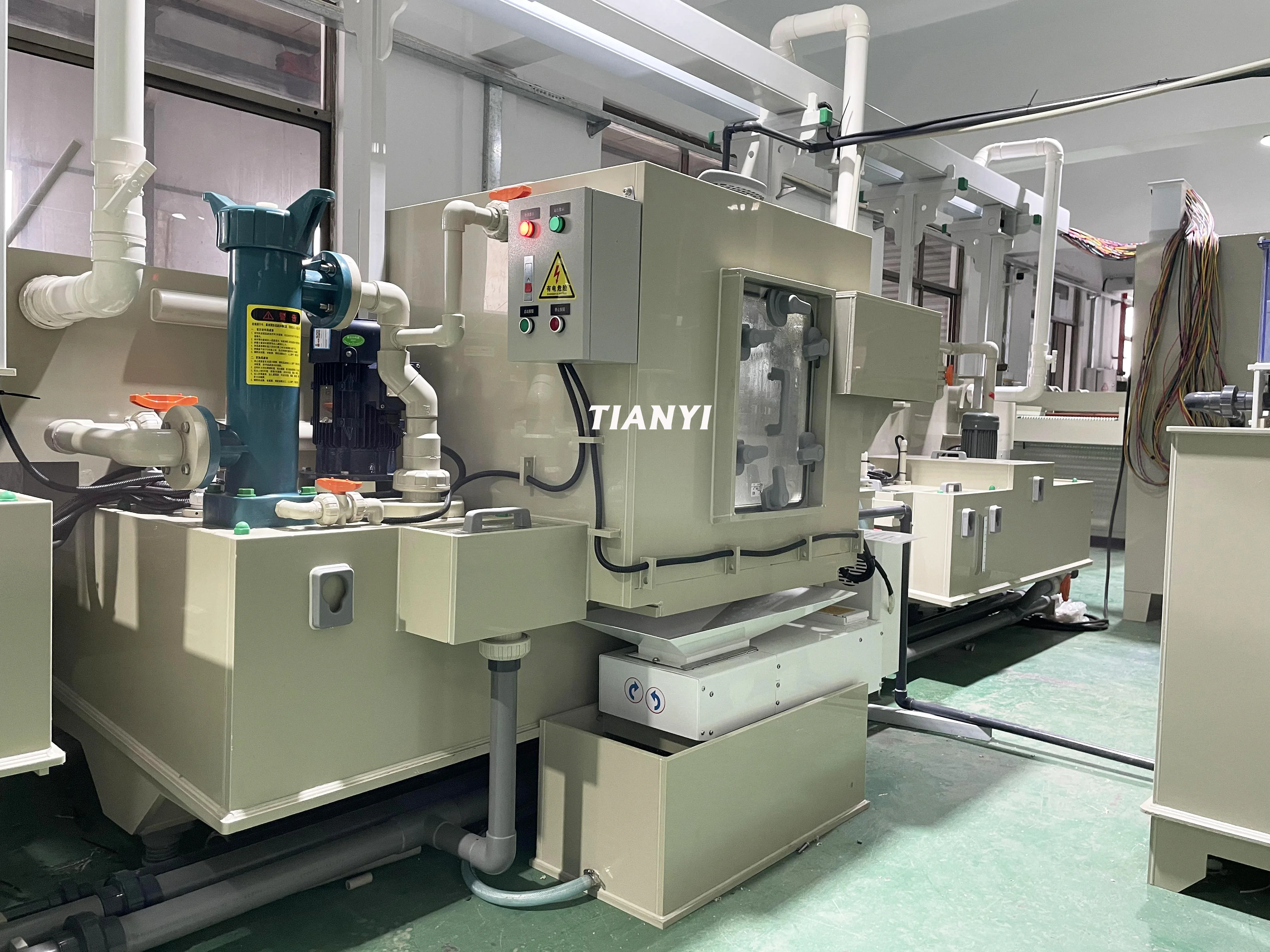

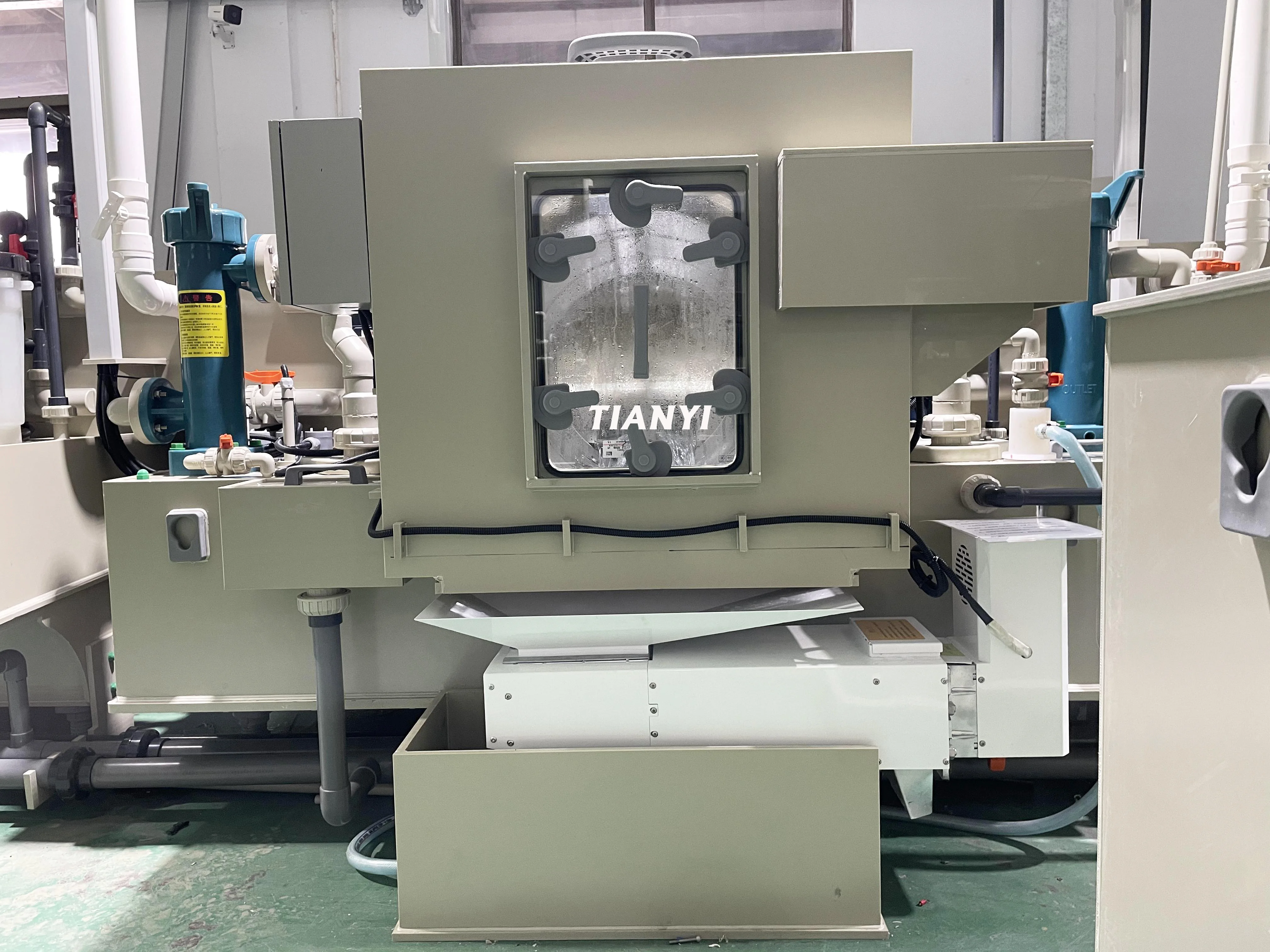

Stripping module assemble film separator and slag dryer. The film separator efficiently filters and separates ink residues and copper particles from the process solution.

The separated sludge settles into the bottom tray. The slag dryer working for drying the wet sludge into solid powder for easy collection and disposal.

This system keeps the solution clean and stable, extends its service life, and reduces maintenance frequency.

No items found.

Specifications

Stripping machine process includes Loading → Soak → Stripping → Recycle water1/2 → DI water washing → Squeezing → Cold blower → Hot air drying → Unloading

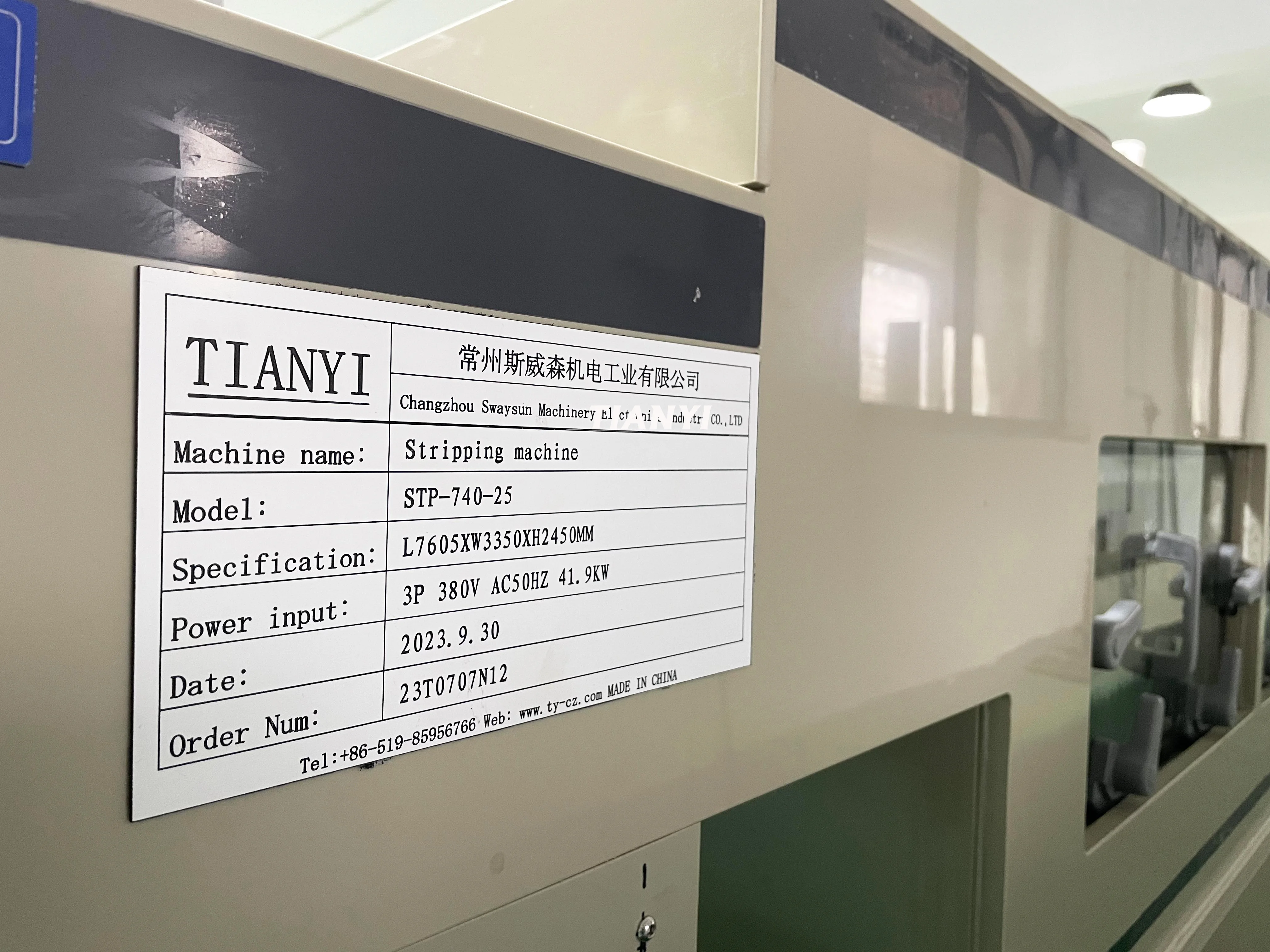

Dimension L7605xW3350xH2450MM

Effective working width 740mm

Stripping heating/cooling Electric heating with cooling coil

Stripping pump 7.5HP 1SET double side Stripping

Total power consumption 41.9W

Optional NAOH auto dosing system; Cooling chiller; waste gas scrubber(acid fume treatment); Slag dryer
