Frosting etching machine for pattern glass

Description

Frosting etching machine for pattern glass

‍

Etching machine is waiting for you.

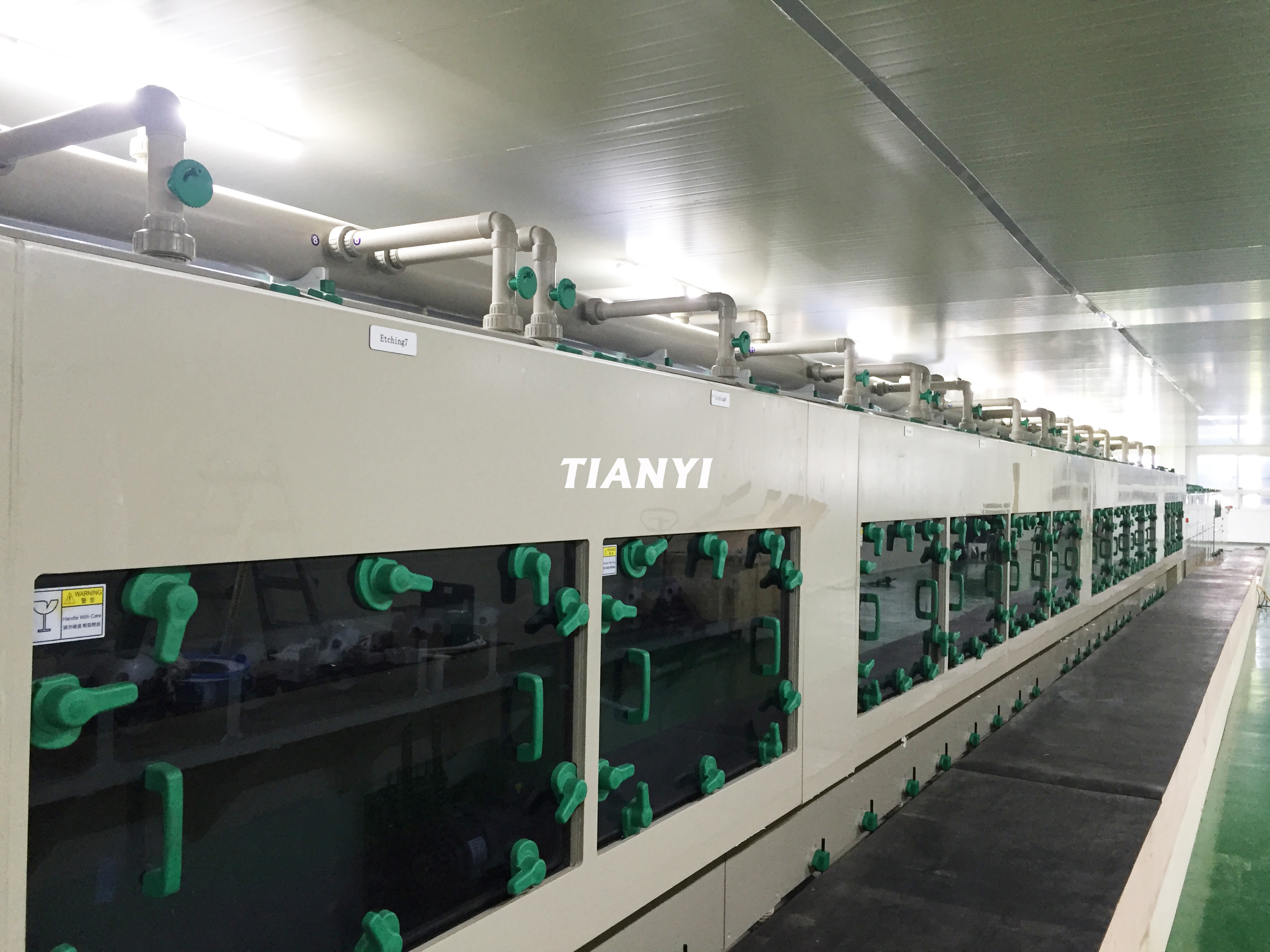

Frosted glass etching is carried out using a hydrofluoric acid-based chemical solution. The etching line is equipped with an automatic glass loader and unloader at the entry and exit sections. For patterned glass processing, a silk screen printing unit and drying oven can be integrated prior to the etching stage.

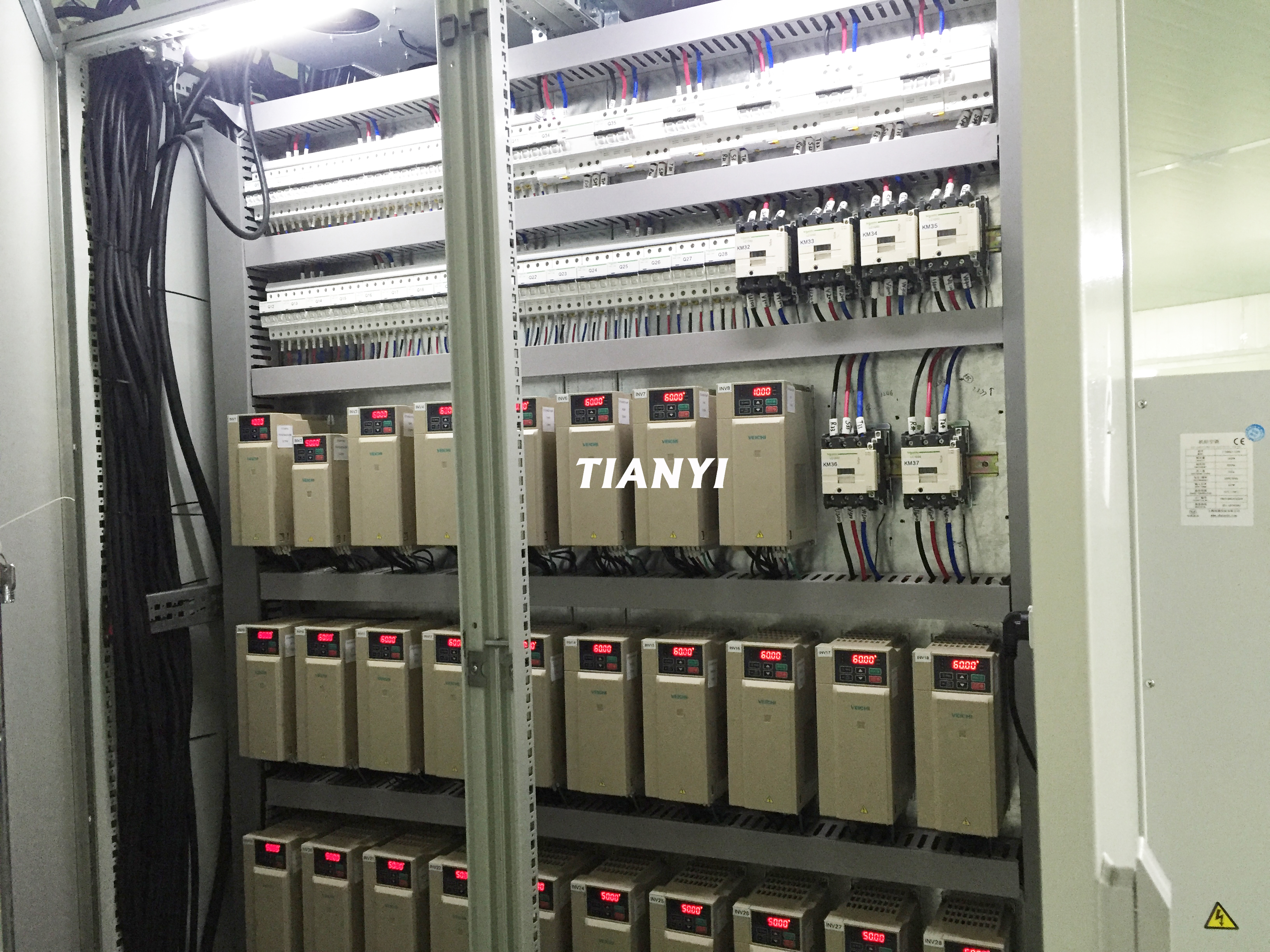

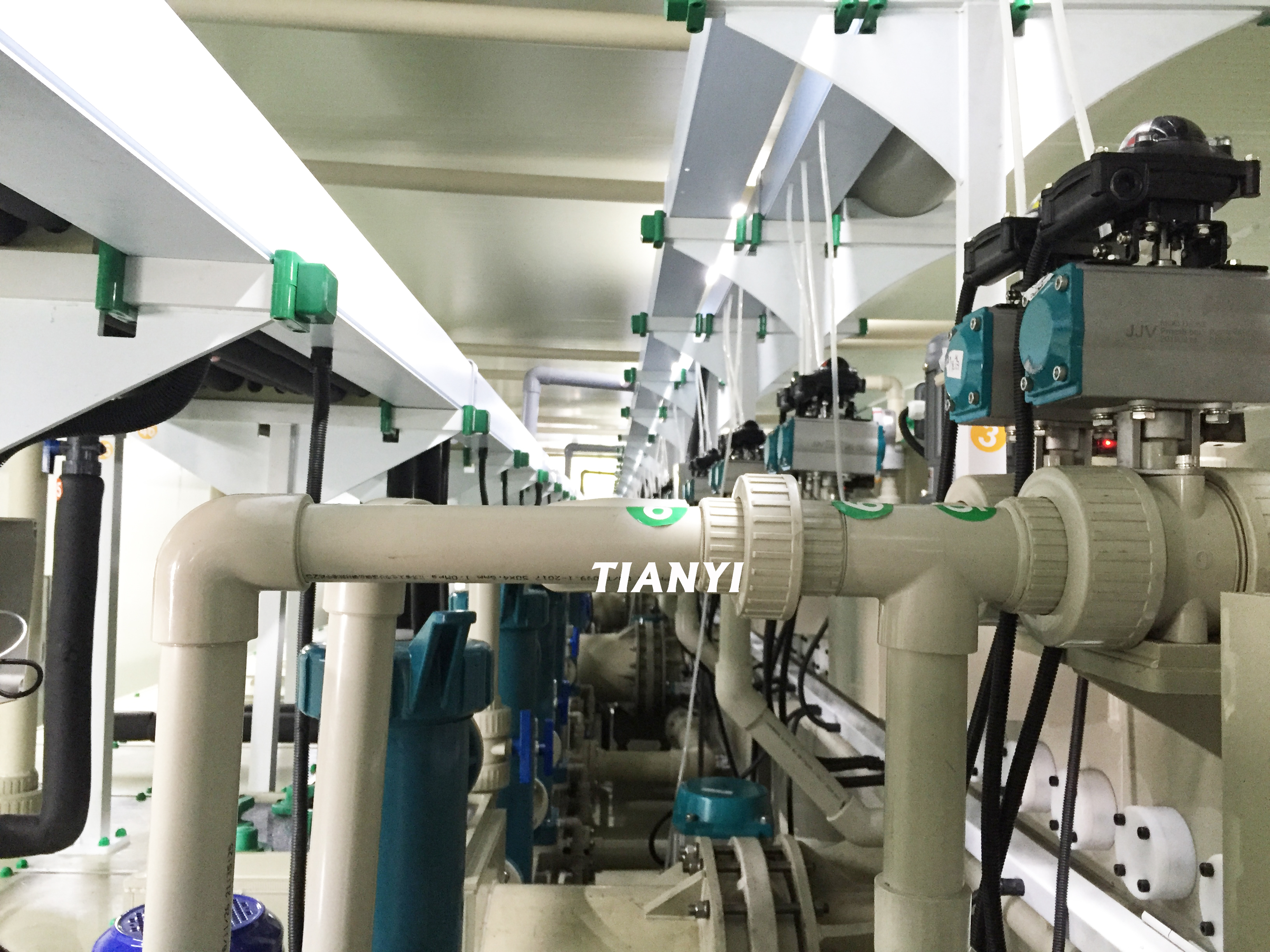

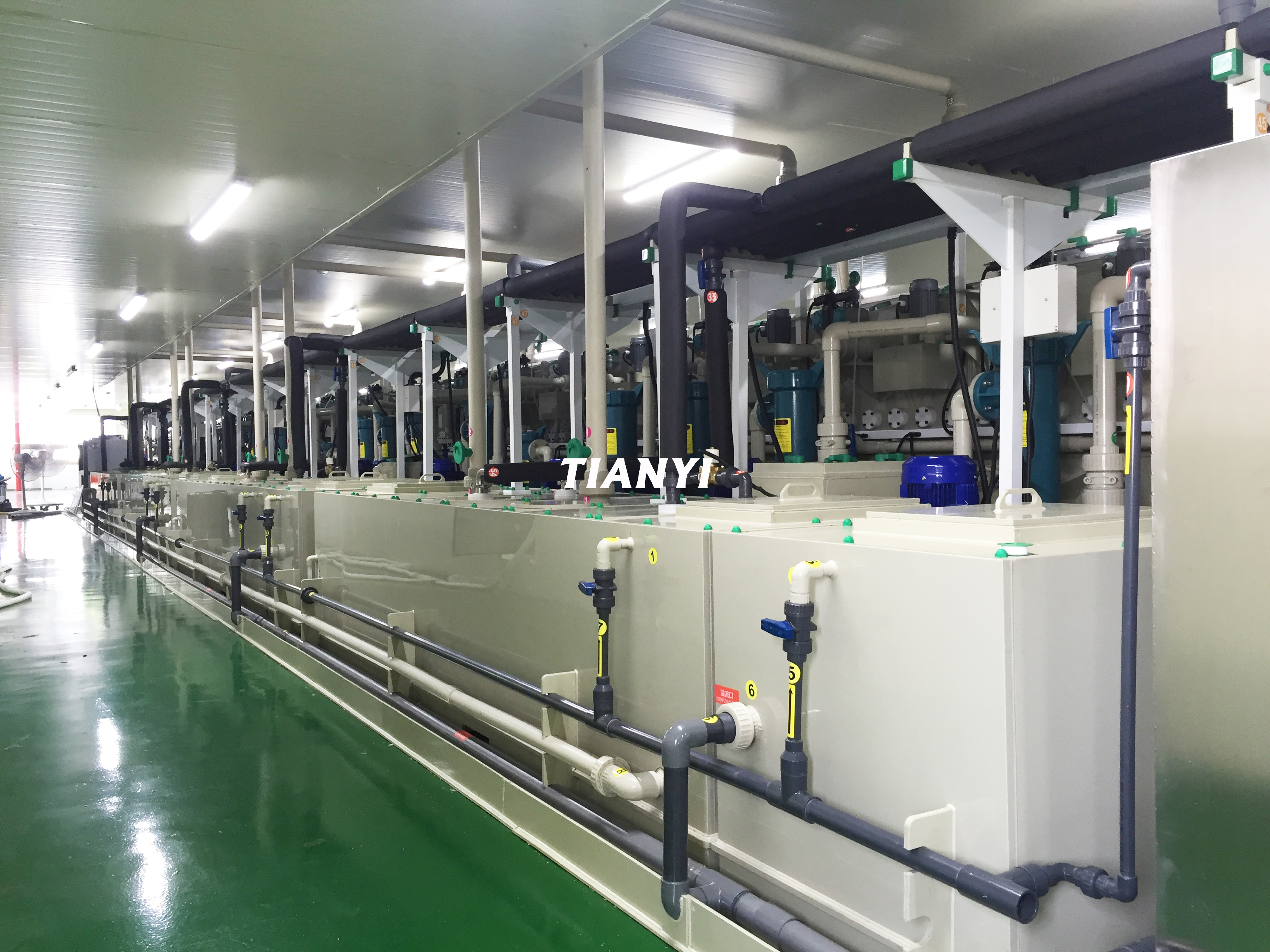

Constructed with a corrosion-resistant body and advanced PP material. The electrical cabinet is a Rittal enclosure with integrated air conditioning, rated at IP55. The etching pump is equipped with VFD control to ensure precise regulation of etching pressure. A dedicated tank cleaning system is automatically activated when the machine stops, operated through pneumatic valve control.

No items found.

Specifications

Etching machine process includes Loading → Frosting Etching → Recycle washing (1/2/3) → DI water washing → Squeezing → Inspection → Soak → Stripping 1 → Stripping 2 → Recycle washing (4/5/6) → DI water washing → Squeezing → Cold blower → Hot air drying → Unloading

Dimension L37,200xW5,090xH2,600MM

Effective working width 1500mm

Etching heating/cooling Electric heating with cooling coil

Etching pump 7.5HP 16SET Double side Etching

Total power consumption 395KW

Guarantee 1year

Optional Acid regeneration system; Cooling chiller;waste gas scrubber(acid fume treatment)
