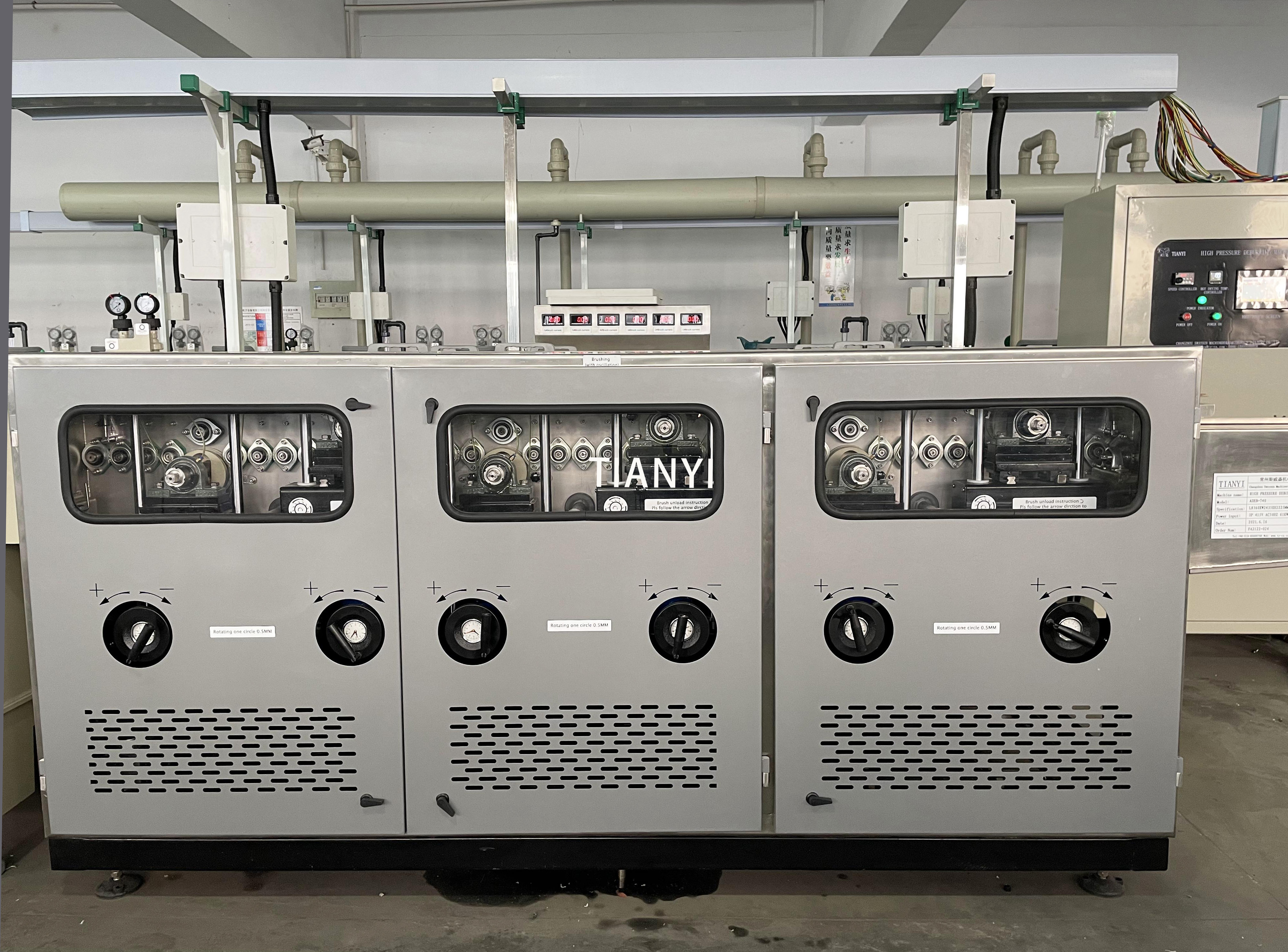

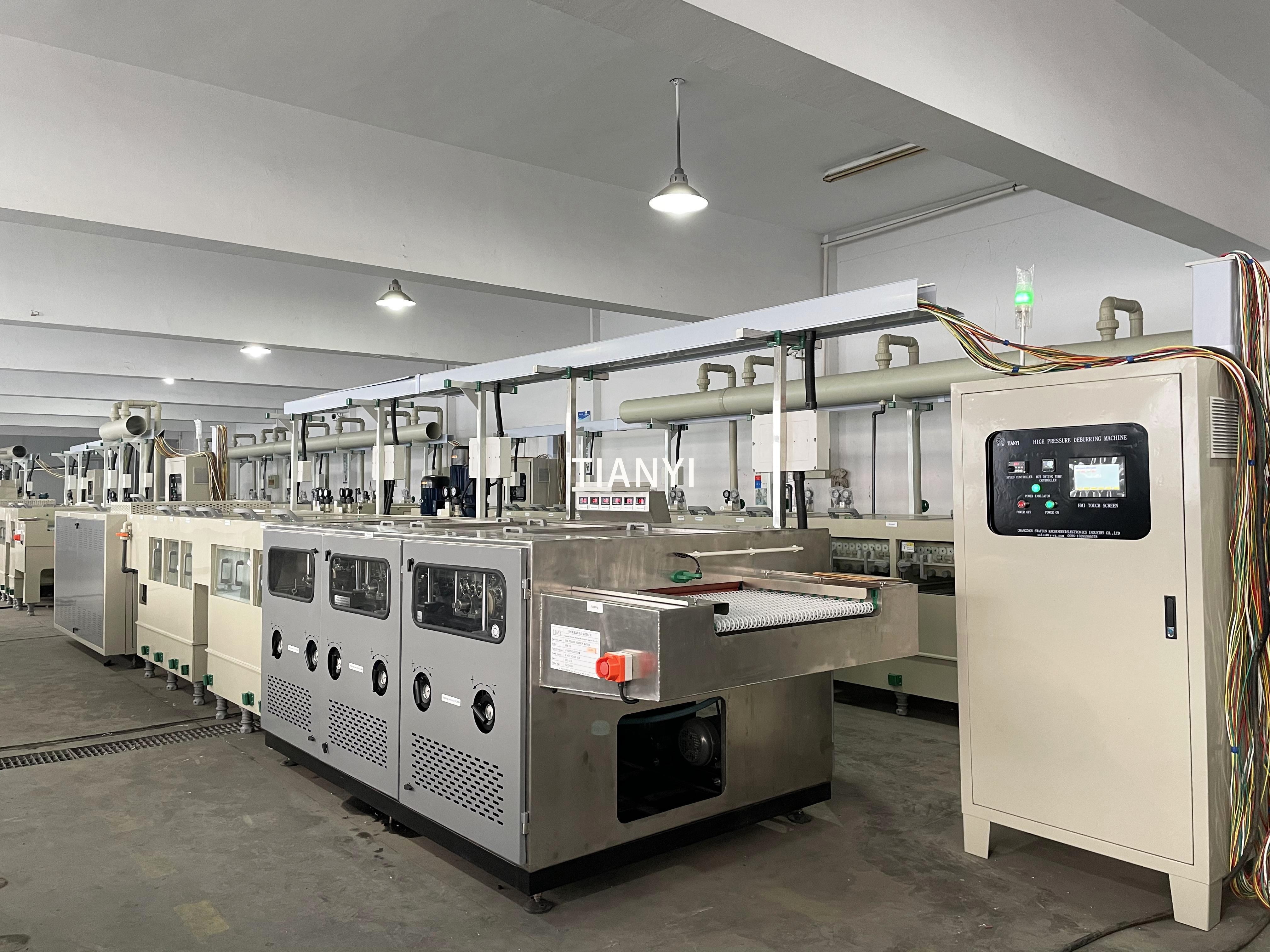

High pressure PCB deburring machine

Description

PCB wet processmachine is waiting for you.

PCB deburring machine removes sharp edges and tiny burrs from circuit boards after cutting,CNC drilling, or routing.

It is constructed with a robust stainless steel frame, other plastic part made of PVC sheets for excellent corrosion resistance.

High pressure spraying pipe made of stainless steel, max spraying pressure 710PSI(Nanfanghigh pressue pump). Equipped with copper recovery unit for copper collection.

No items found.

Specifications

Brushing machine process includes Loading → Brushing → Recycle water washing(1/2) → DI water washing → Squeezing → Cold blower → Unloading

Dimension L8360xW2435xH2225MM

Effective working width 740mm

Brushing heating/cooling None

Brushing motor 1.1KW 6SET with 200W 6SET Oscillation motor

Total power consumption 61KW

Guarantee 1year

Optional Auto loader and Unloader, copper recovery unit
