Metal etching machine for Die cutter, Die cutting mold

Description

Metal etching machine for Die cutter, Die cutting mold

‍

Etching machine is waiting for you.

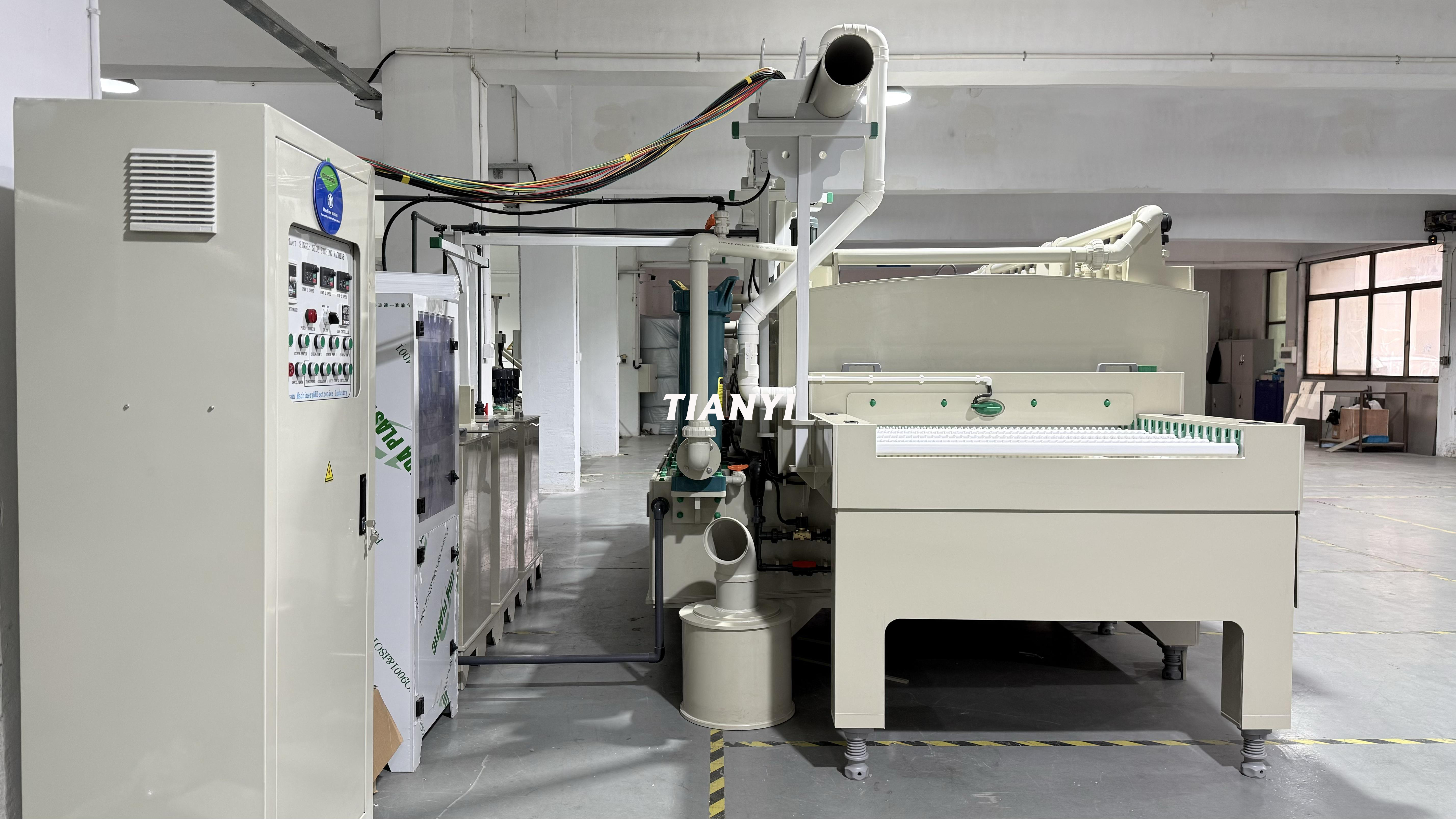

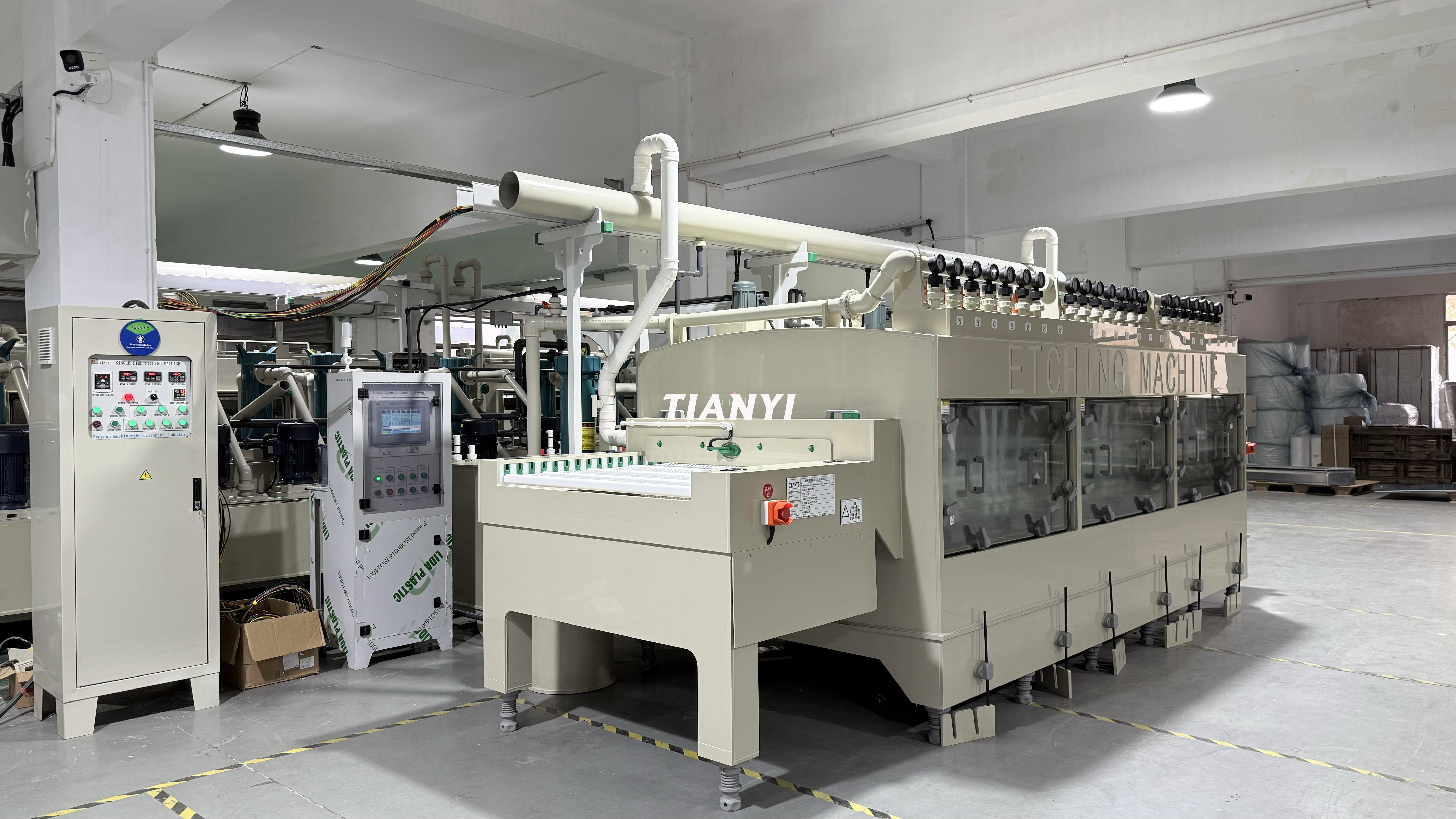

Effective etching spraying length is 3 meter, constructed with a corrosion-resistant body and advanced PP material, Metal etching machine assemble full pressure gauge for medium precise etching production.VFD Etching pump assemble which could fine tuning of etching uniformity depending on the material thickness and required etch depth by adjusting pump speed precisely to regulate solution flow and pressure.

Etching machine is equipped with acid regeneration system for better chemical concentration control, convenient in actual operation.For space saving, the process flow is : Loading, Etching, Squeezing, Unloading, the water washing module is optional.

No items found.

Specifications

Etching machine process includes Loading → Etching → Squeezing → Unloading

Dimension L5200xW2215xH2600MM

Effective working width 1100mm

Etching heating/cooling Electric heating with cooling coil

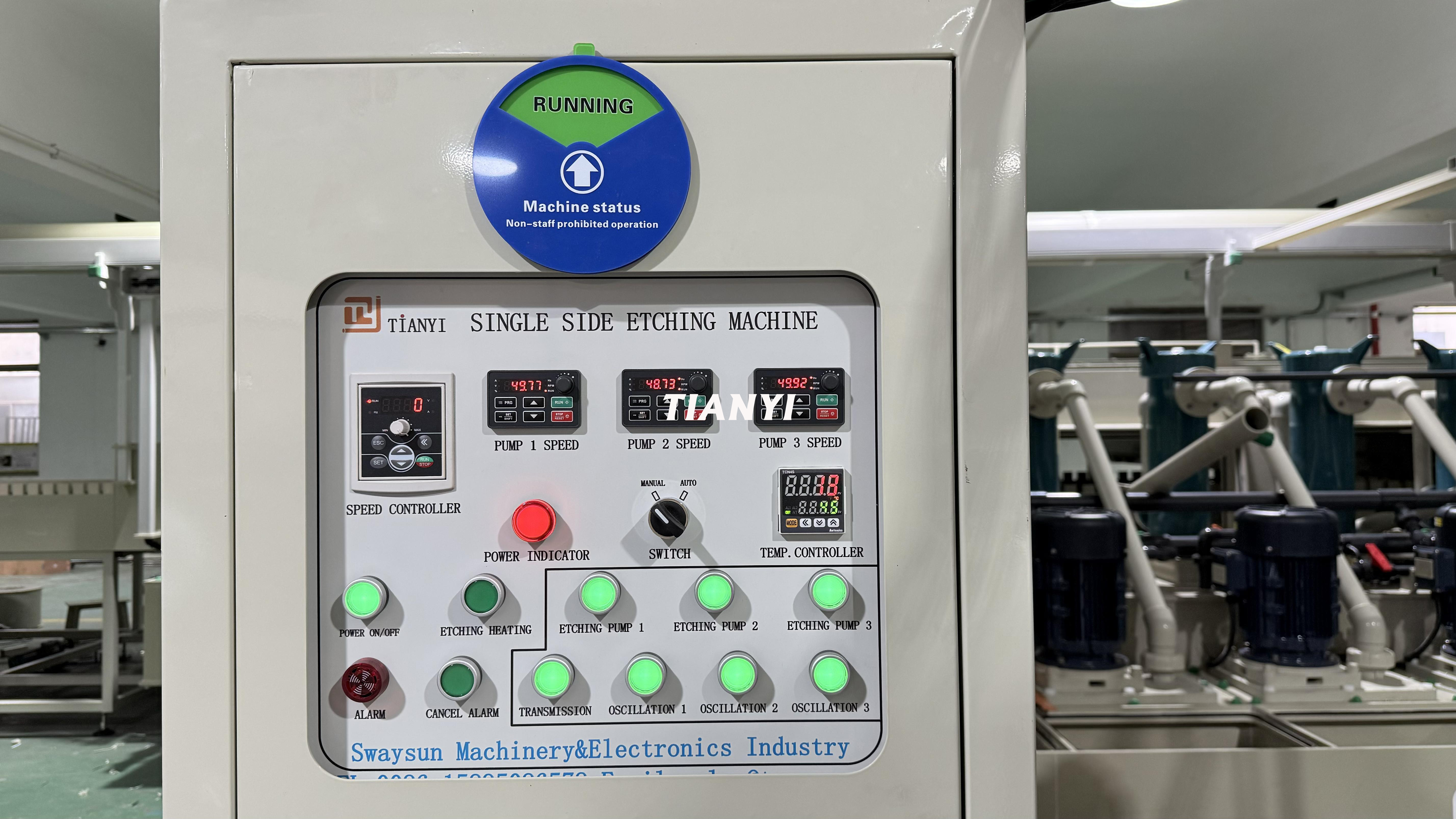

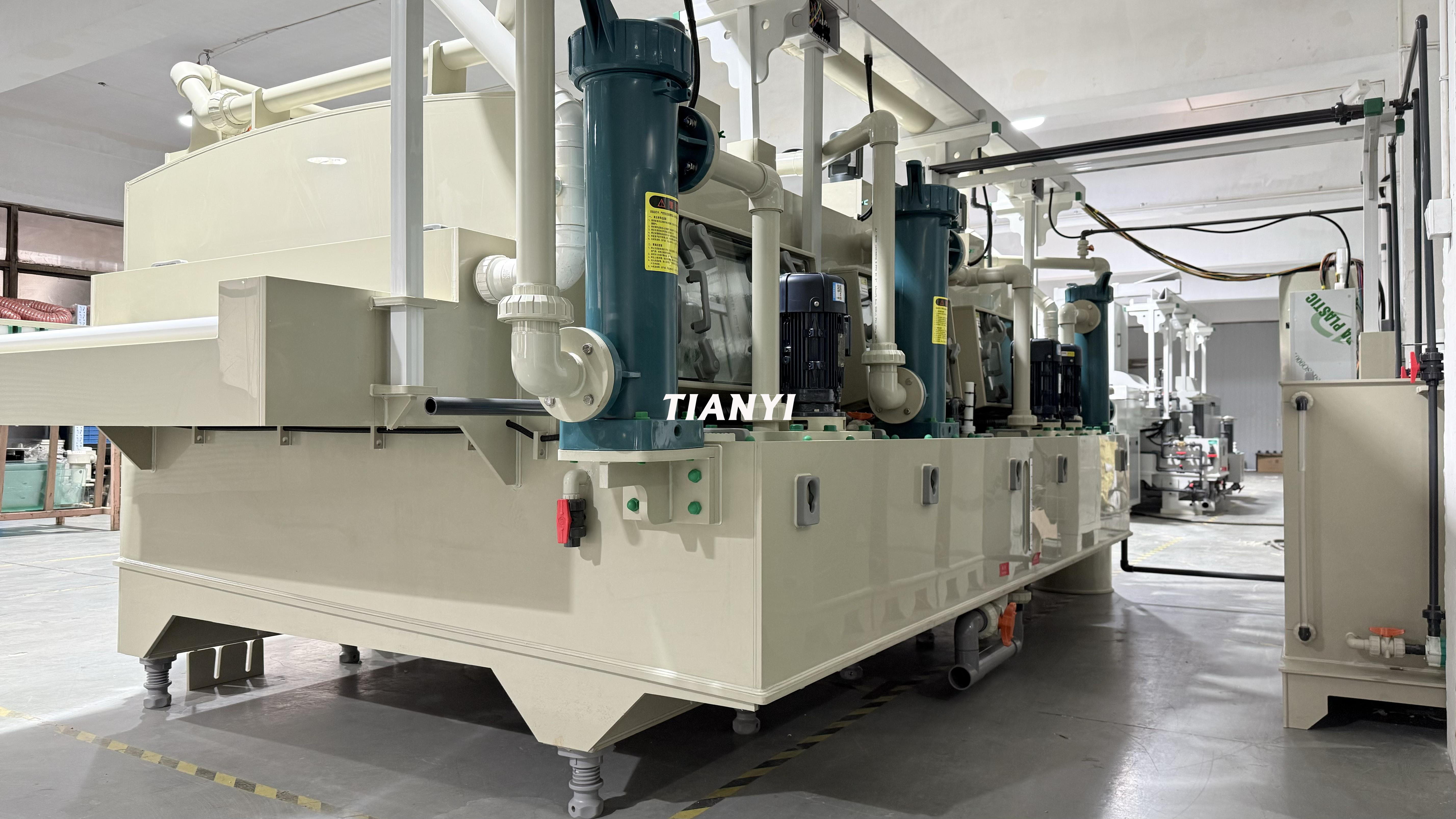

Etching pump 7.5HP 2SET with frequency driver, single side Etching

Total power consumption 26.9KW

Guarantee 1year

Optional Acid regeneration system; Cooling chiller; waste gas scrubber(acid fume treatment)
