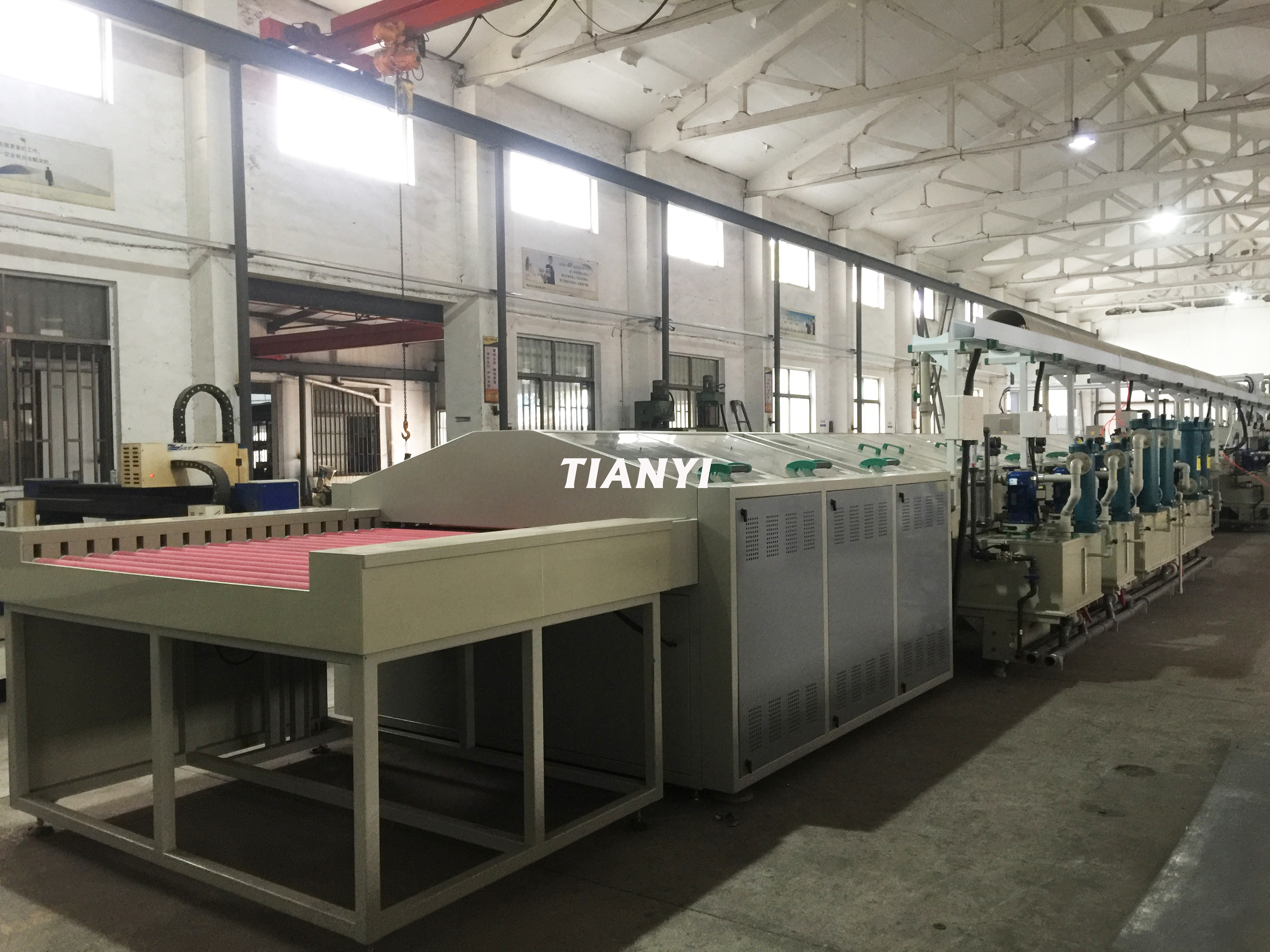

Metal Etching machine for stainless steel sheet cookware

Description

Metal Etching machine for stainless steel sheet cookware

‍

Etching machine is waiting for you.

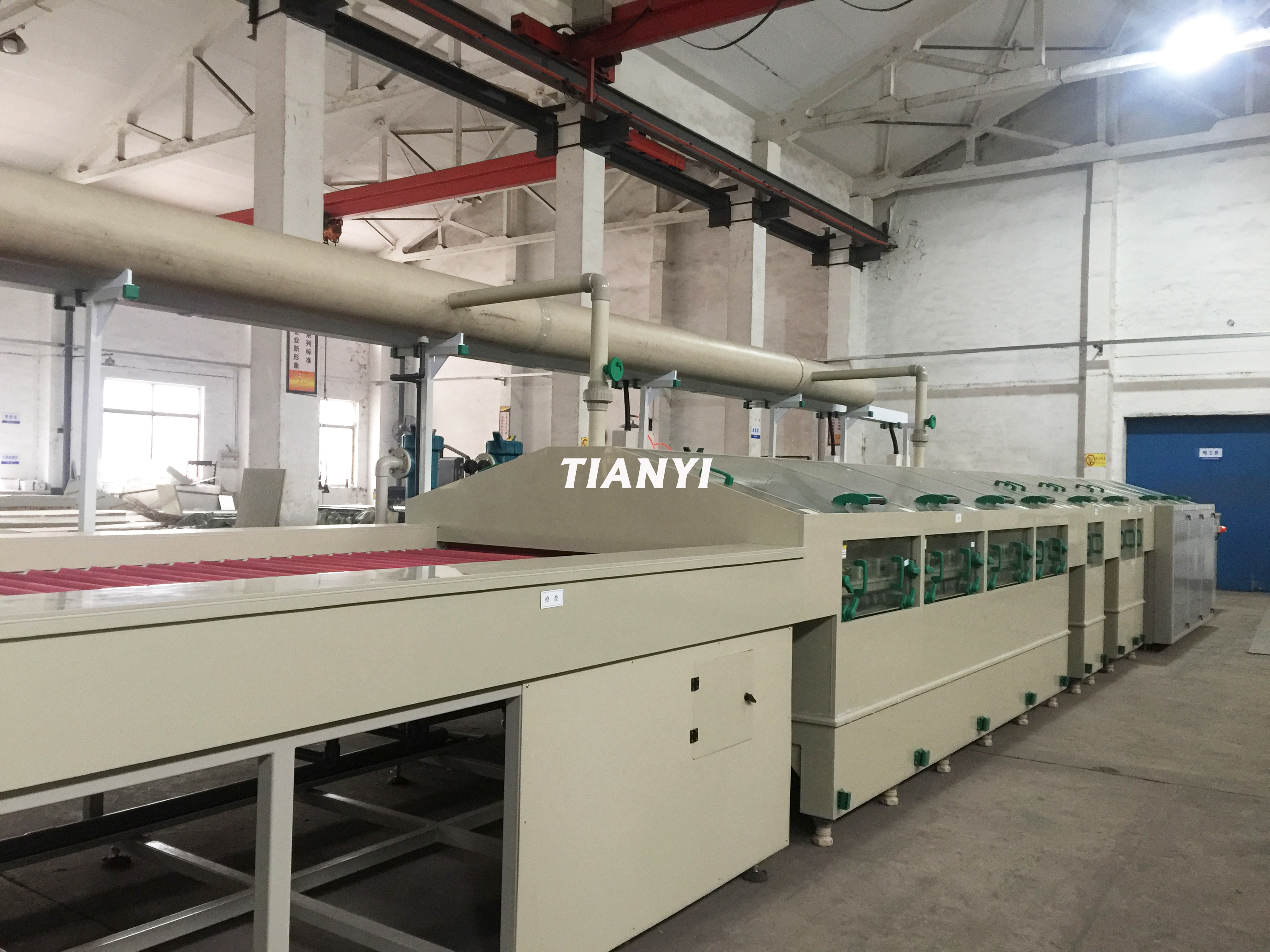

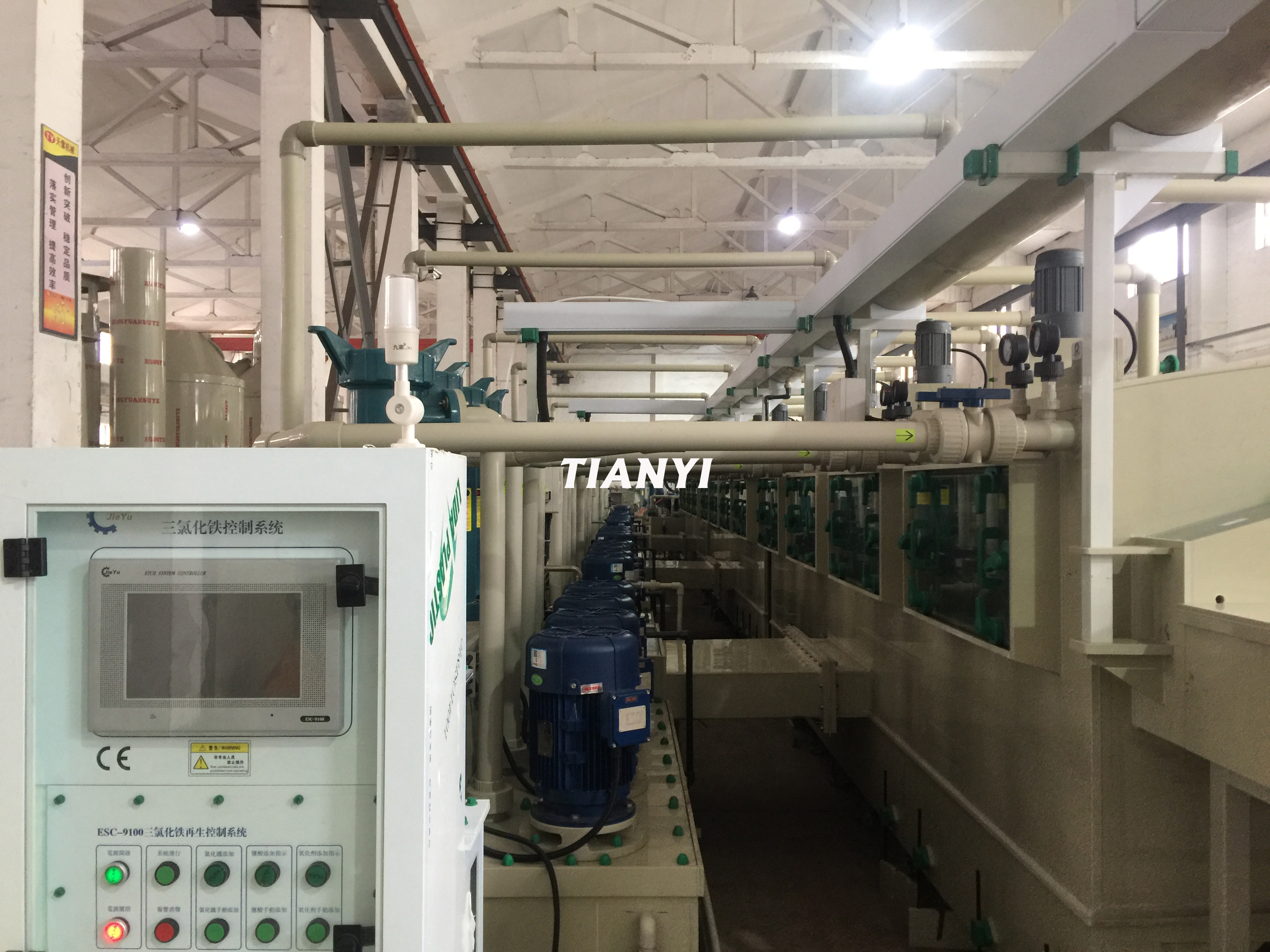

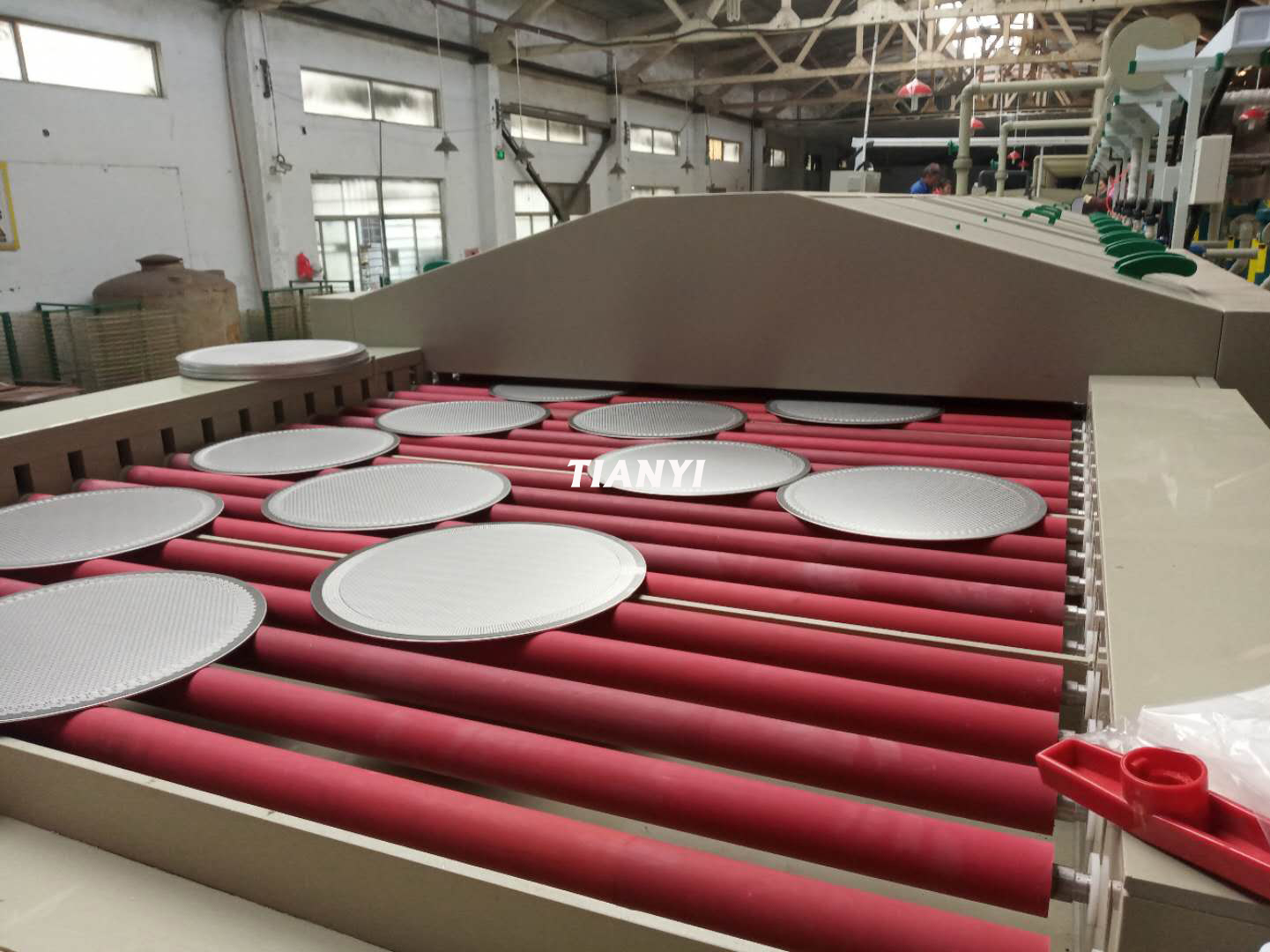

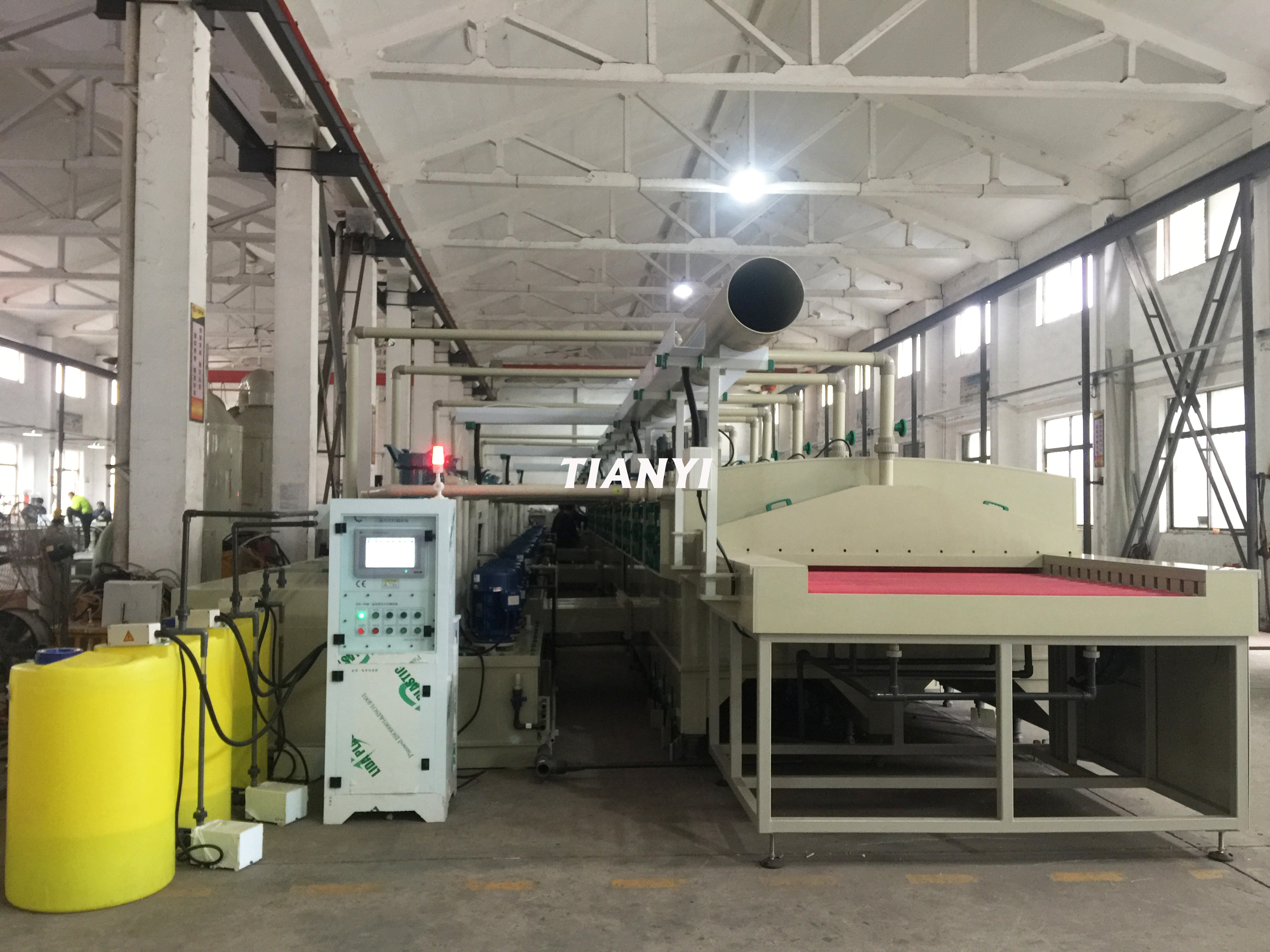

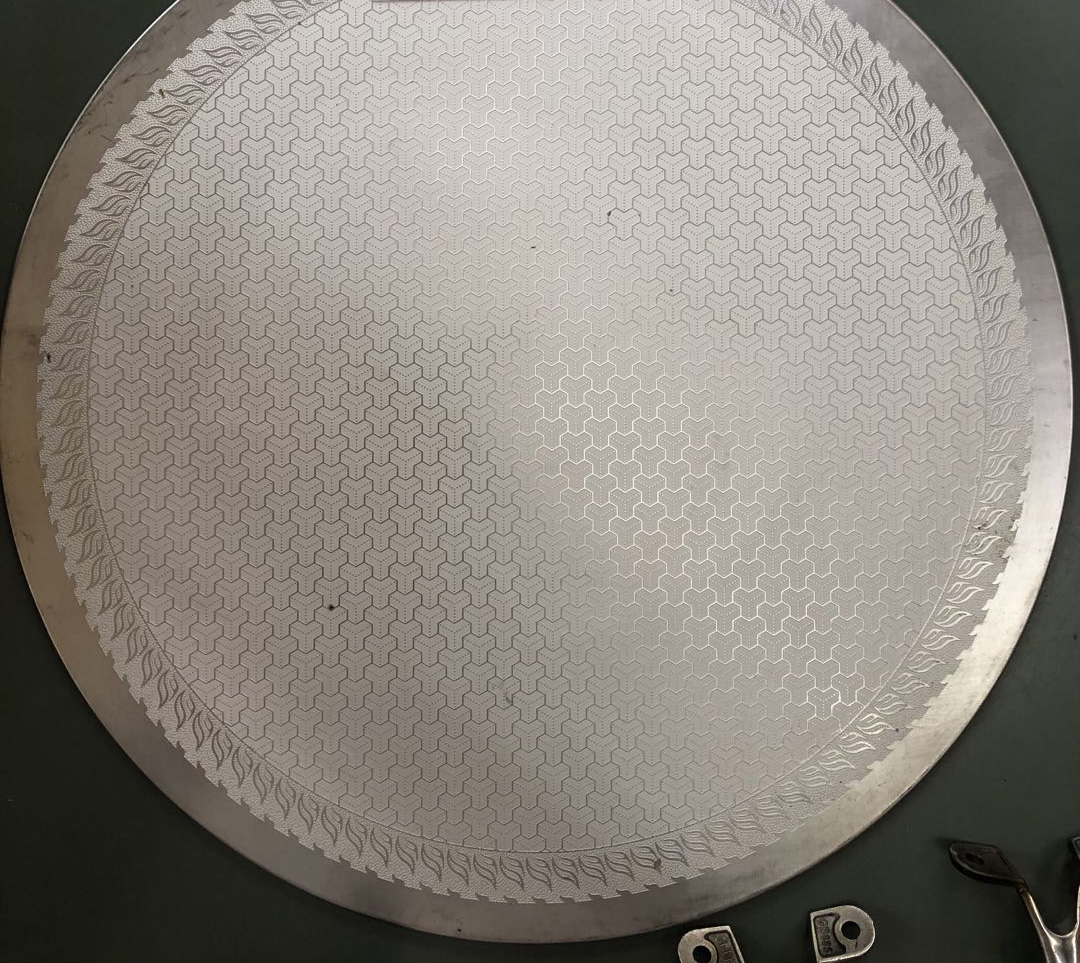

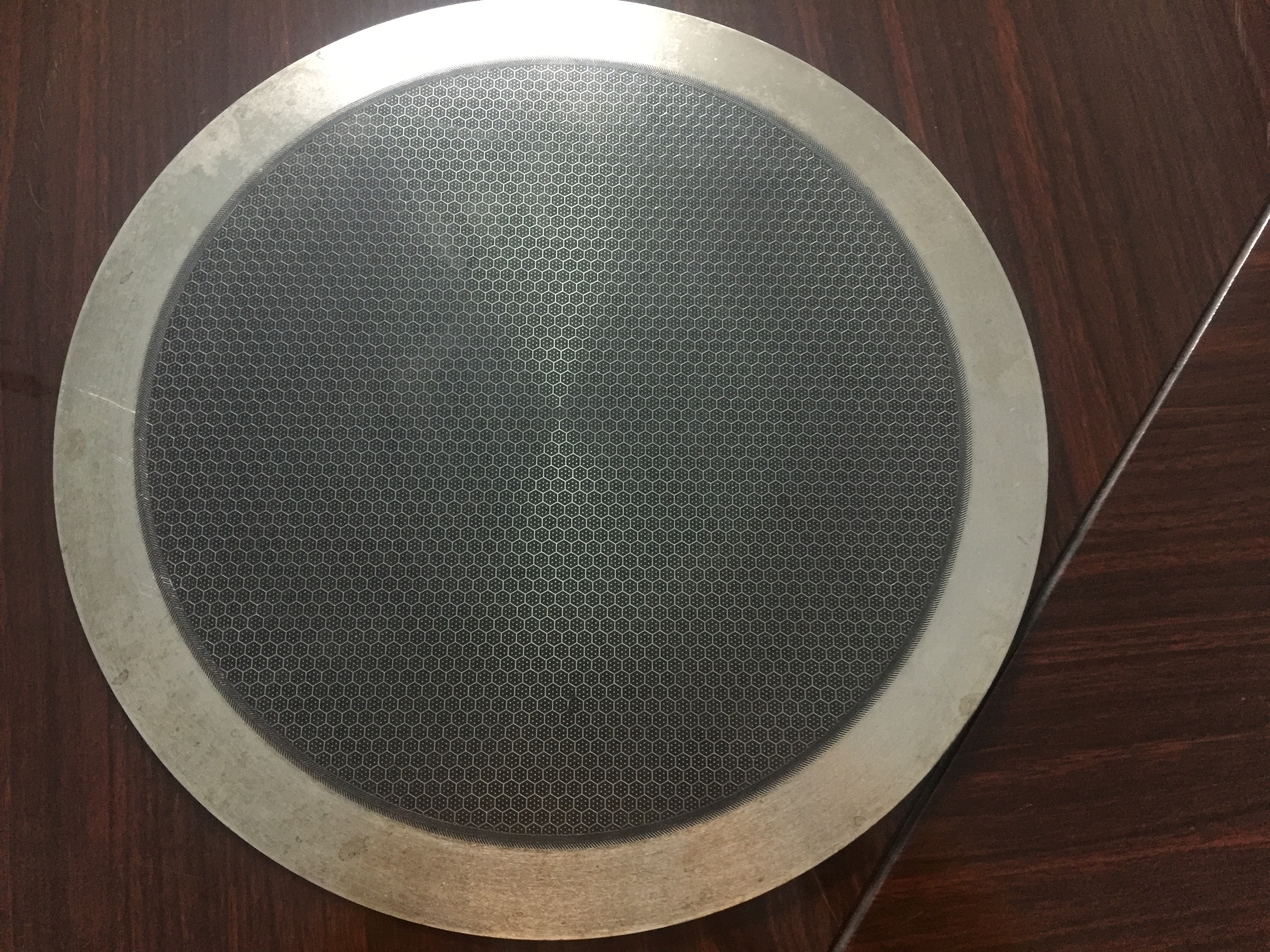

Effective etching spraying length is 12 meter, deep etching on stainless steel sheet for cookware pan, etching depth 35micros.Equipped with an acid regeneration system to ensure precise concentration control and stable performance for batch etching production.

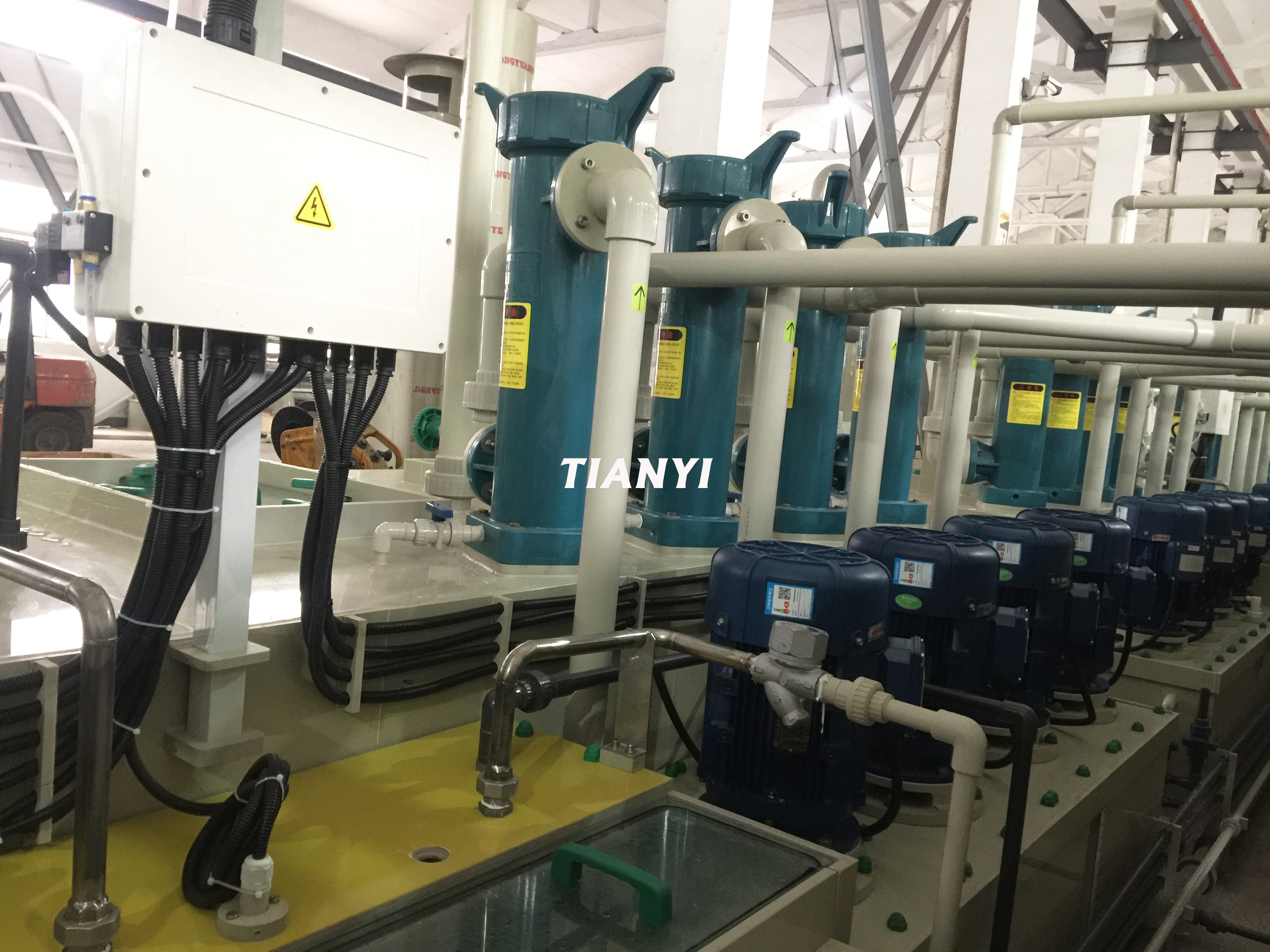

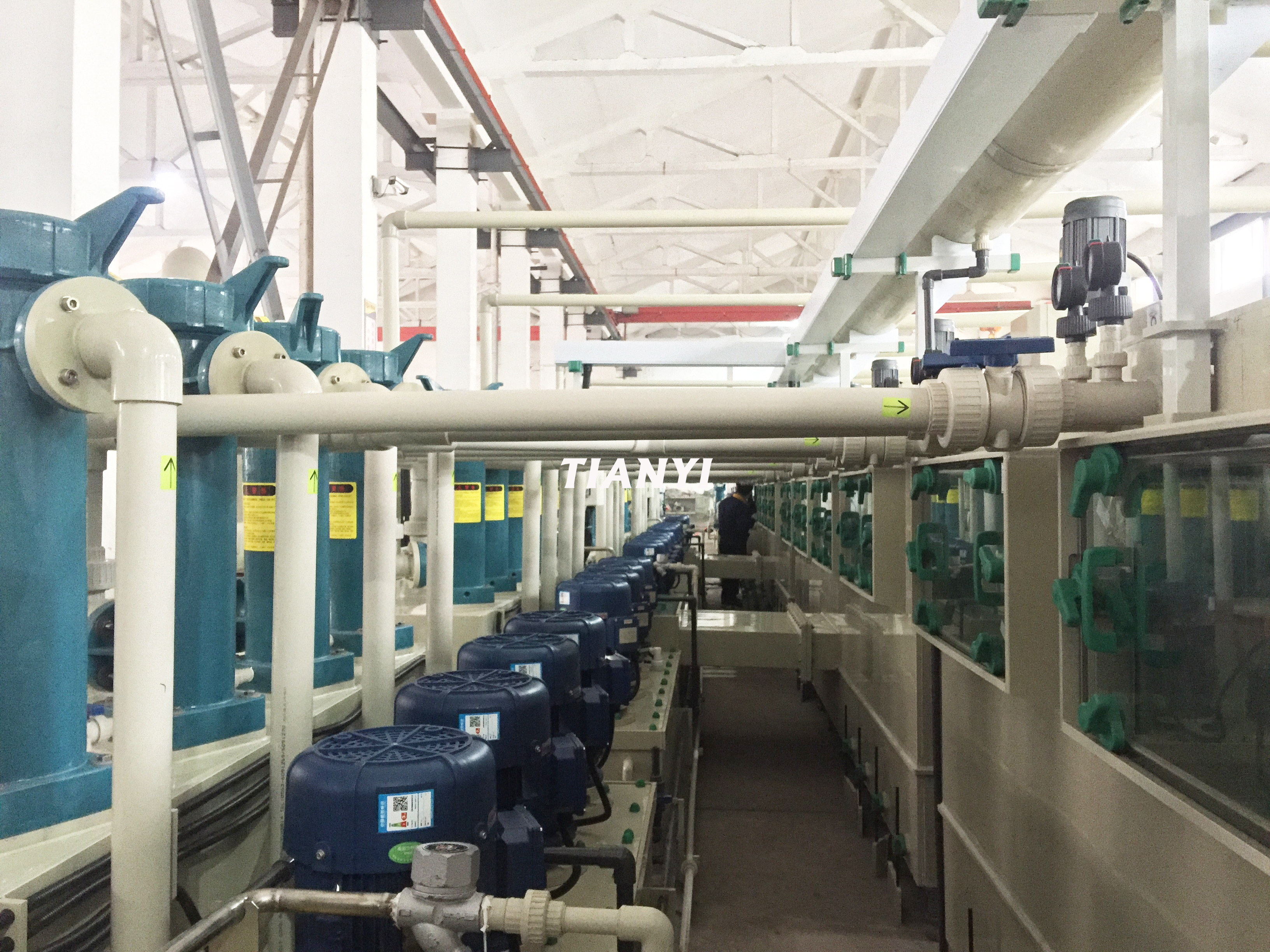

Constructed with a corrosion-resistant body and advanced PP material. At the back side of the etching module, a chemical solution circulation tank is installed to maintain uniform concentration throughout the module, ensuring a consistent and high-quality etching effect.

No items found.

Specifications

Etching machine process includes Loading → Etching → Recycle washing (1/2) → Inspection → Soak → Film stripping → Recycle washing (3/4) → Squeezing → Cold blower → Hot air drying → Unloading

Dimension L37,118xW5,090xH2,600MM

Effective working width 1650mm

Etching heating/cooling Steam heating with cooling coil

Etching pump 10HP 12SET single side Etching

Total power consumption 216.5KW

Guarantee 1year

Optional Acid regeneration system; Cooling chiller;waste gas scrubber(acid fume treatment)
