PCB black hole line Viaking line

Description

PCB black holeline is waiting for you.

‍

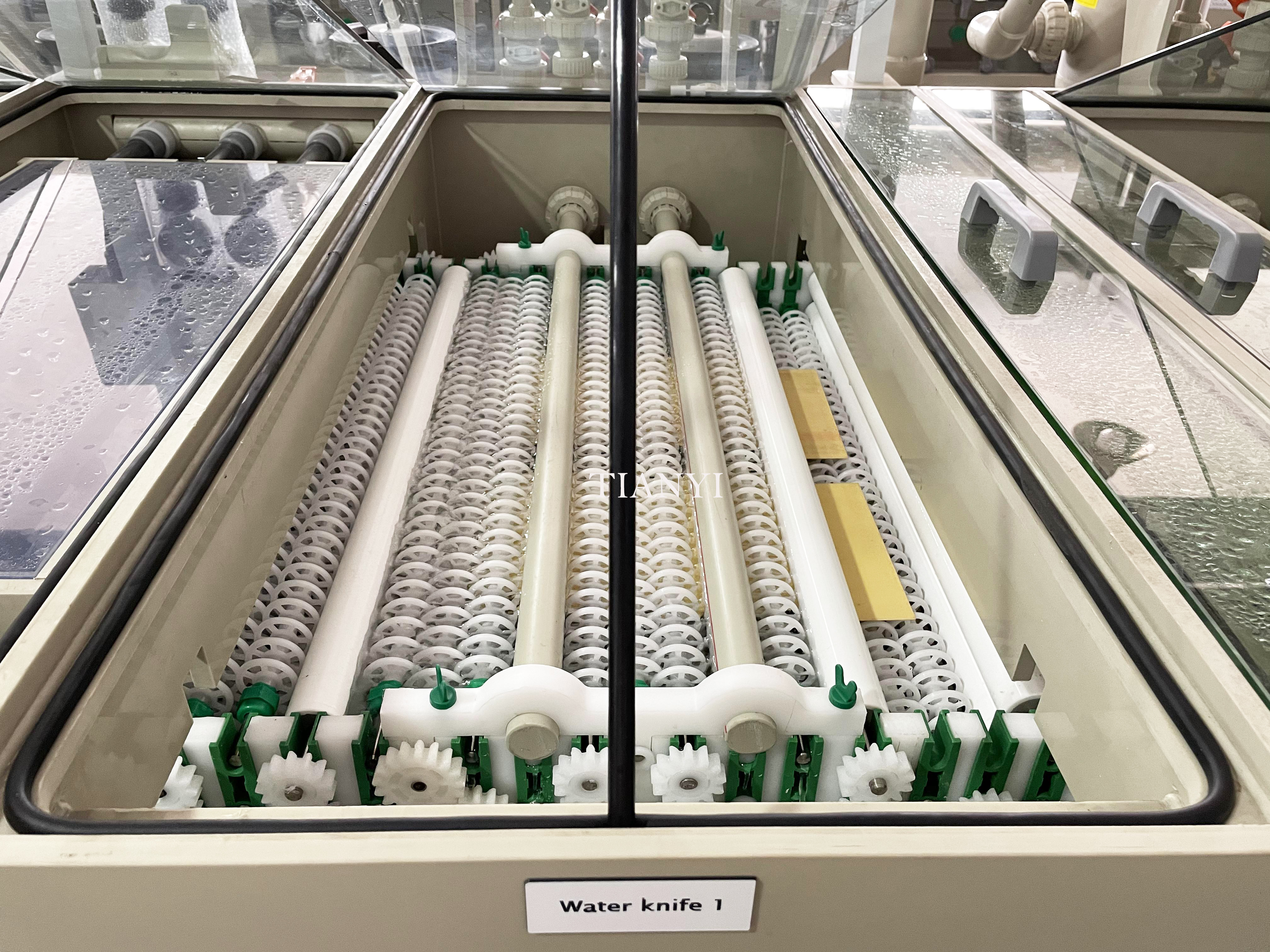

The plastic section applies excellent PP board; water knife/Cold/Hot drying is SUS with plastic powder coating.Individual drive controls for all conveyor motors.Separate pump for top flood bar&Bottom flood bars in cleaner &Colloid tank.The water knife flow valve in the Colloid module is designed for easy operation and precise control.

No items found.

Specifications

Black hole line process includes Loading → Conditioner → Water knife → Water rinse1/2/3 → DI water rinsing 1 → Squeezing → Graphite colloid 1 → Squeezing → Cold blower → Hot air drying → Inspection → Graphite colloid 2 → Reducer → Squeezing → Cold blower → Hot air drying → Inspection → Micro etch → Water rinse4/5/6 → Squeezing → Cold blower → Hot air drying → Unloading

Dimension L24,160xW2400xH2630MM

Effective working width 740mm

Etching heating/cooling Electric heating with cooling coil

Graphite Colloid pump 3HP 4SET

Total power consumption 140.32KW

Guarantee 1year

Optional Auto regeneration system; Cooling chiller;waste gas scrubber(acid fume treatment)
