PCB circuit Developing Machine

Description

Developing machine is waiting for you.

‍

With a top quality PP frame, double side developing machine for PCB or FPC.Developing machine is equipped with NAOH mixing system, auto regeneration system, cooling chiller for better chemical concentration control, convenient in actual operation.

‍

No items found.

Specifications

Developing machine process includes Loading → Developing → Recycle water washing(1/2) → DI water washing → Squeezing → Cold blower → Hot air drying → Unloading

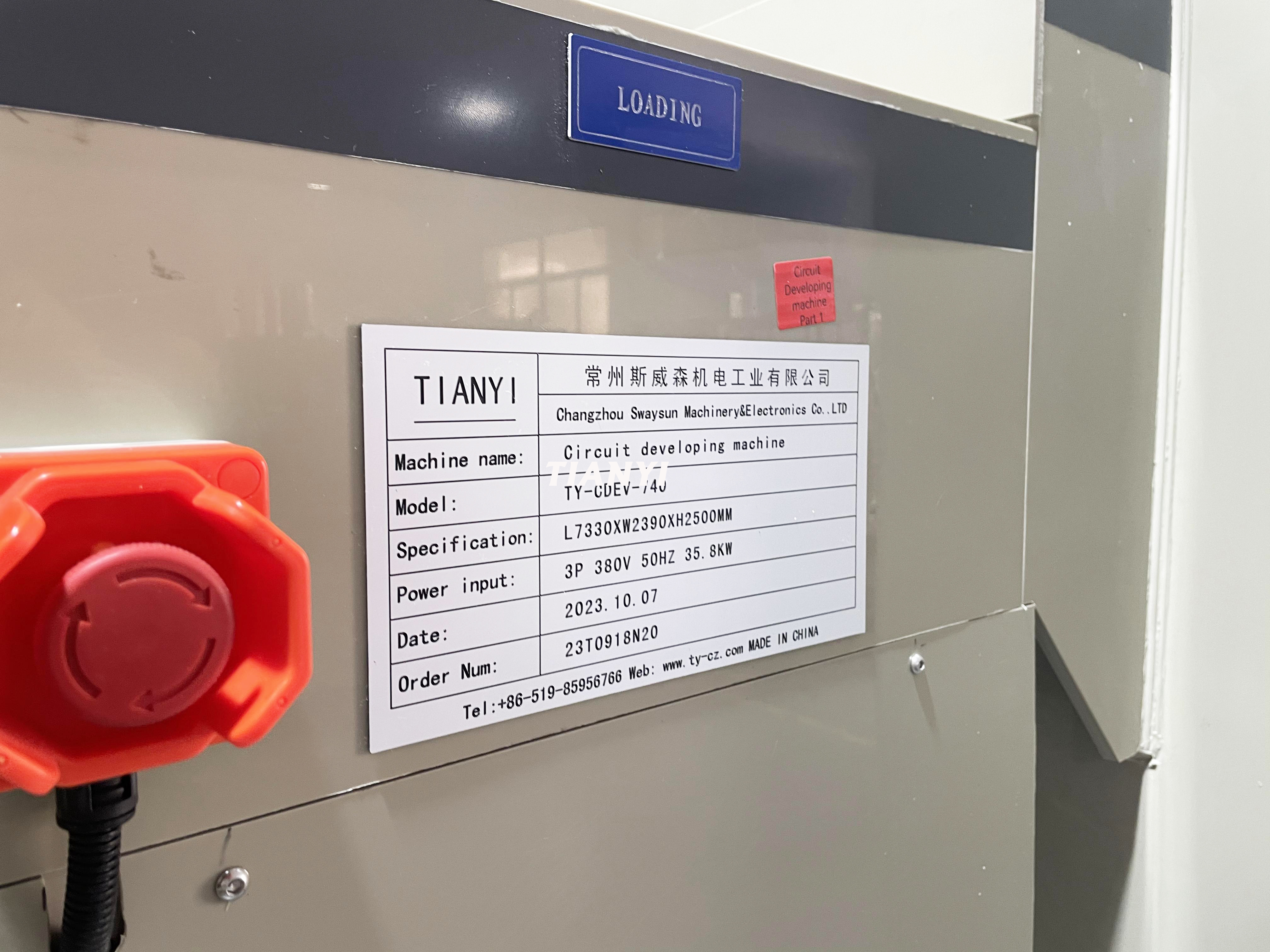

Dimension L7330xW2390xH2500MM

Effective working width 740mm

Developing heating/cooling Electric heating with cooling coil

Developing pump 7.5HP 2SET double side Etching

Total power consumption 35.8W

Guarantee 1year

Optional NAOH mixing system; NAOH regeneration system; Cooling chiller; waste gas scrubber(acid fume treatment); NAOH mixture system
