PCB double side brushing machine

Description

Brushing machine is waiting for you.

‍

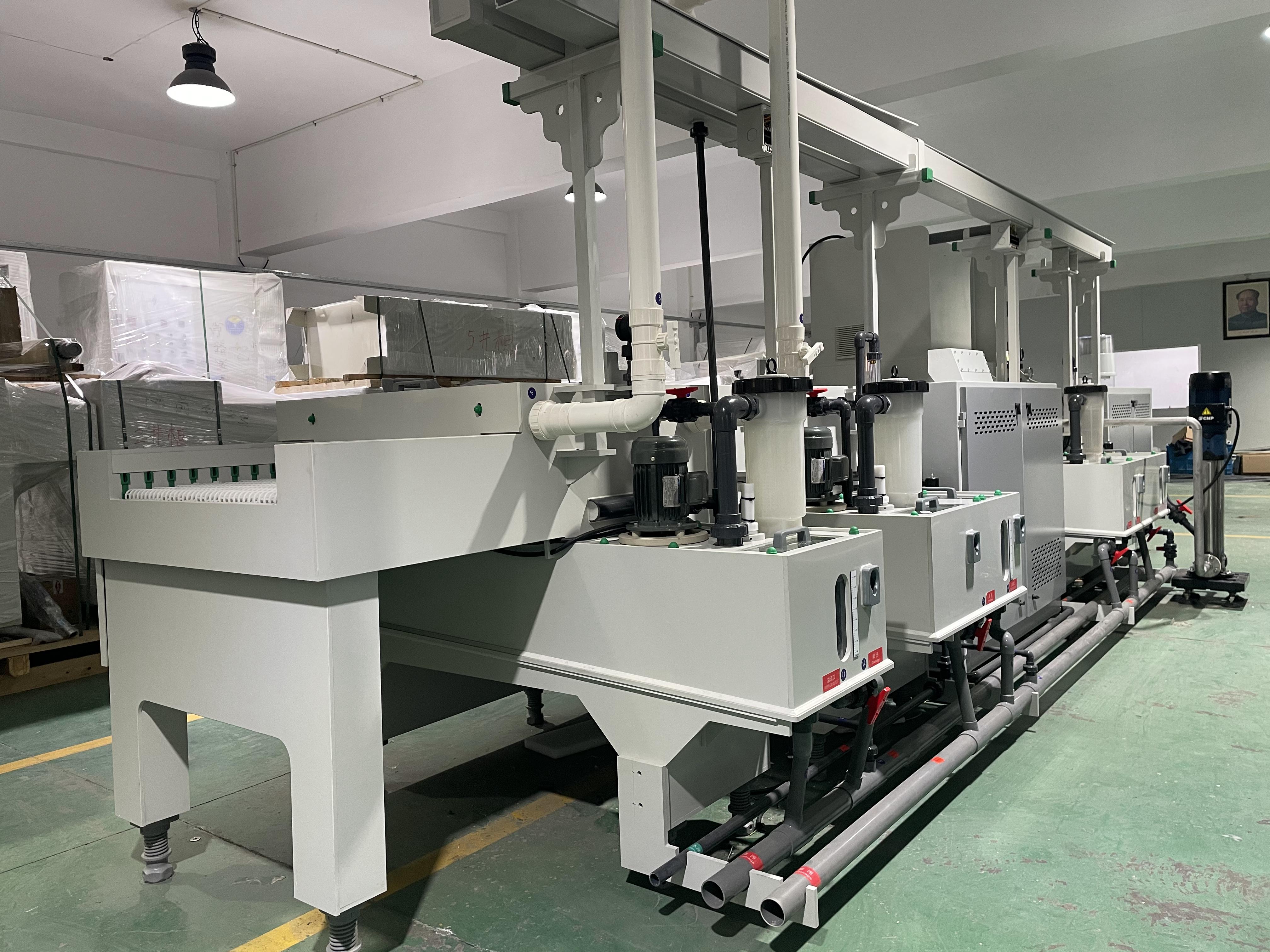

The brushing module is constructed with a robust stainless steel frame, other plastic part made of PVC sheets for excellent corrosion resistance.Equipped with 500# and 800# nylon brushes and an oscillation system, the brushing unit provides uniform and efficient copper polishing for PCB surface treatment.Equipped one PVC water tank for washing water recycling in brushing module.

No items found.

Specifications

Brushing machine process includes Loading → Acid washing → Recycle water washing(1/2) → DI water washing → Brushing →High pressure rinse →Recycle water washing(3/4) → DI water washing→Squeezing → Cold blower → Hot air drying → Unloading

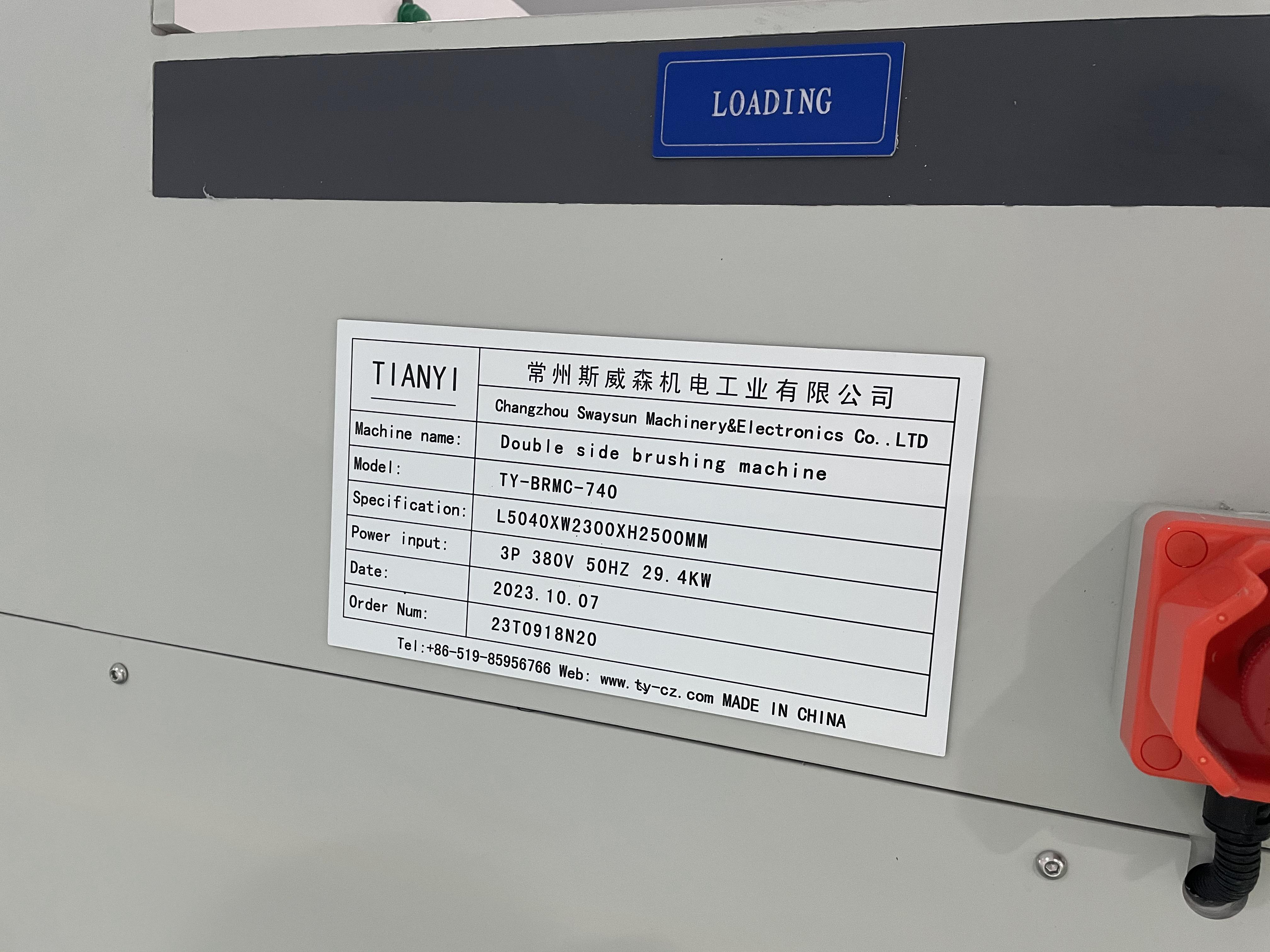

Dimension L5040xW2300xH2500MM

Effective working width 740mm

Brushing heating/cooling None

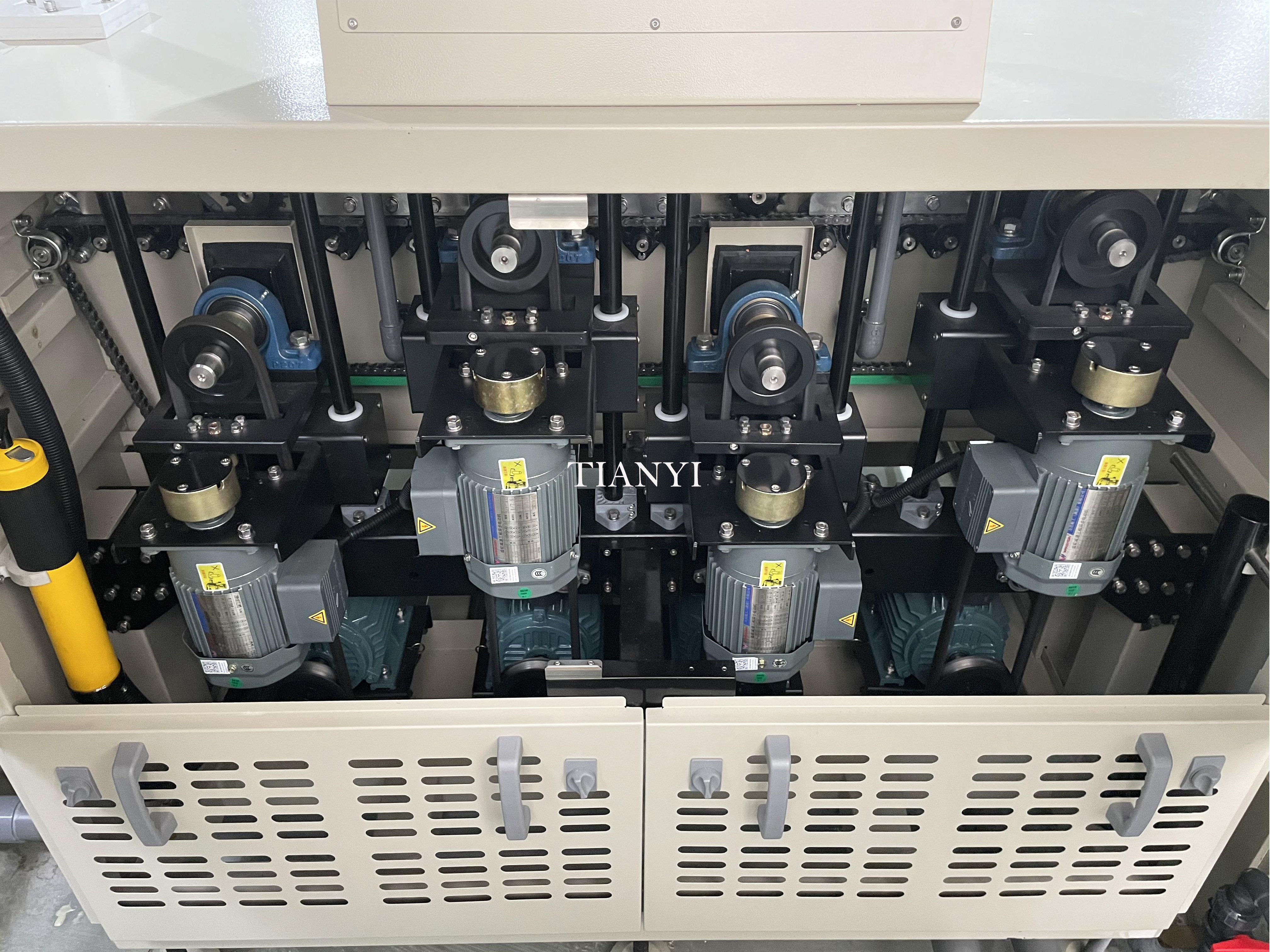

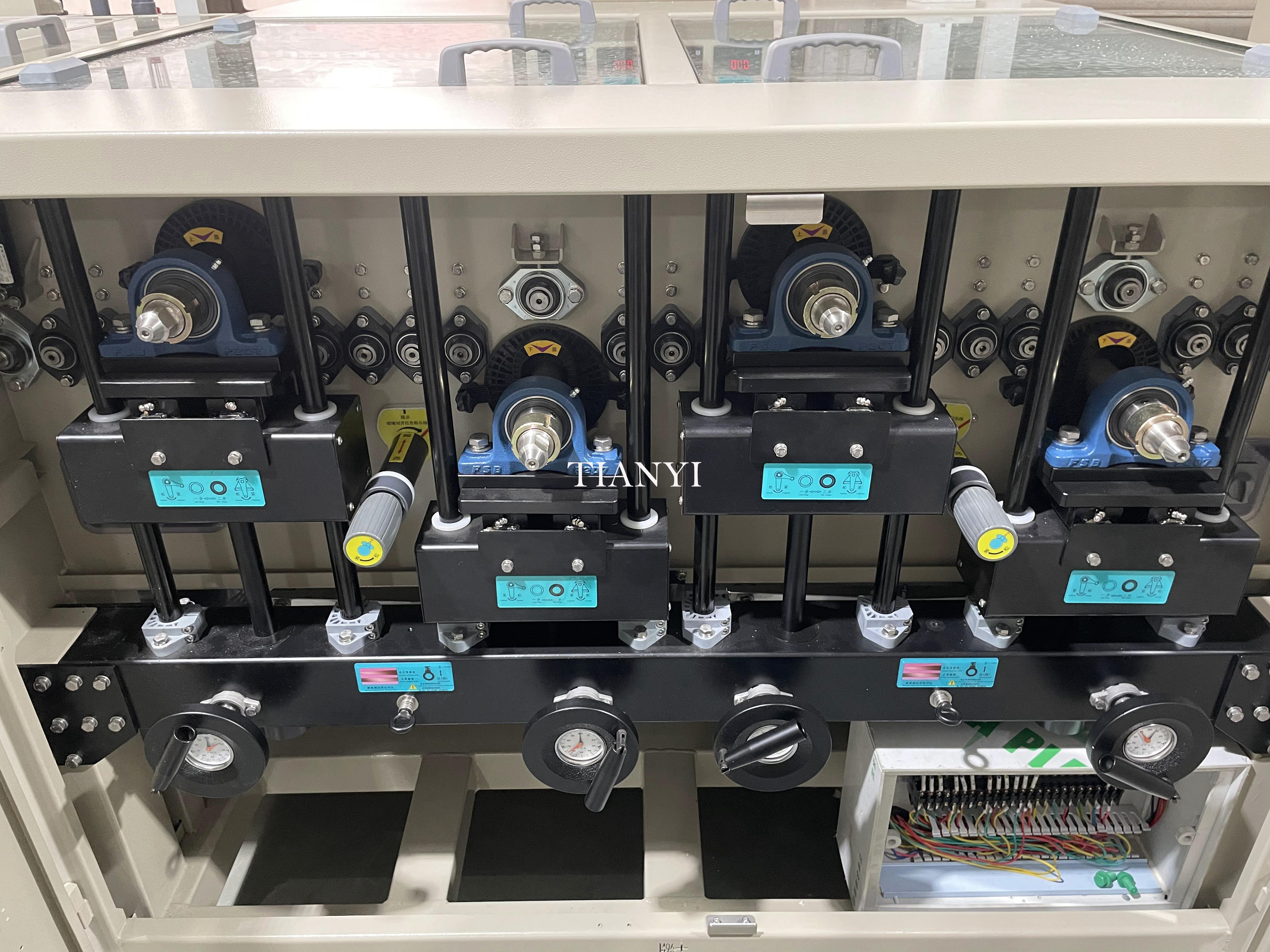

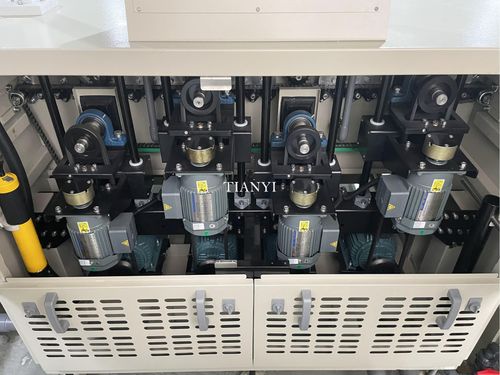

Brushing motor 2.2KW 4SET with 200W 4SET Oscillation motor

Total power consumption 29.4KW

Guarantee 1year

Optional Auto loader and Unloader, Copper recovery unit
