PCB OSP line

Description

PCB OSP line is waiting for you.

‍

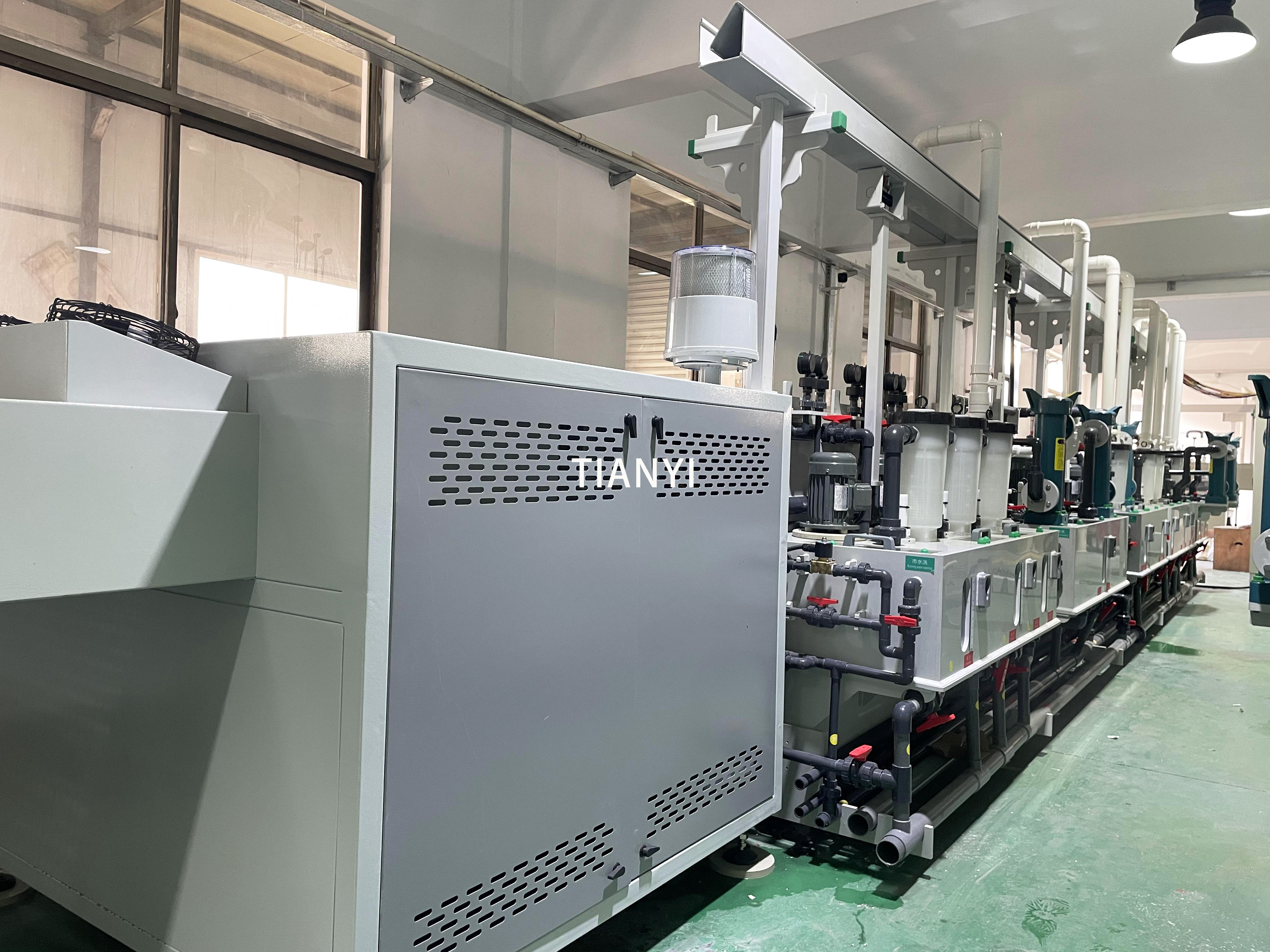

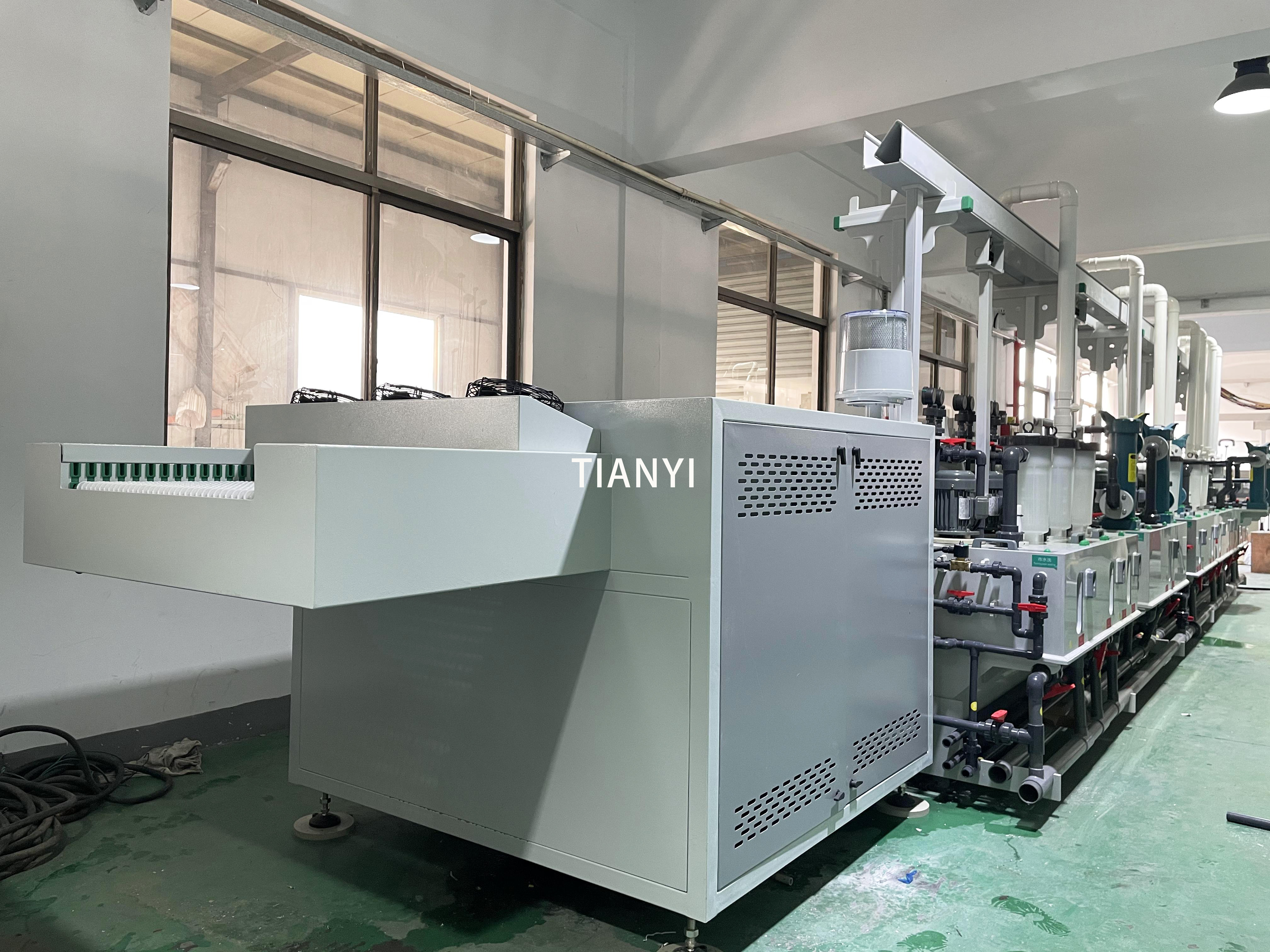

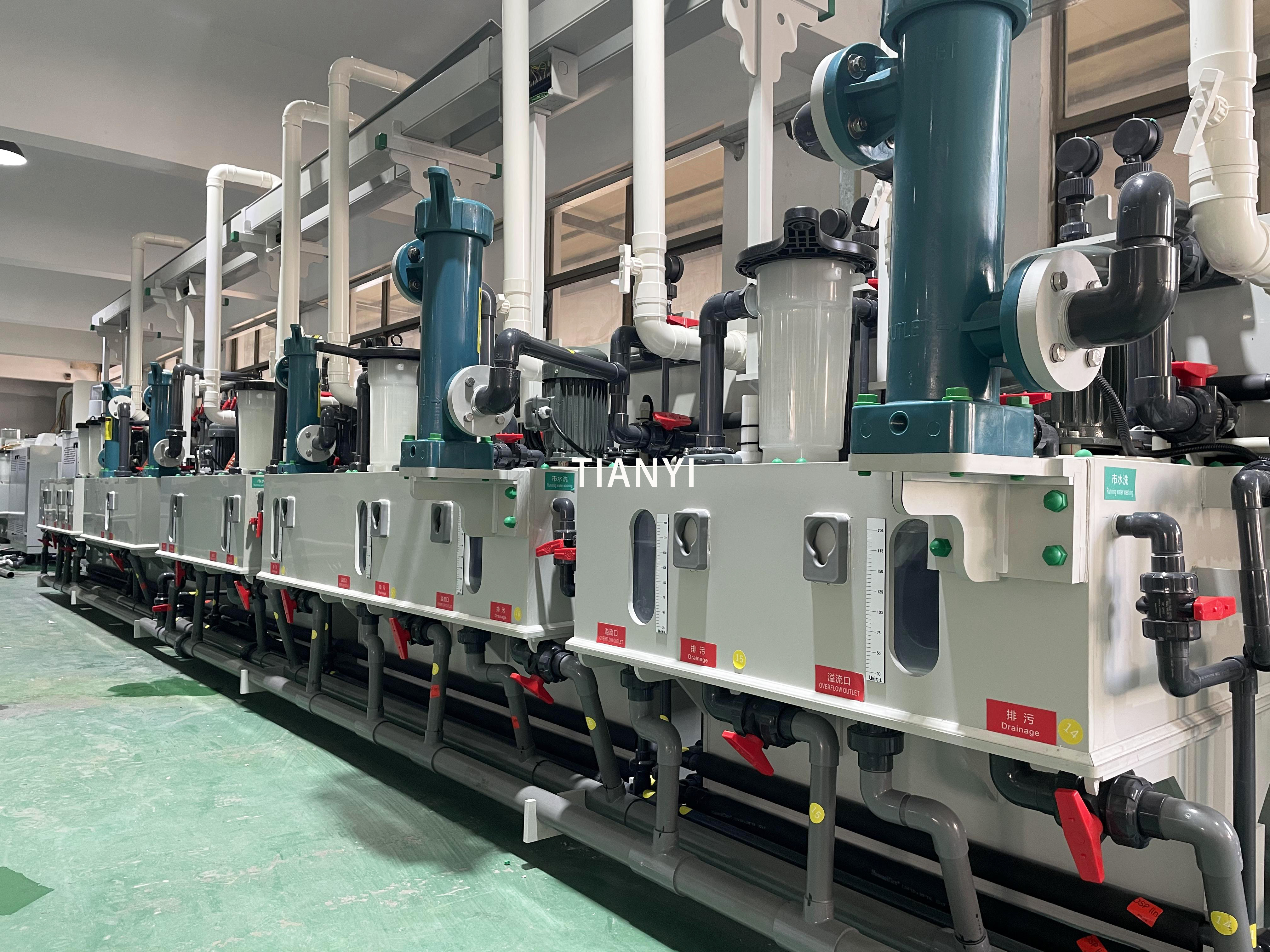

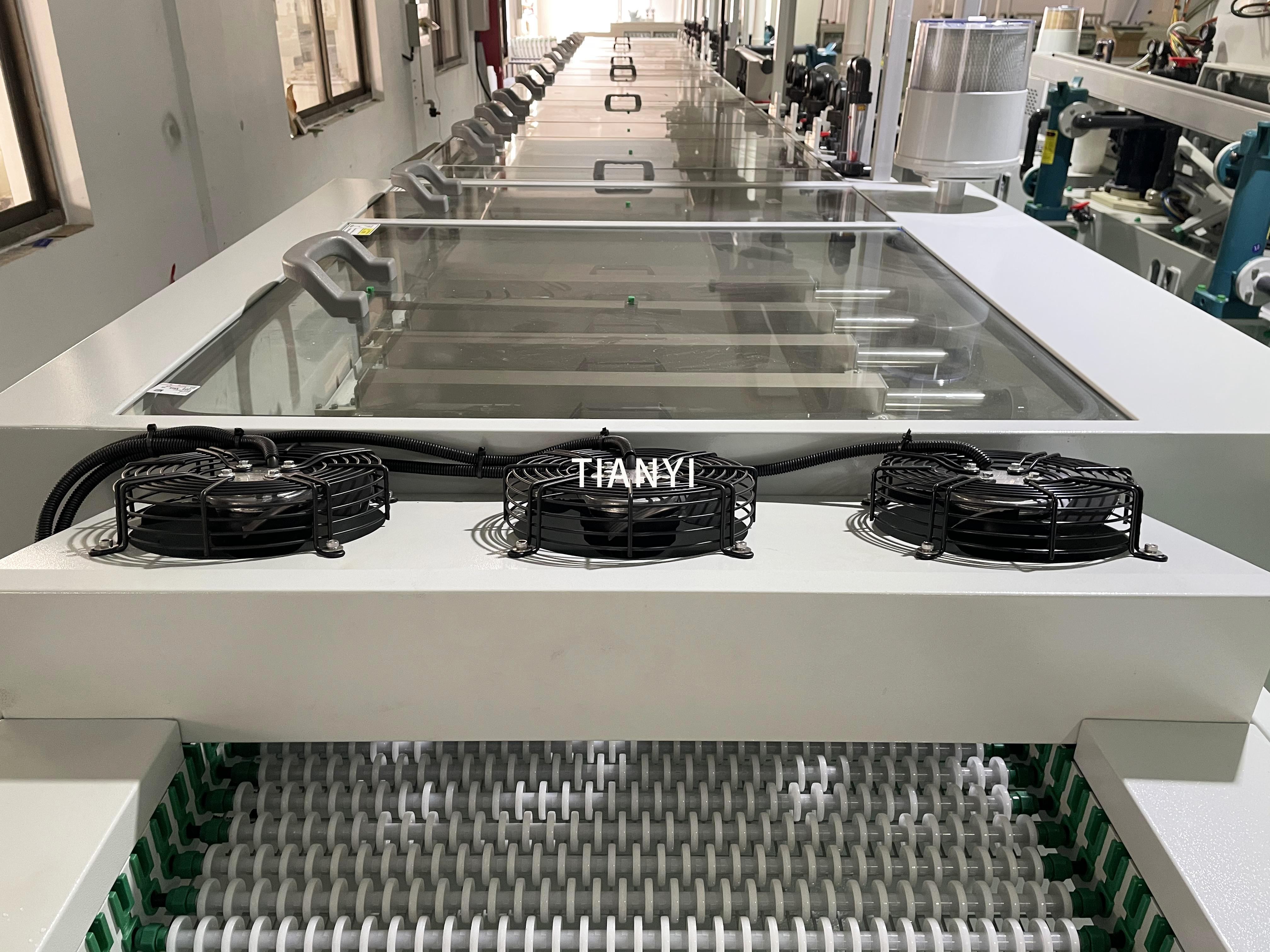

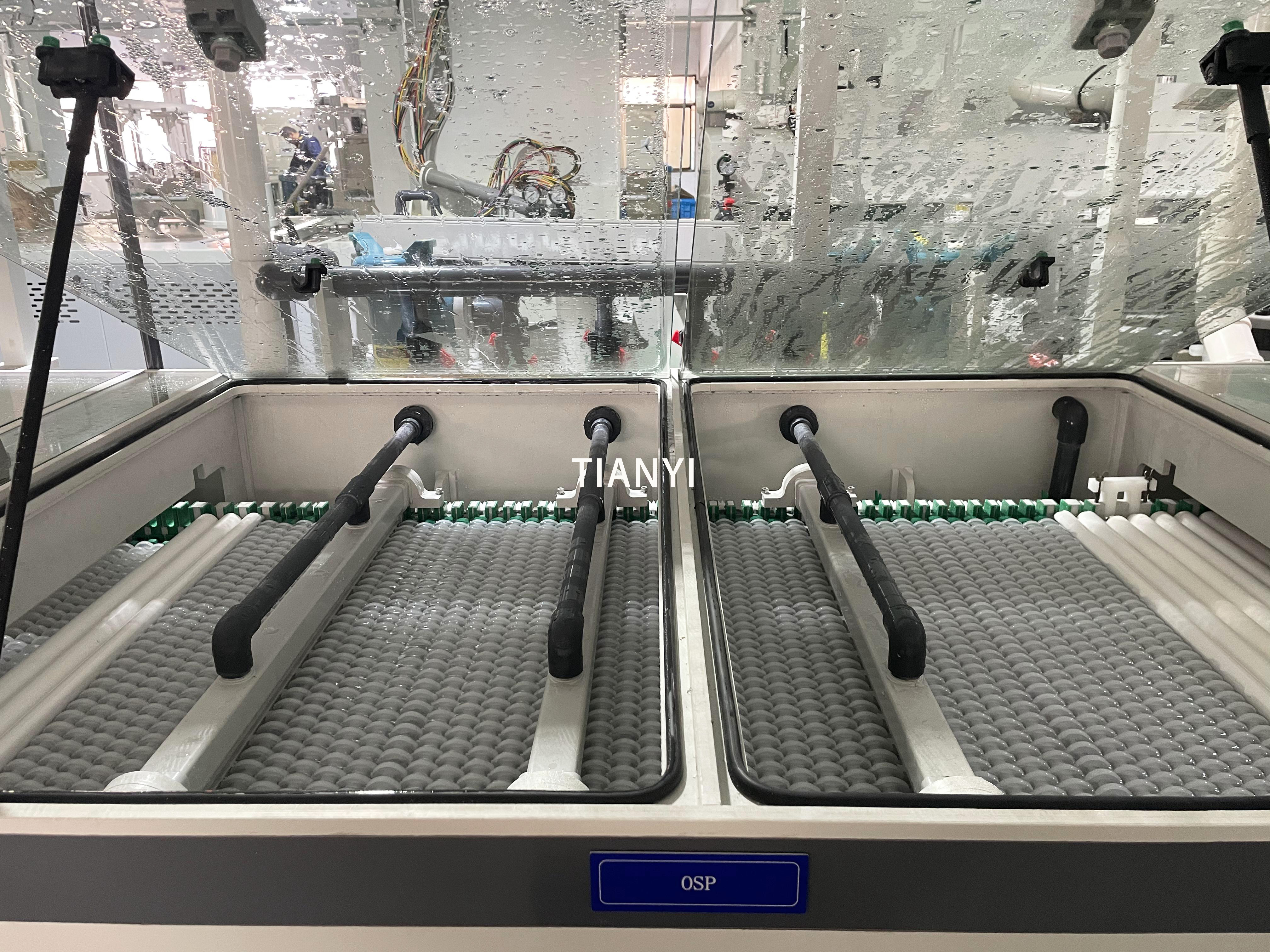

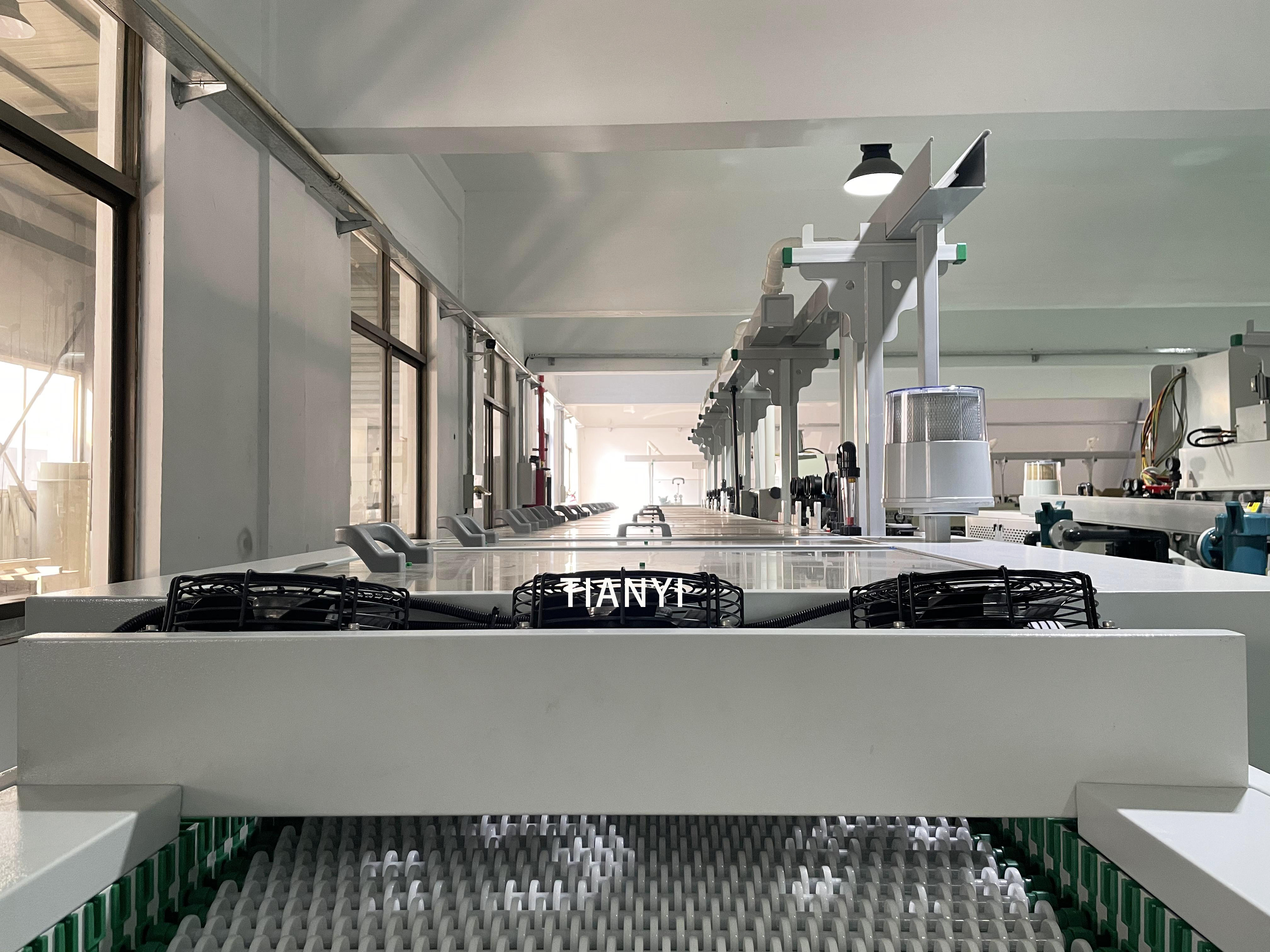

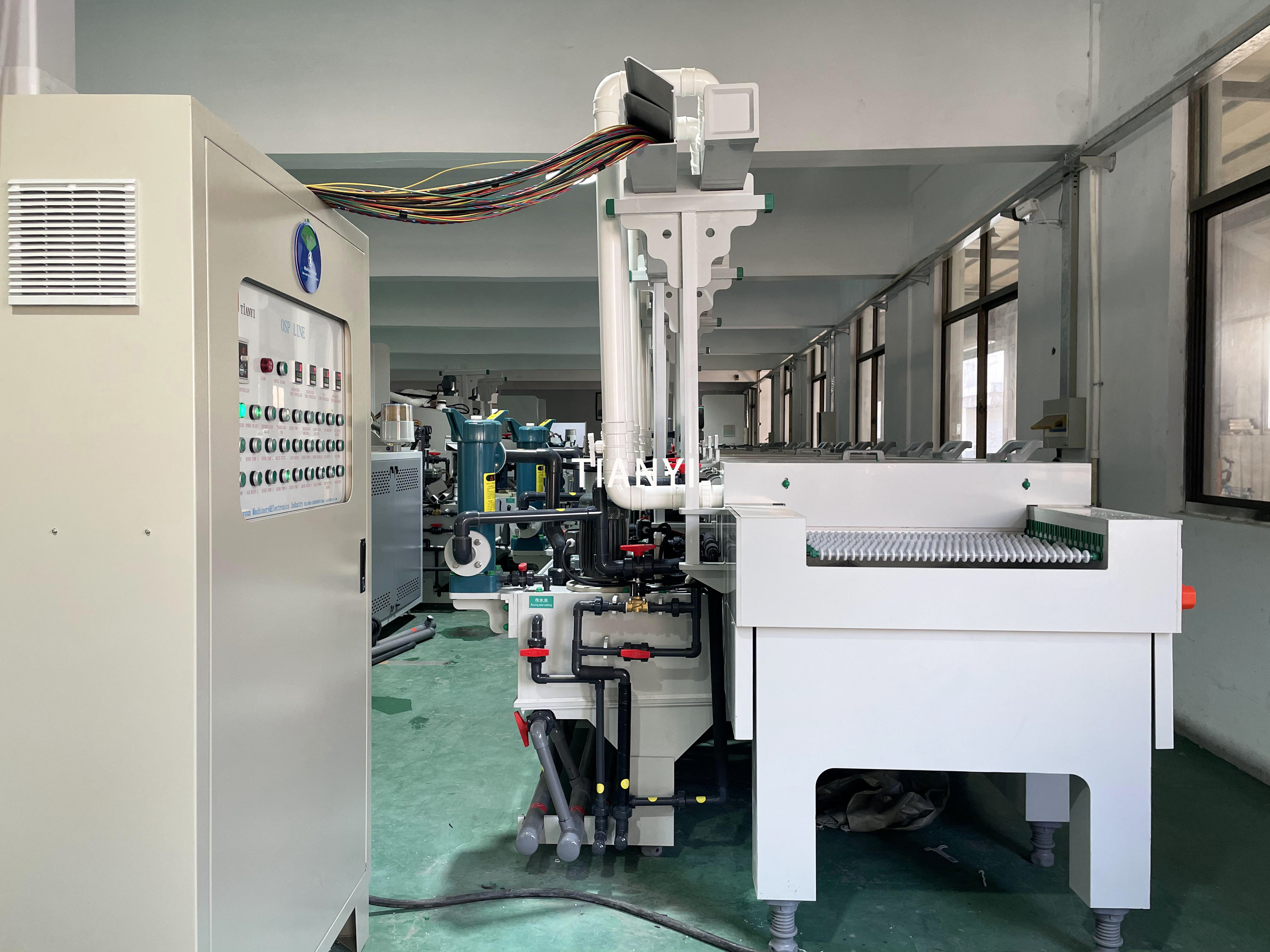

PCB OSP line is an automated surface treatment system used to apply an organic protective layer on copper surfaces.Effective OSP spraying length is 1.2 meter, constructed with a corrosion-resistant body and advanced PP material. It could achieve 1-1.2 meter/min working speed for PCB etching production.

No items found.

Specifications

OSP LINE process includes Loading → Degreasing →Recycle washing (1/2) → DI water rinsing 1 → Micro etch → Recycle washing (3/4) → DI water rinsing 2 → Air knife 1 → Anti-oxidation → Air knife 2 → Recyclewashing(5/6/7) → DI water rinsing 3 → Squeezing → Cold blower → Hot air drying → Unloading

Dimension L11,165xW2150xH2500MM

Effective working width 740mm

OSP heating/cooling Electric heating with cooling coil

OSP pump 0.75KW

Total power consumption 64KW

Guarantee 1year

Optional Cooling chiller; waste gas scrubber(acidfume treatment)
