PCB Pattern Copper plating machine

Description

PCB copperplating machine is waiting for you.

‍

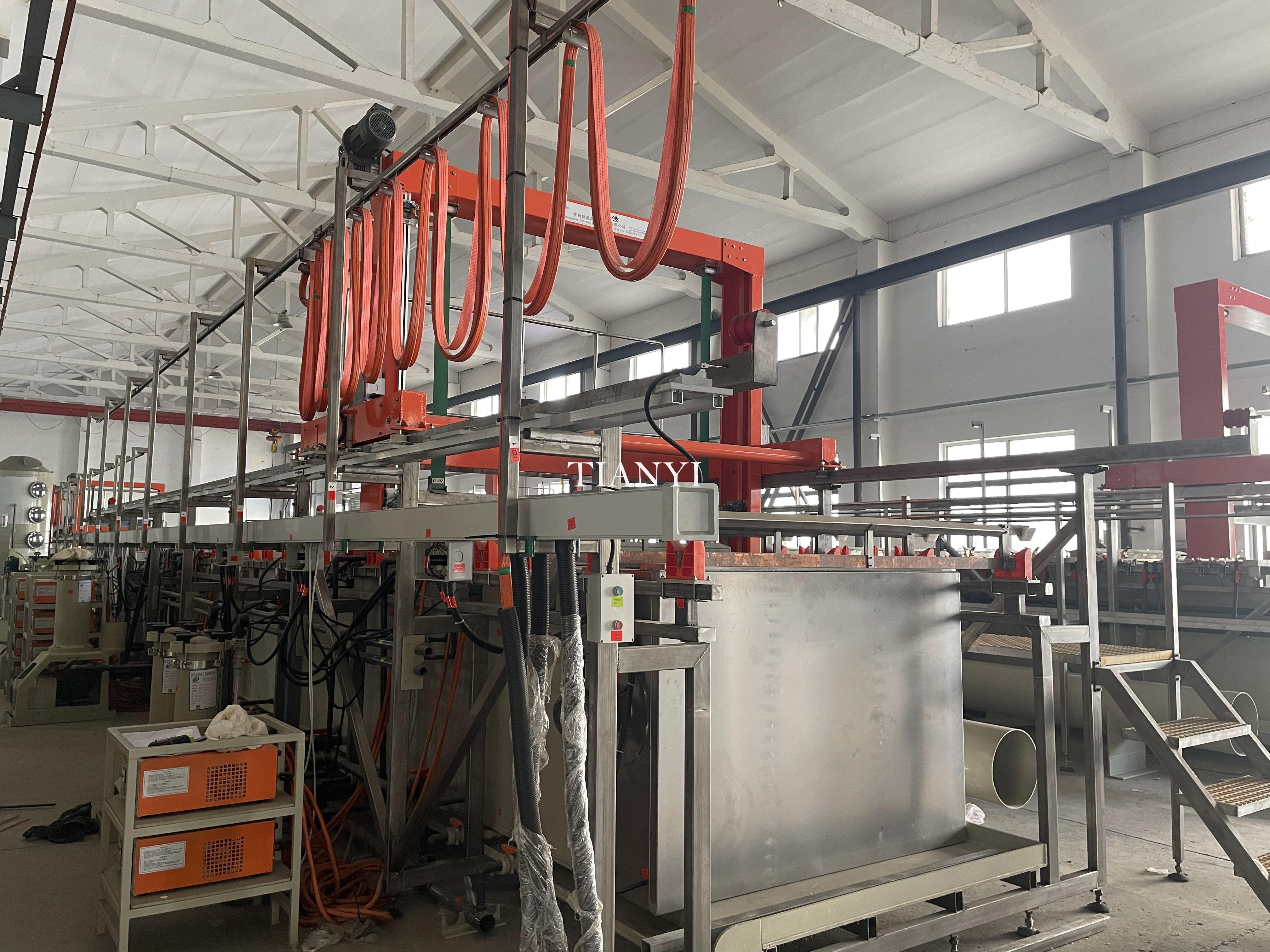

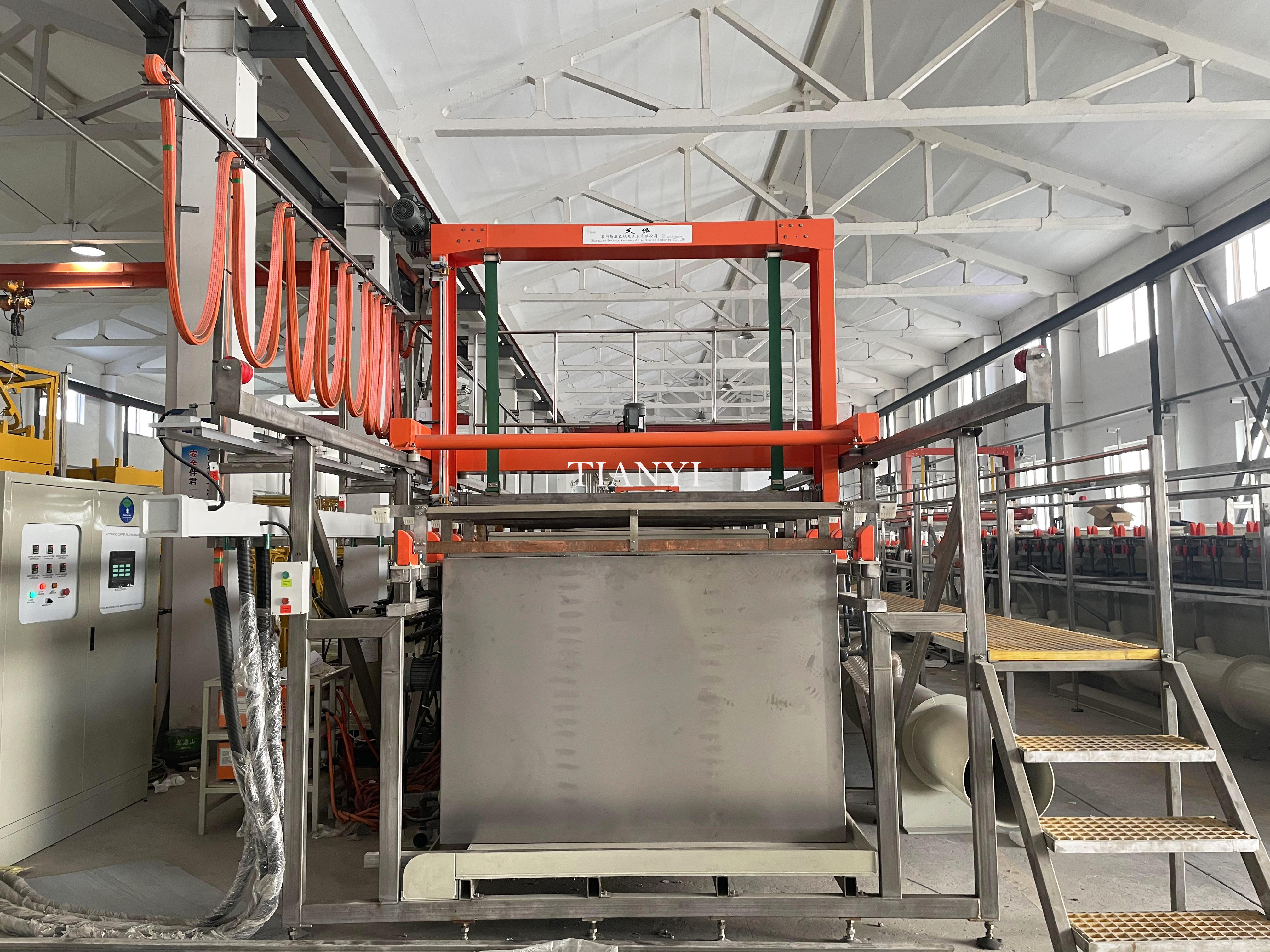

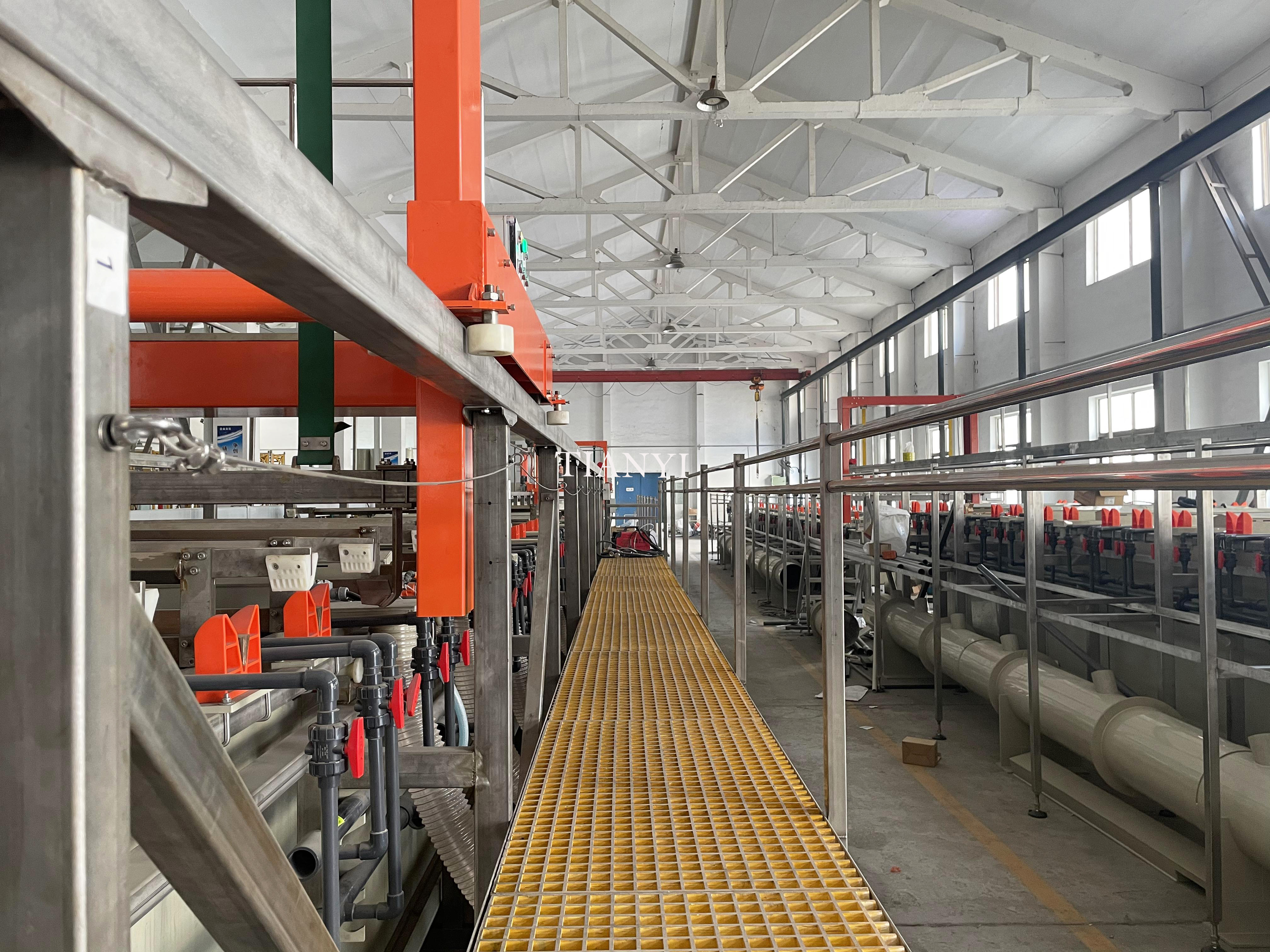

PCB copper plating machine is suitable for both first copper (via filling) and pattern copper plating processes(surface build-up). It is an automated line that uses electrolytic copper baths, rectifiers, filters, and agitation systems to deposit uniform copper layers on PCB surfaces and through holes.

Machine Construction:

Frame: Made of SS 304 stainless steel for strength and corrosion resistance.
Tanks: PP material (12mm/15mm/20mm thick) with tube reinforcement for extra durability.
Oscillation System: Ensures even processing and better chemical exchange.
Air Agitation System: Provides uniform solution circulation and stable operation.

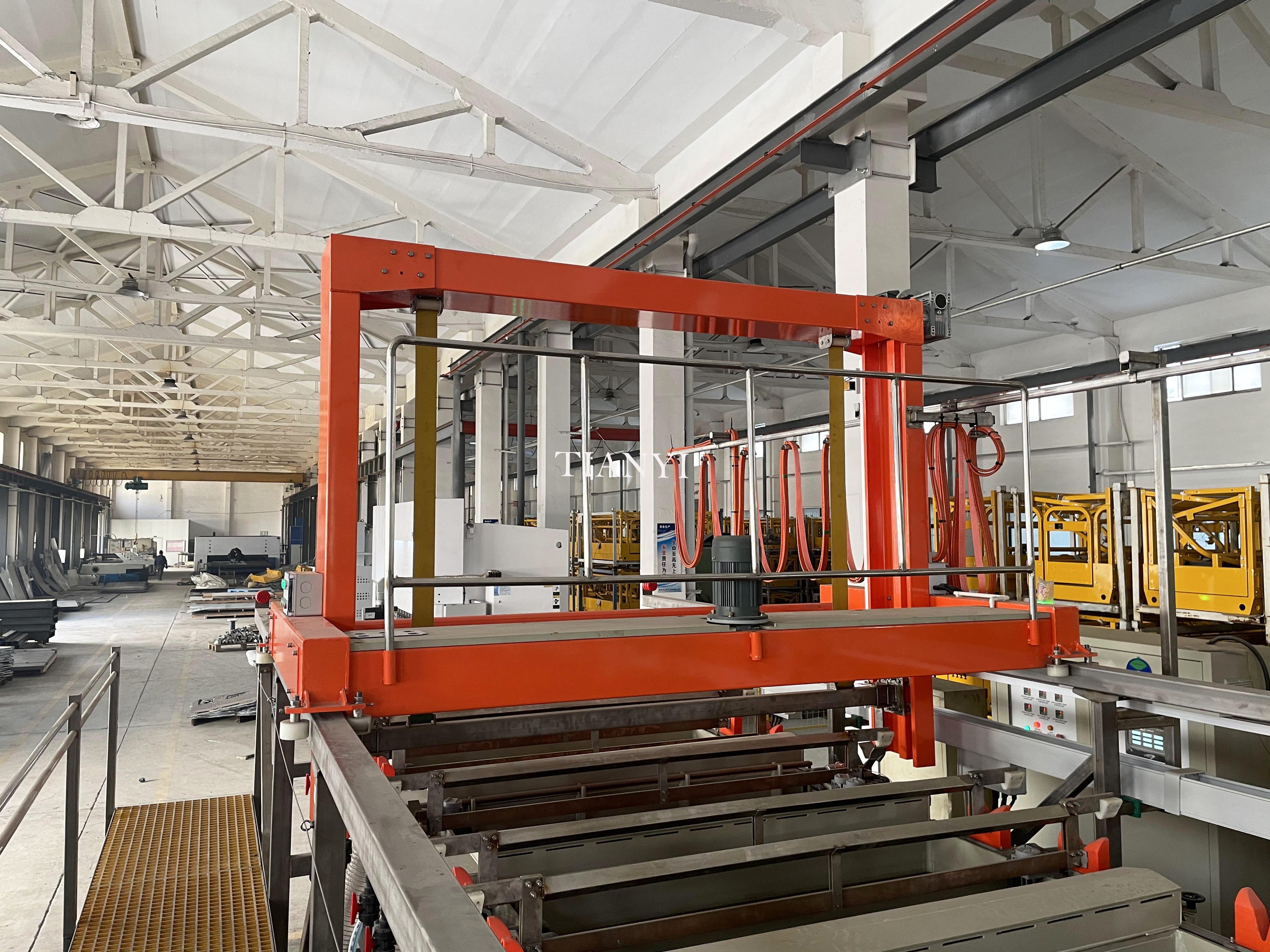

Transport System: Two set PLC-controlled transporters for precise and automatic movement.

No items found.

Specifications

Copperplating machine process includes Loading → Soak → Film stripping → Recycle washing (1/2/3) → DI water rinsing 1 → Squeezing → Inspection →Vacuum Etching → Recycle washing (4/5/6) → DI water rinsing 2 → Squeezing → Inspection → Tin stripping → Recyclewashing(7/8/9) → DI water rinsing → Squeezing → Cold blower → Hot air drying → Unloading

Dimension L15,160xW2750xH4000MM

Tanks dimension L1800xW860xH1180 mm

Copper heating/cooling Electric heating with cooling coil

Copper process time 60-75minuts

Total power consumption 95KW

Guarantee 1year

Optional Rectifier, Filter, Auto regeneration system; Coolingchiller; waste gas scrubber(acid fume treatment)
