PCB PTH LINE

Description

PCB PTH line iswaiting for you.

‍

The PCB PTH line is used for through-hole plating, ensuring uniform copper deposition and reliable electrical connectivity for printed circuit boards.

Machine Construction:

Frame: Made of SS 304 stainless steel for strength and corrosion resistance.
Tanks: PP material (12mm/15mm/20mm thick) with tube reinforcement for extra durability.
Oscillation System: Ensures even processing and better chemical exchange.
Air Agitation System: Provides uniform solution circulation and stable operation.

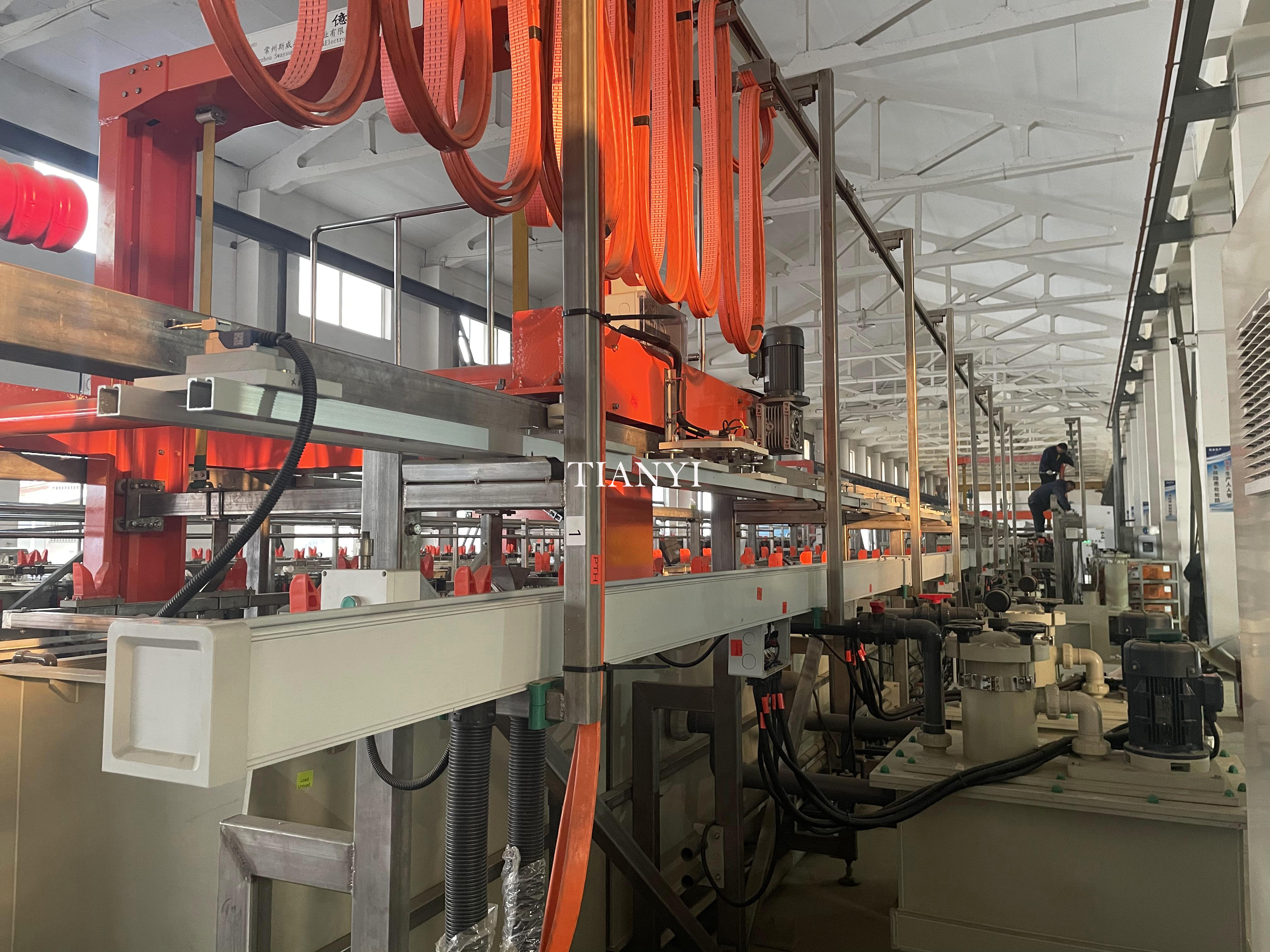

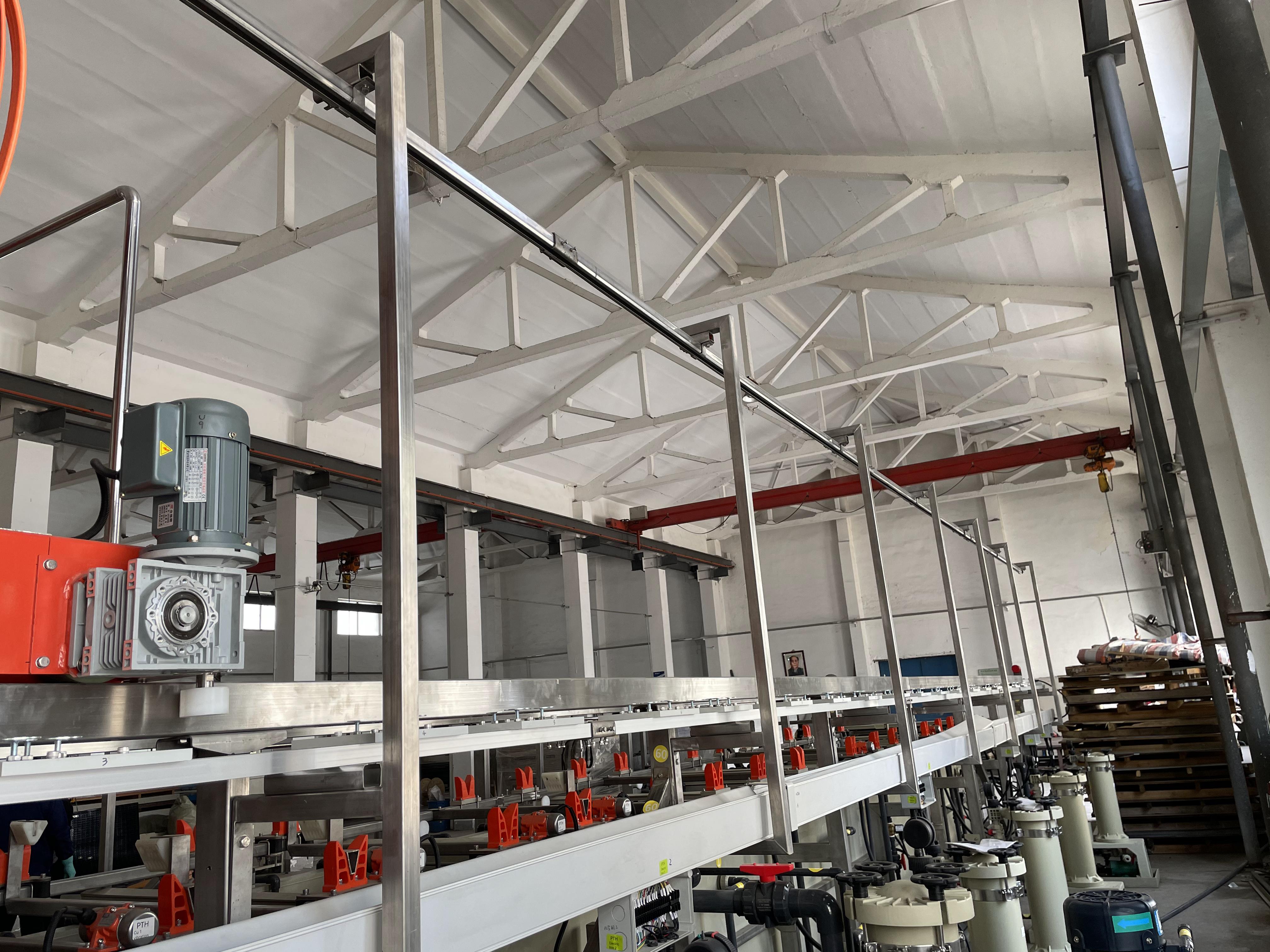

Transport System: One set PLC-controlled transporters for precise and automatic movement.

No items found.

Specifications

PTH plating machine process includes Loading → Degreasing → Hot water → Cascade water → Micro etch → Cascade water → Pre-dip → Activation → Cascade water → Speed up → Cascade water → Electroless copper → Cascade water → Unloading

Dimension L12,800xW3500xH4000MM

Tanks dimension L1200xW900xH900 mm

PTH heating/cooling Electric heating with cooling coil

PTH process time 20minuts

Total power consumption 58KW

Guarantee 1year

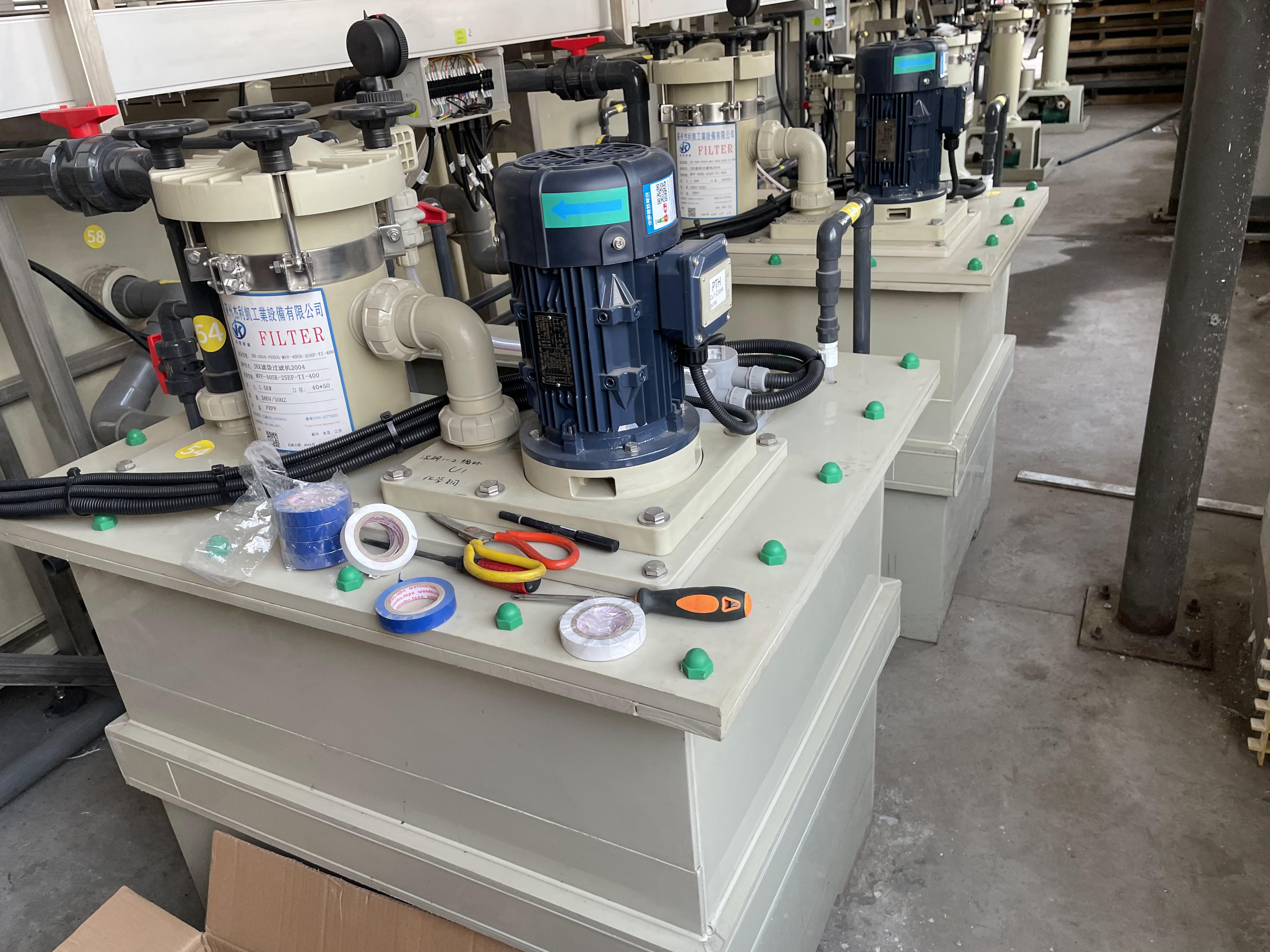

Optional Filter, Auto regeneration system; Cooling chiller;waste gas scrubber(acid fume treatment)
