PCB Pumice brushing machine

Description

Pumice Brushing machine is waiting for you.

‍

The brushing module is constructed with a robust stainless steel frame, other plastic part made of PVC sheets for excellent corrosion resistance.

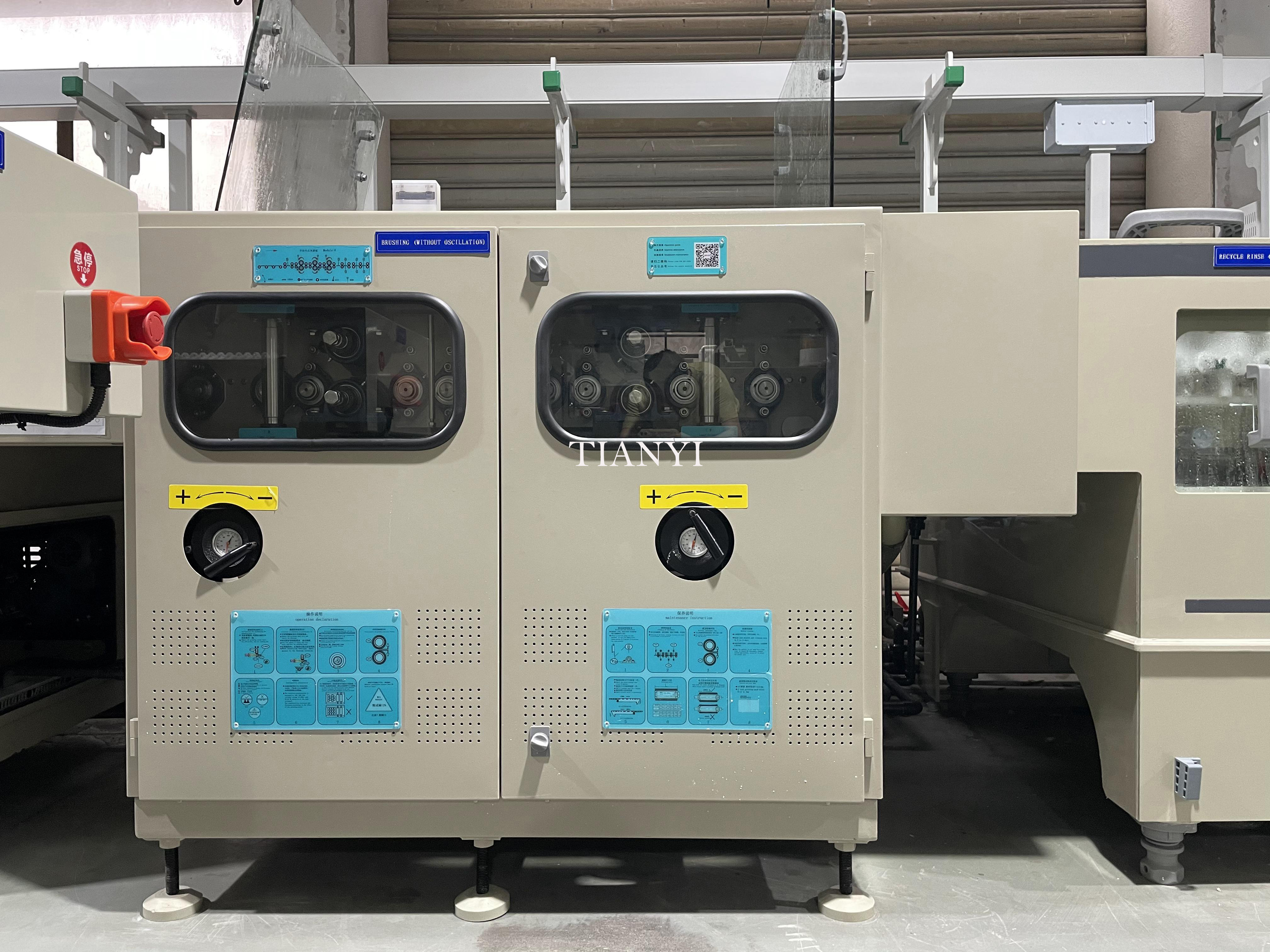

1: Pumice Mechanism:

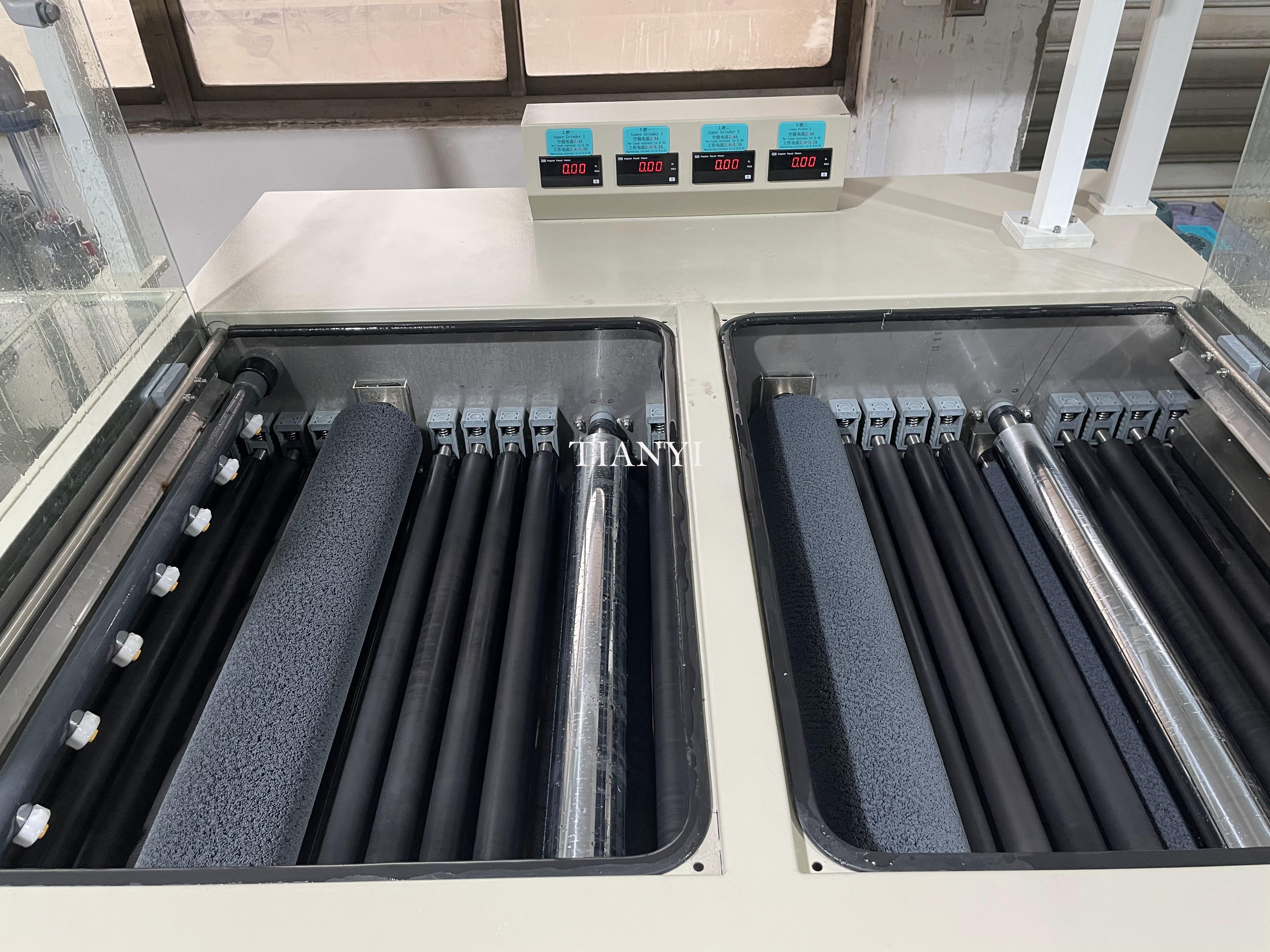

1-01 Brush Wheel Shafts: 6 Shafts, Material: SUS304

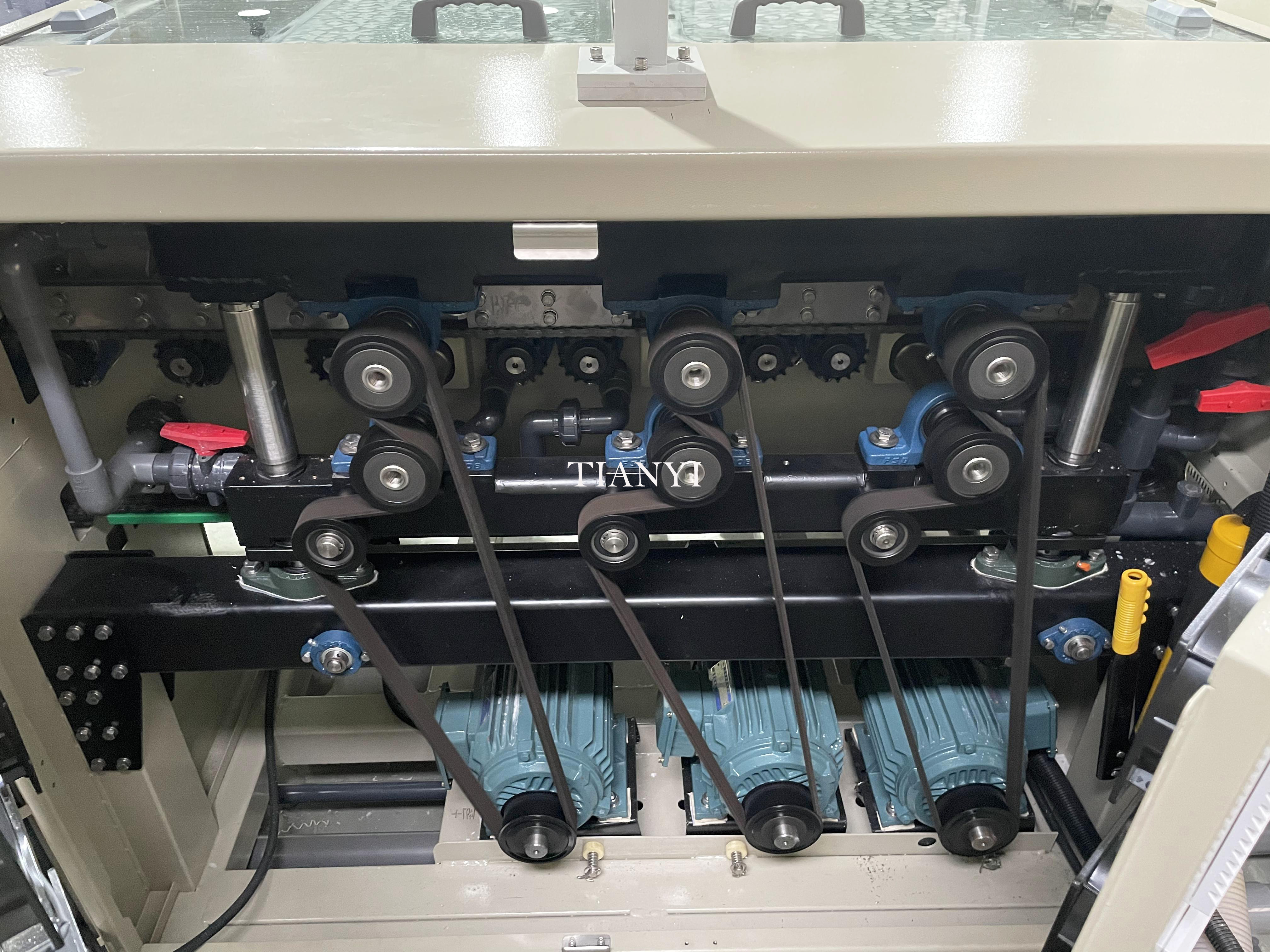

1-02 Brush Wheel Drive Motor Horsepower: 1.1kW x 3 Grinding Wheel Motors

1-03 Brush Wheel Replacement Notification: Mechanized (Micro-contact Switch)

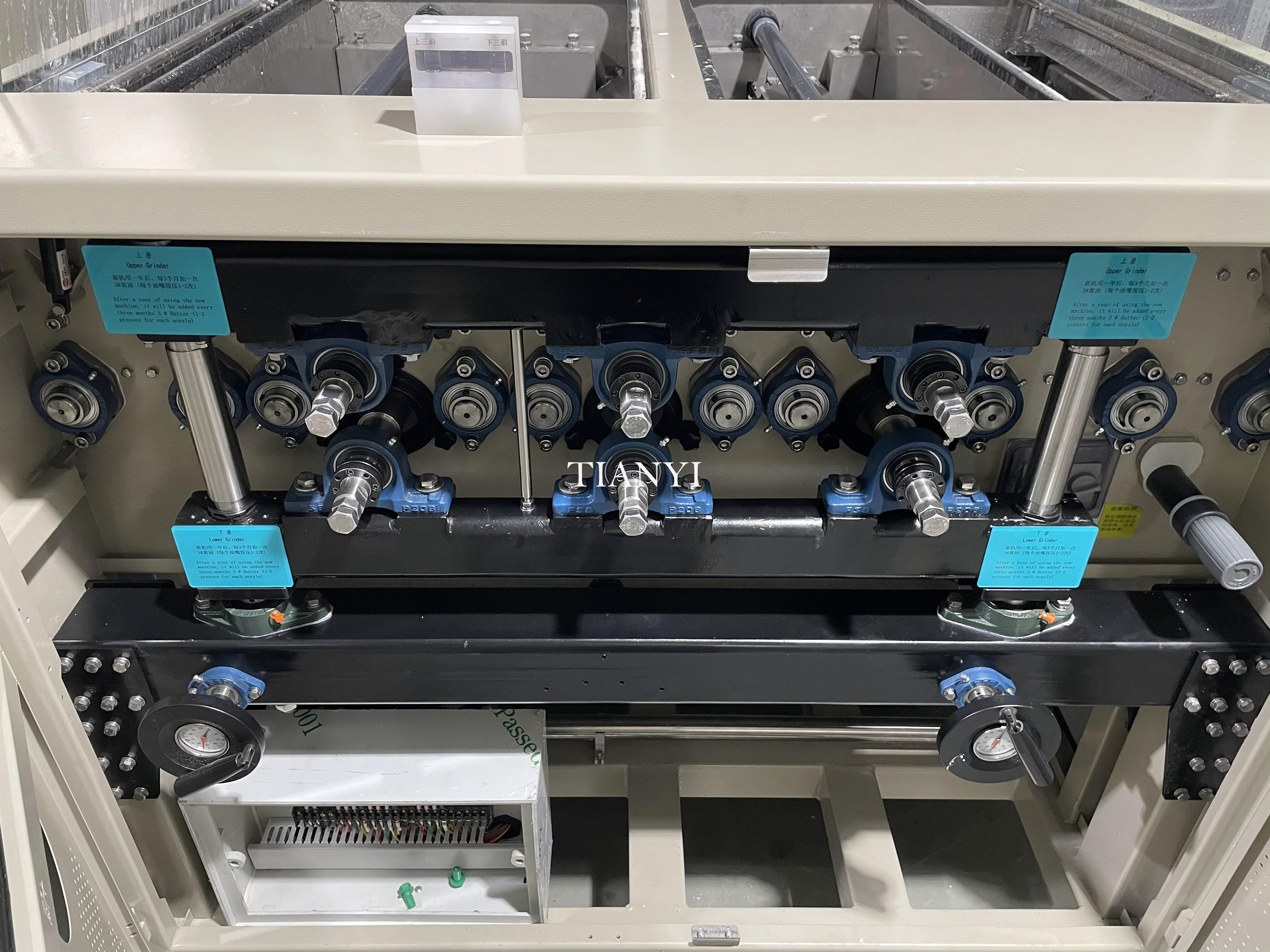

1-04 Brush Wheel Pressure Adjustment Motor: AC Servo Motor (750W)

1-05 Brush Wheel Pressure Adjustment Principle: Automatic Voltage Adjustment Based on Motor Power

2: Spraying Mechanism:

2-01 Spray Nozzles: 5 upper nozzles, 2 lower nozzles (Plastic)

2-02 Equipped with a mixture tank and a cleaning tank.3: Brush Wheel Dimensions

3-01 Acceptable Brush Wheel Type: No. 0 Wrap-around Special BrushSpecial Specifications Negotiable. Two Brush Wheel Trial Available

3-02 Brush Wheel Grid: Outer Diameter: Ø76mmxØ100mmxD45mm

3-03 Brush Wheel Length 1300mm. Through-shaft drive is used throughout.

3-04 Abrasives are made of volcanic ash, primarily SiO2, and aluminum oxide, primarily Al2O3.

No items found.

Specifications

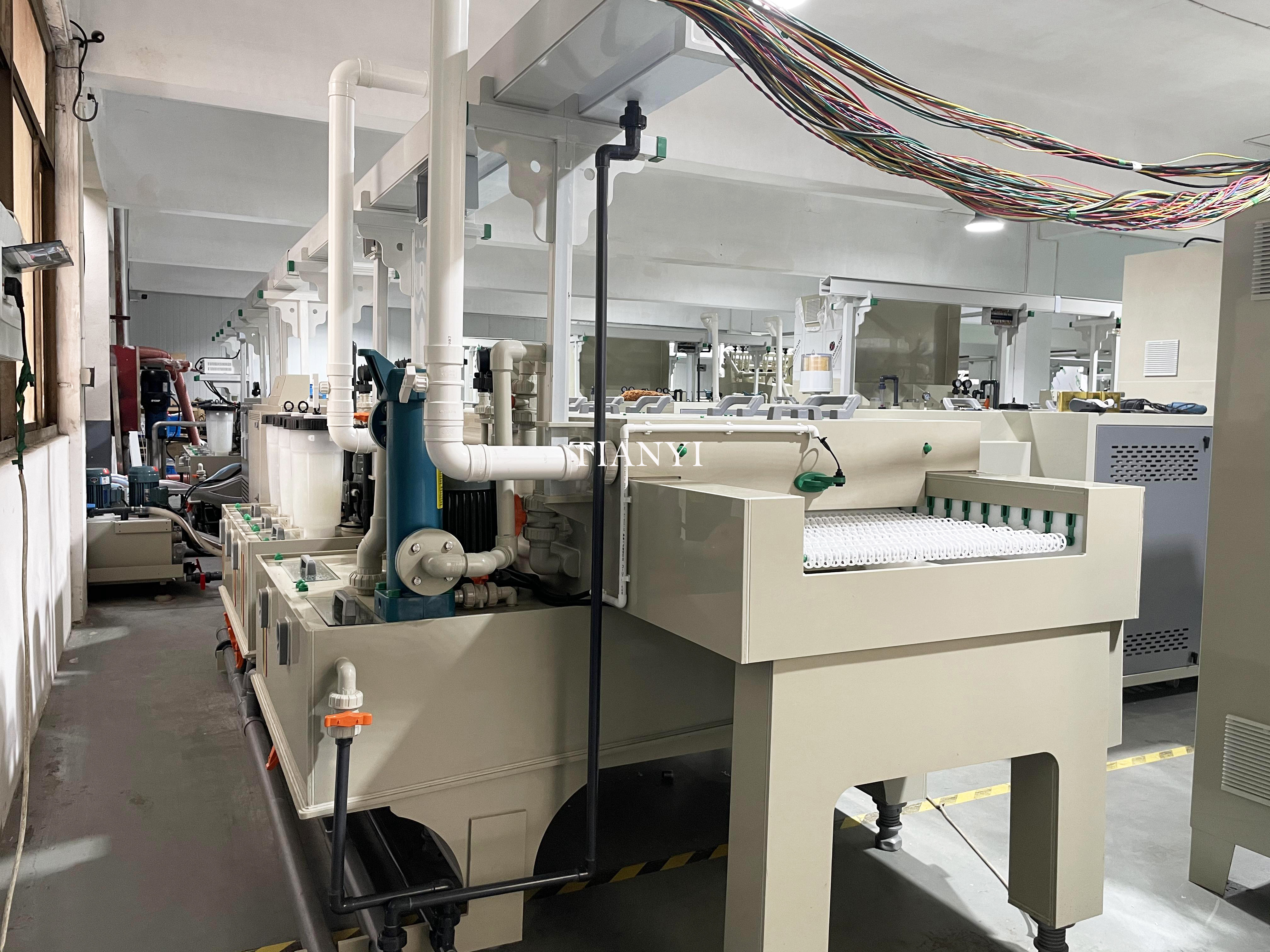

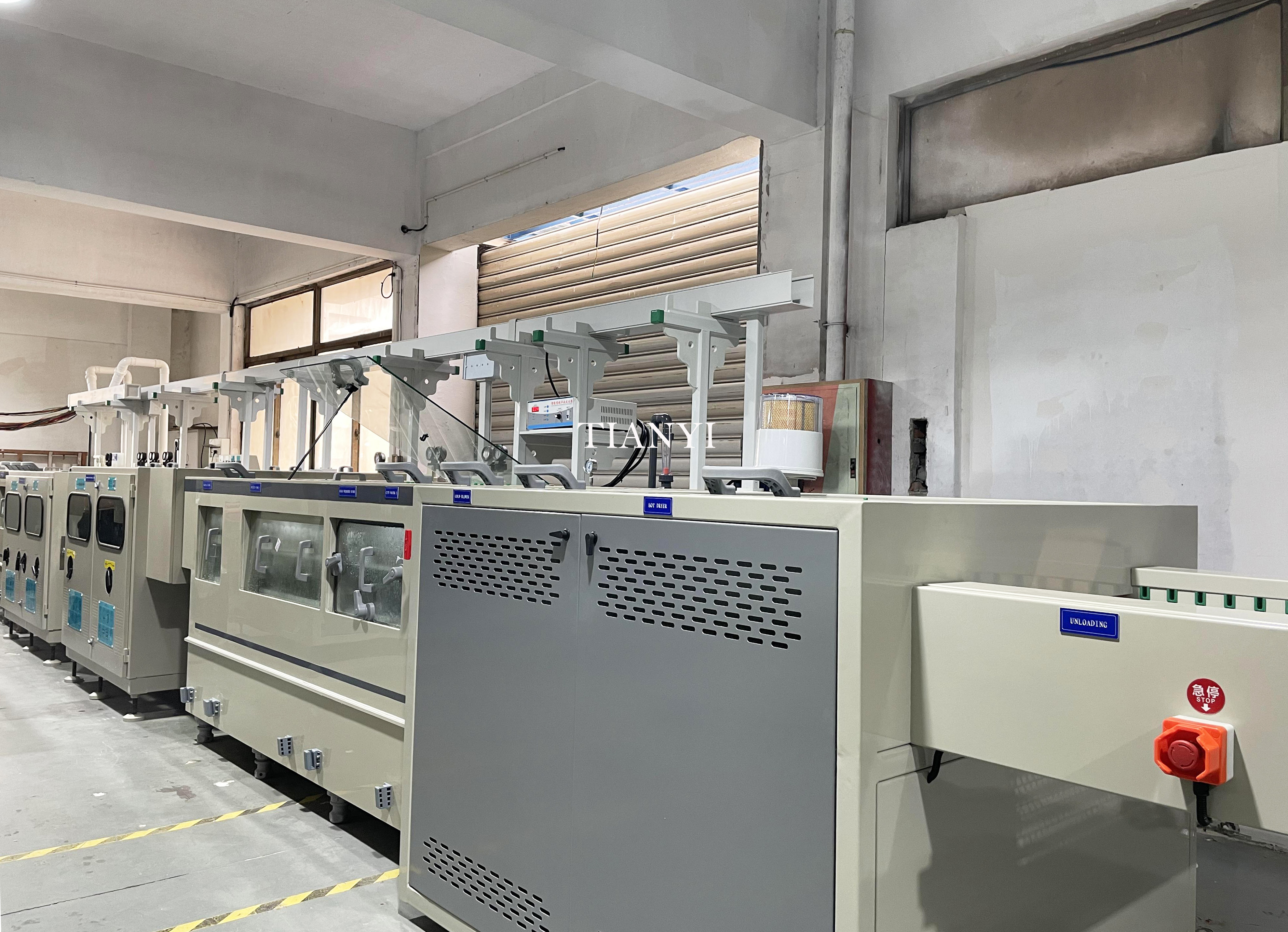

Pumice brushing machine process includes Loading → Acidwashing → Recycle water washing(1/2/3) → DI water washing1 → Brushing → Pumice brushing → Recycle waterwashing(4/5/6) → DI water washing 2 → Squeezing → Cold blower → Hot air drying → Unloading

Dimension L11,591xW2350xH2200MM

Effective working width 740mm

Brushing heating/cooling None

Brushing motor 1.1kW x 3 Grinding Wheel Motors

Total power consumption 45W

Guarantee 1year

Optional Auto loader and Unloader, Copper filter unit
