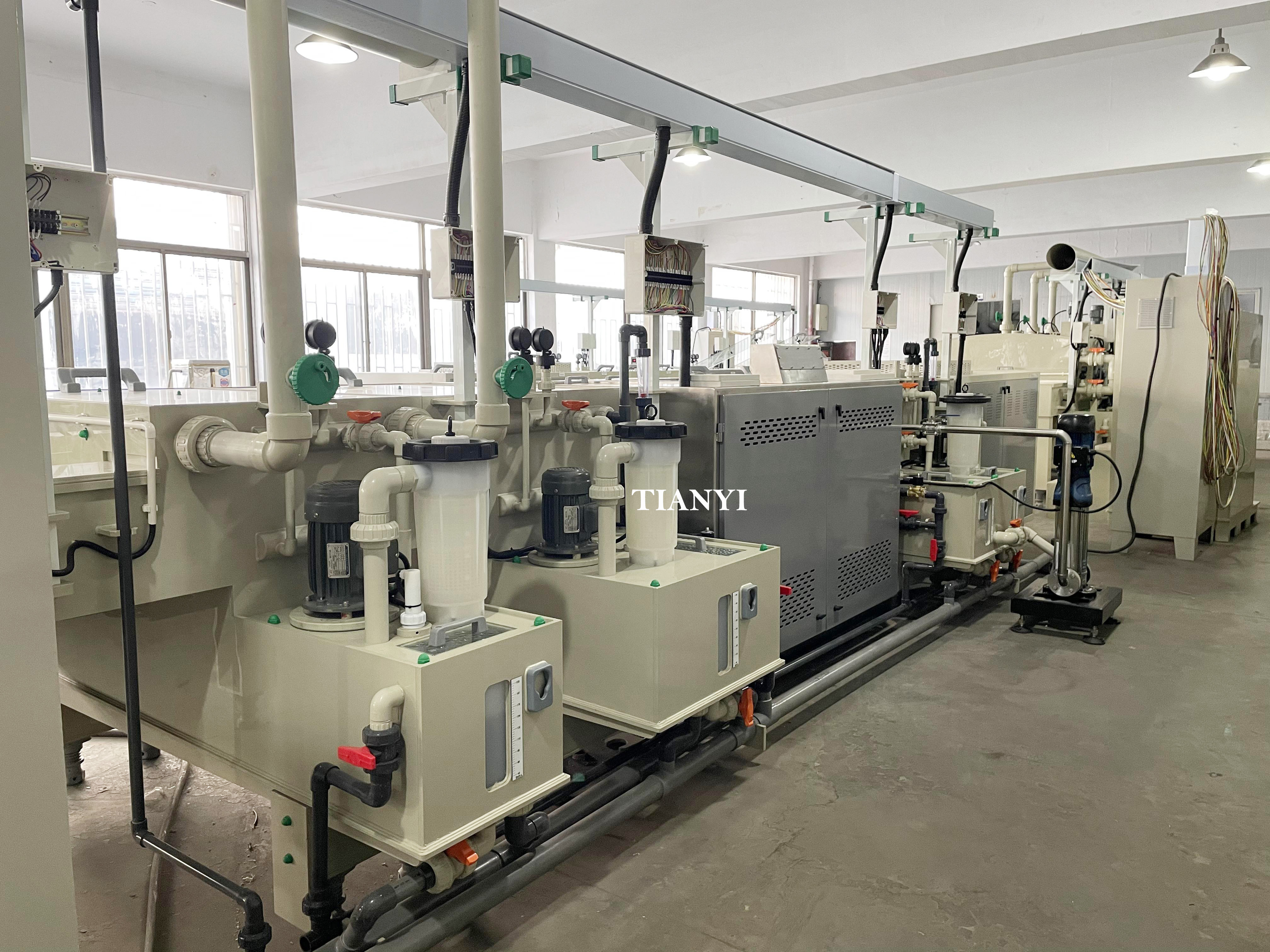

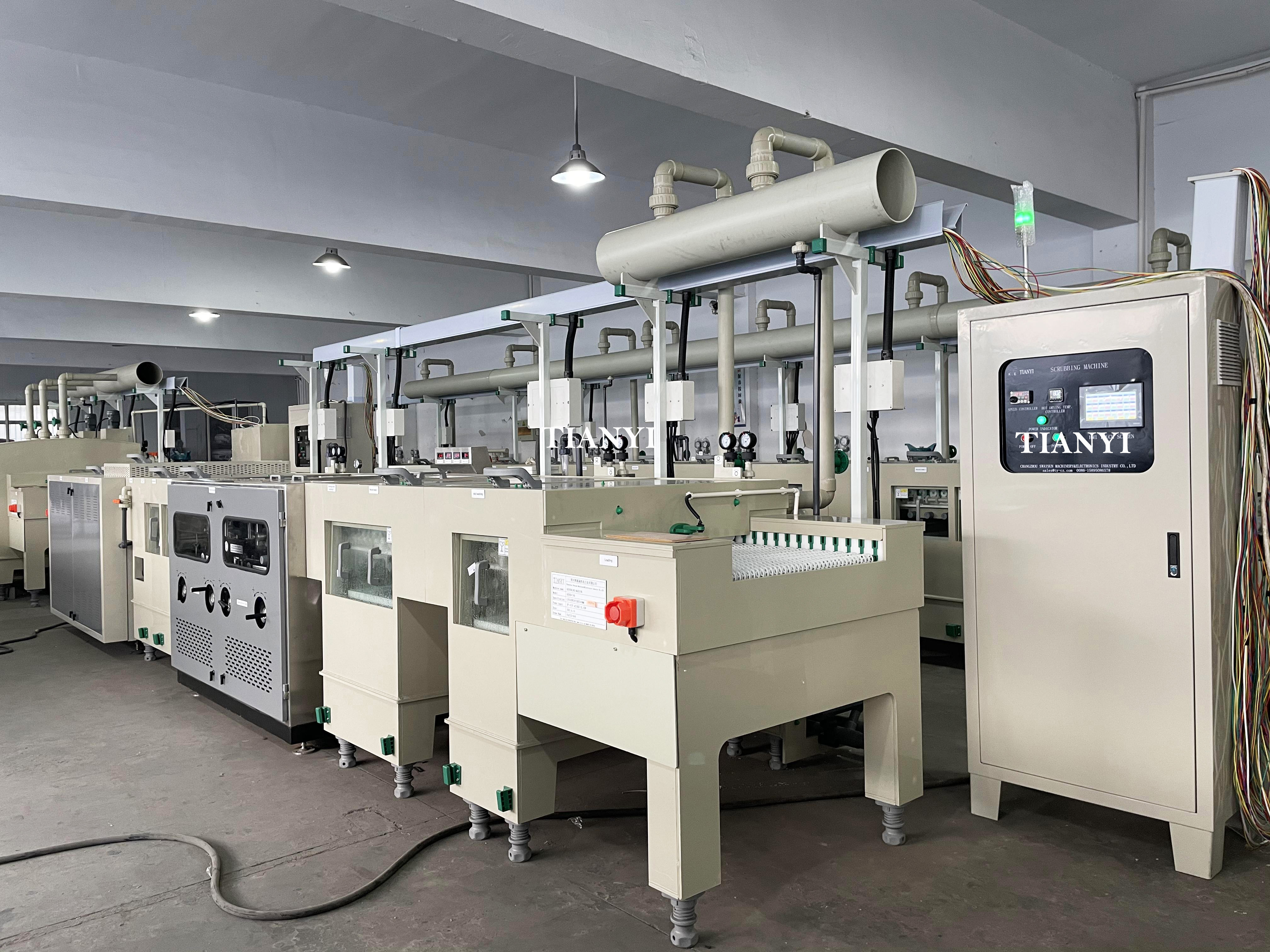

PCB Scrubbing machine

Description

Scrubbing machine is waiting for you.

‍

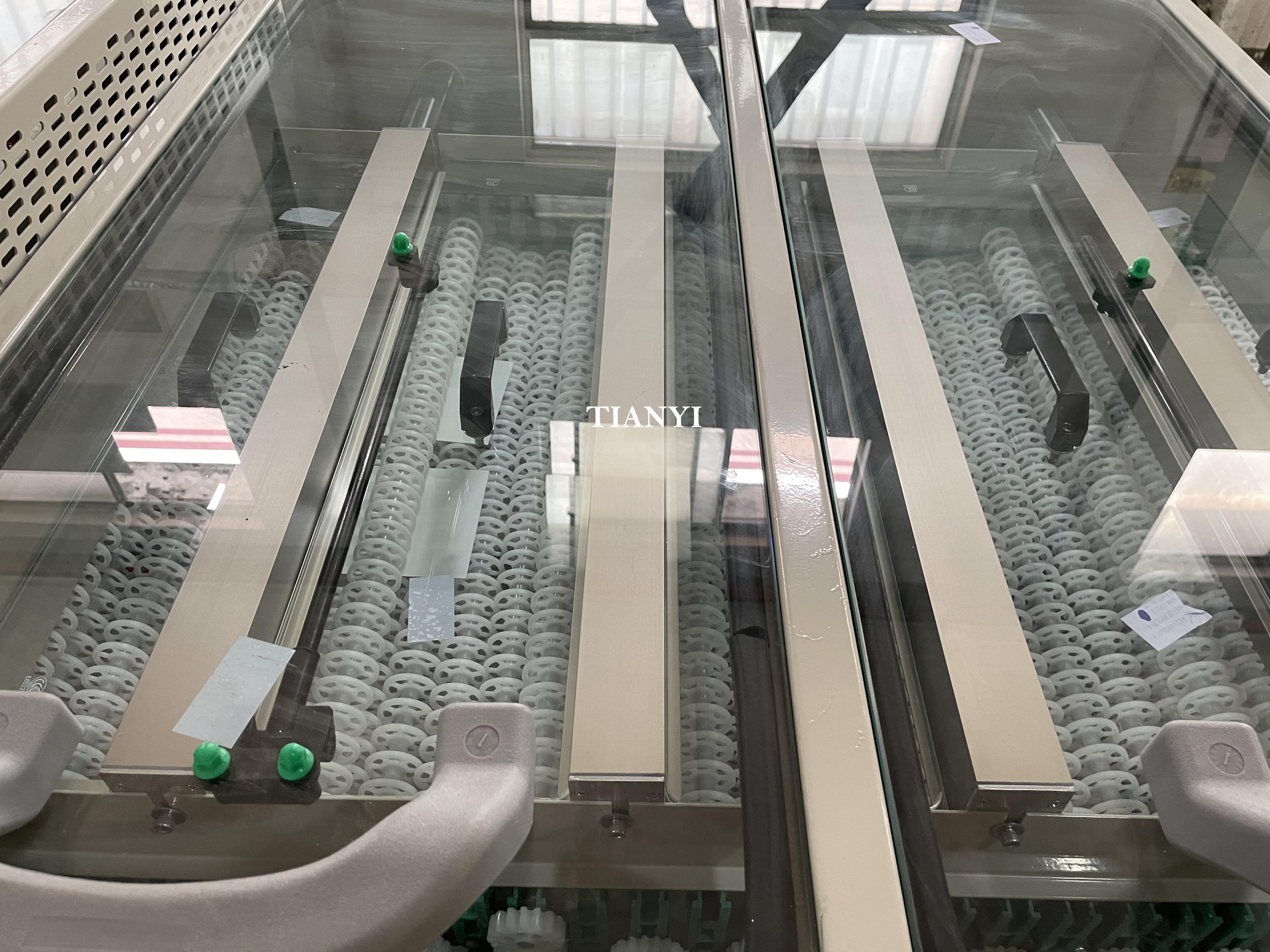

The scrubbing module is constructed with a robust stainless steel frame, other plastic part made of PVC sheets for excellent corrosion resistance.Equipped with non woven brushes and an oscillation system, the scrubbing unit provides uniform and efficient copper polishing for PCB surface treatment.Equipped one PVC water tank for washing water recycling in brushing module.

No items found.

Specifications

Scrubbing machine process includes Loading → Acid washing → Recycle water washing(1/2) → DI water washing → Brushing → High pressure rinse → Recycle water washing(3/4) → DI water washing → Squeezing → Cold blower → Hot air drying → Unloading

Dimension L7830xW2455xH2240MM

Effective working width 740mm

Brushing heating/cooling None

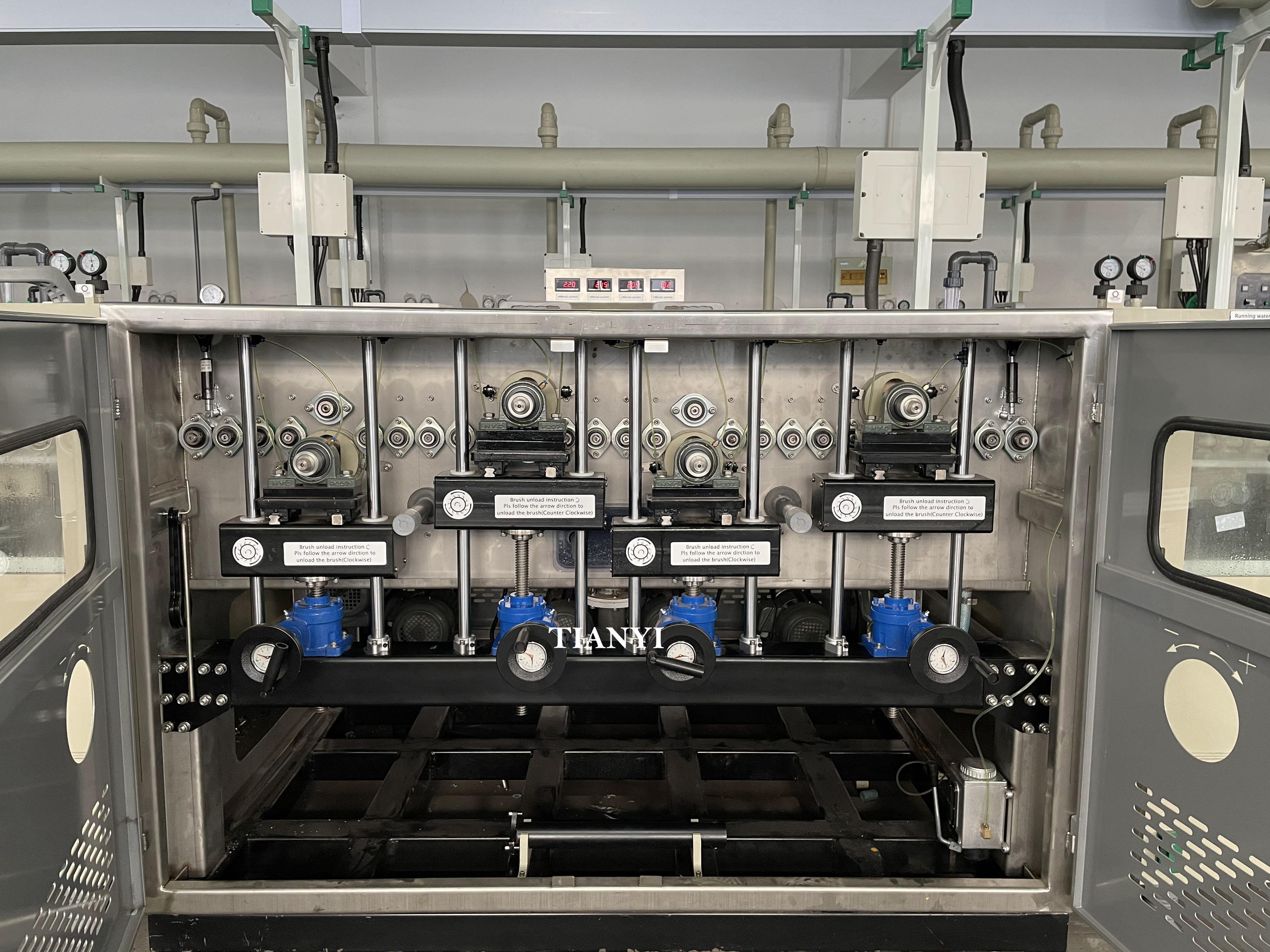

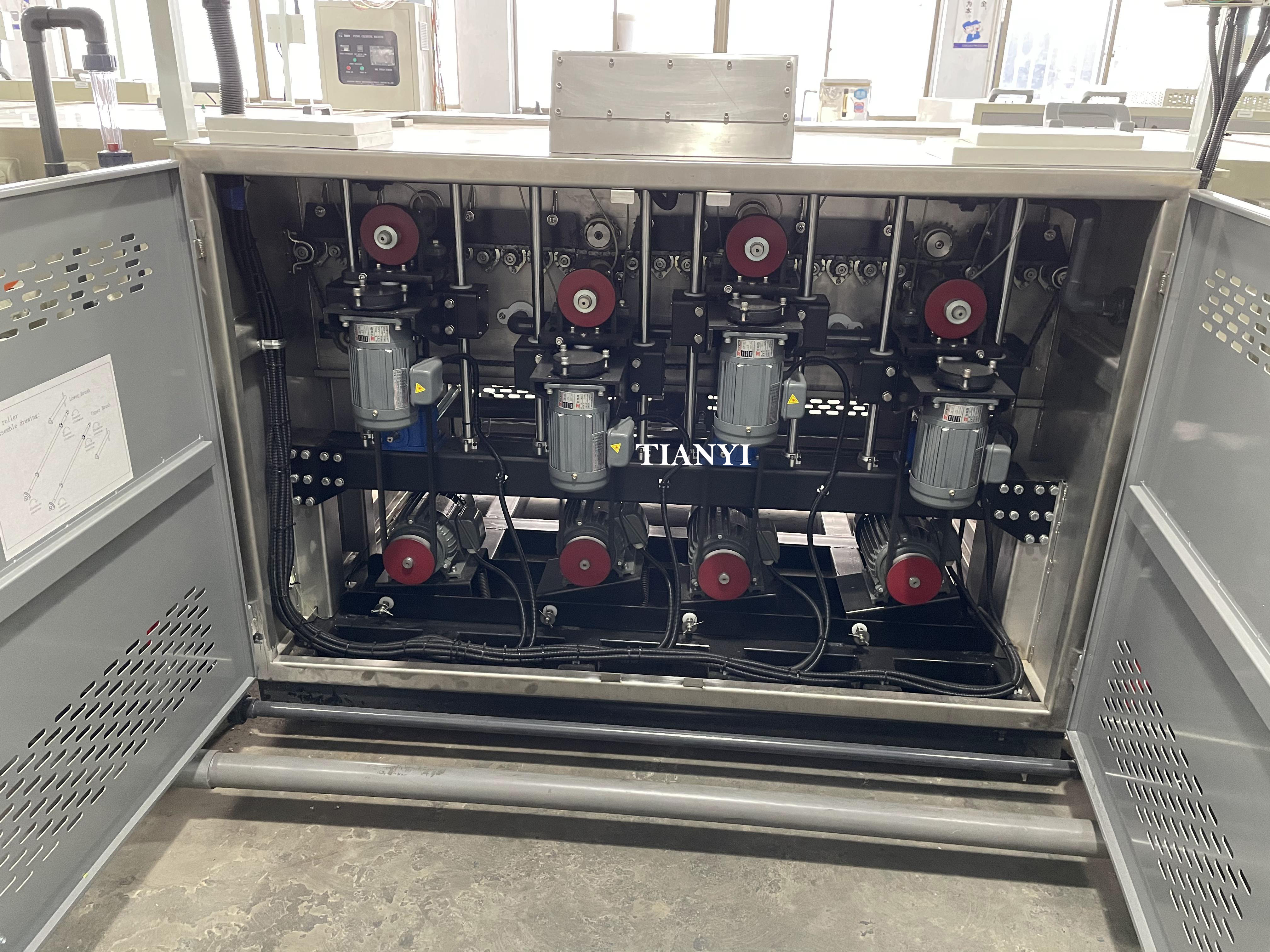

Brushing motor 2.2KW 4SET with 200W 4SET Oscillation motor

Total power consumption 31.5KW

Guarantee 1year

Optional Auto loader and Unloader, Copper recovery unit
