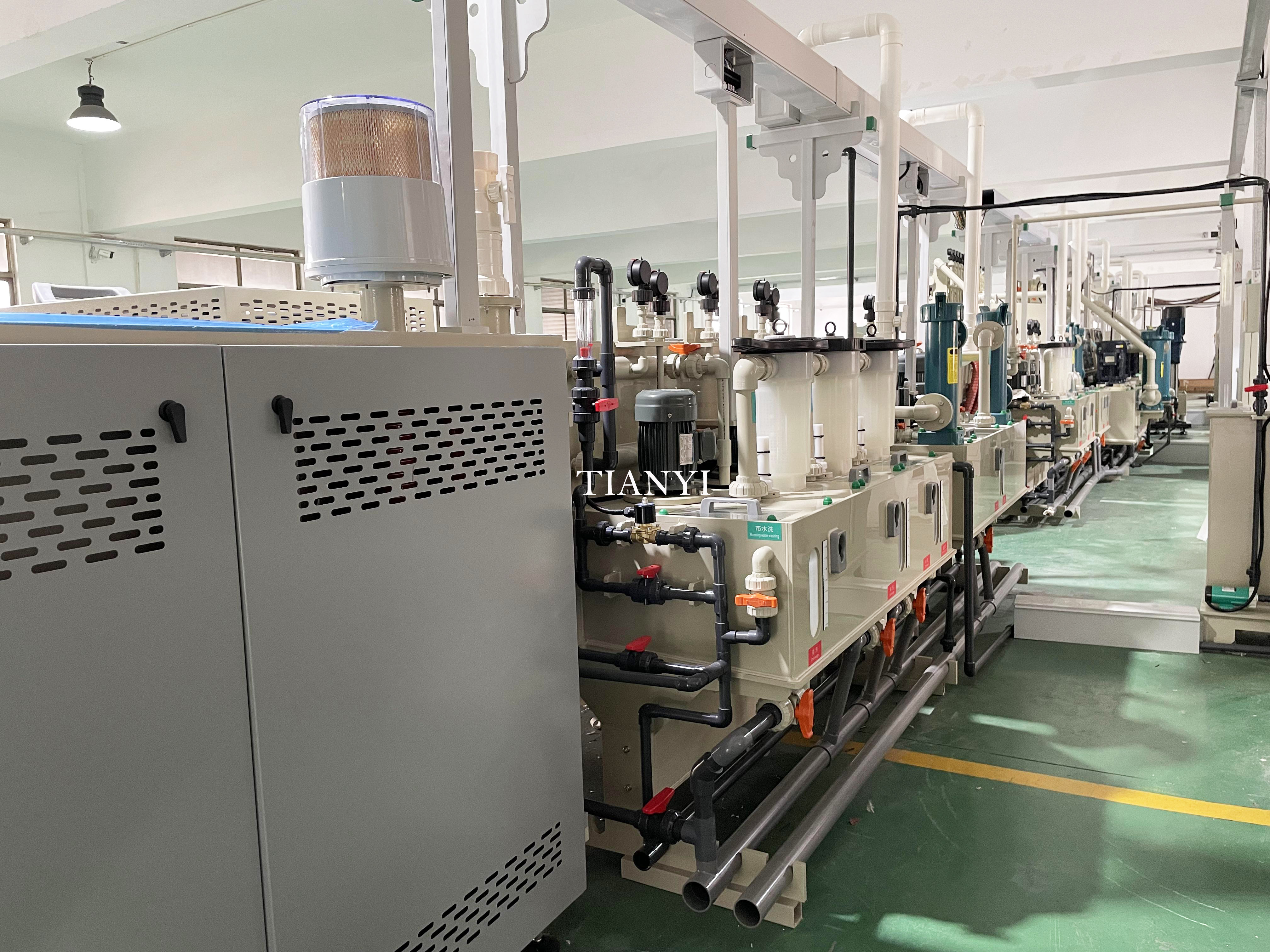

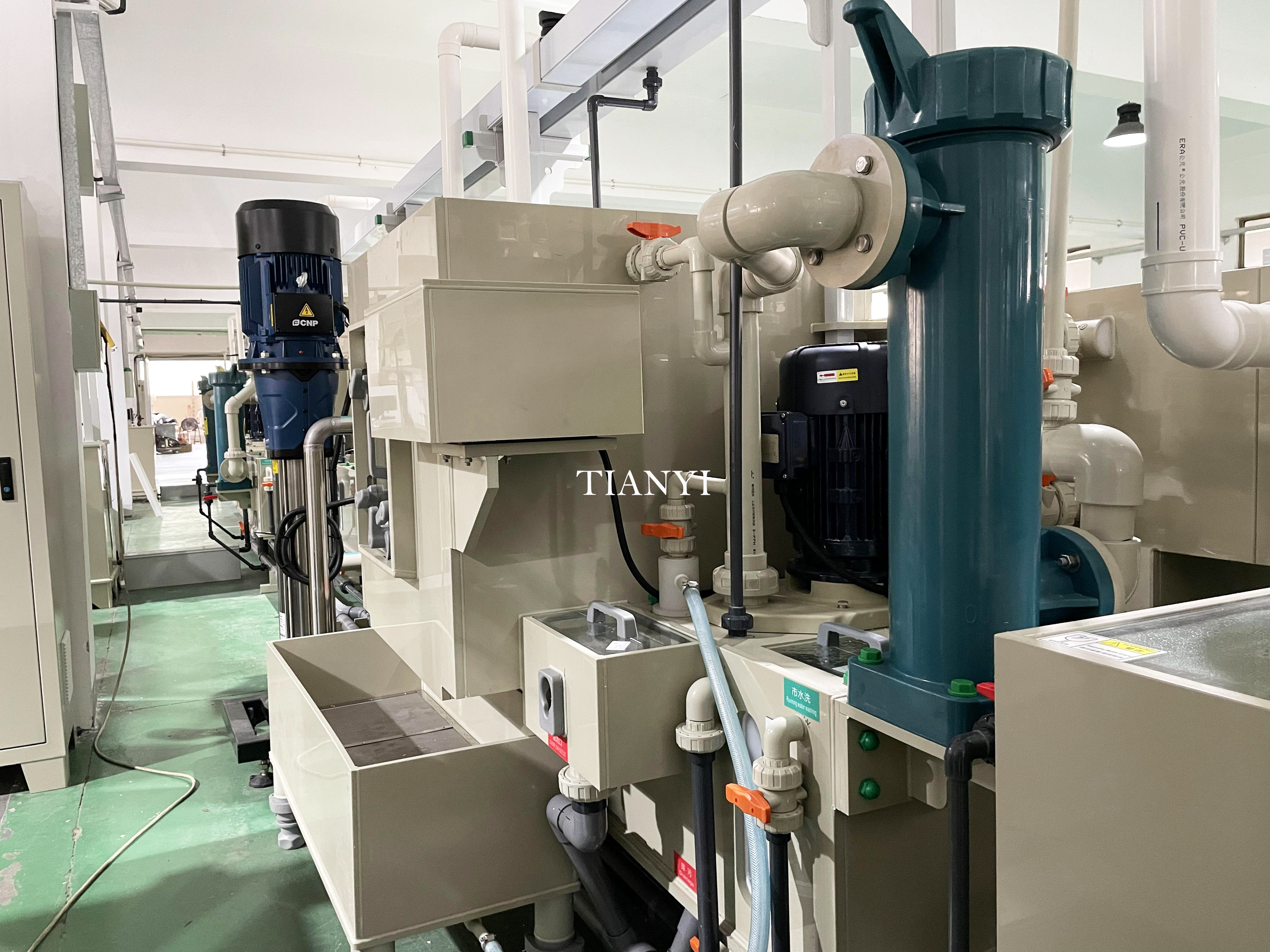

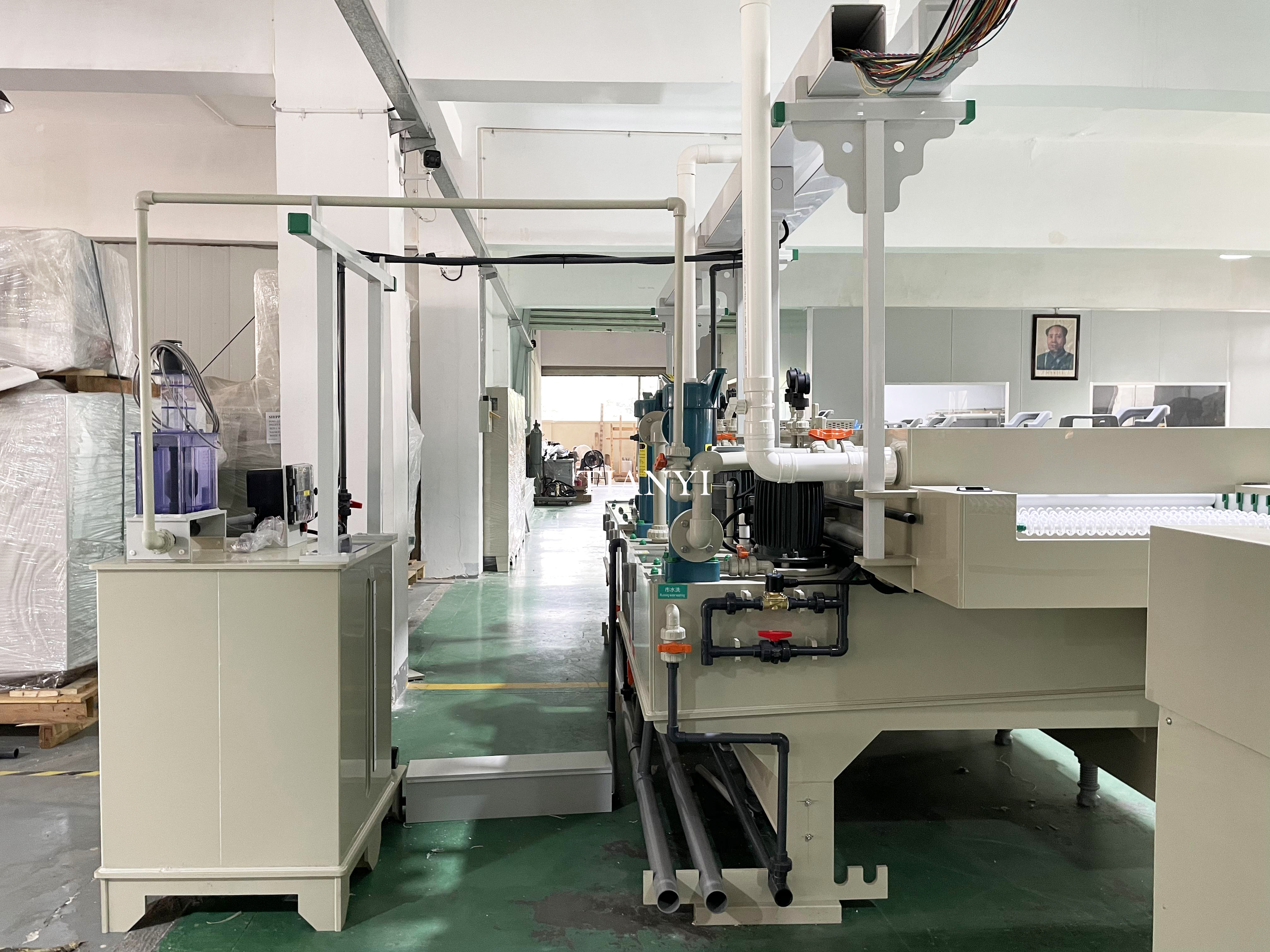

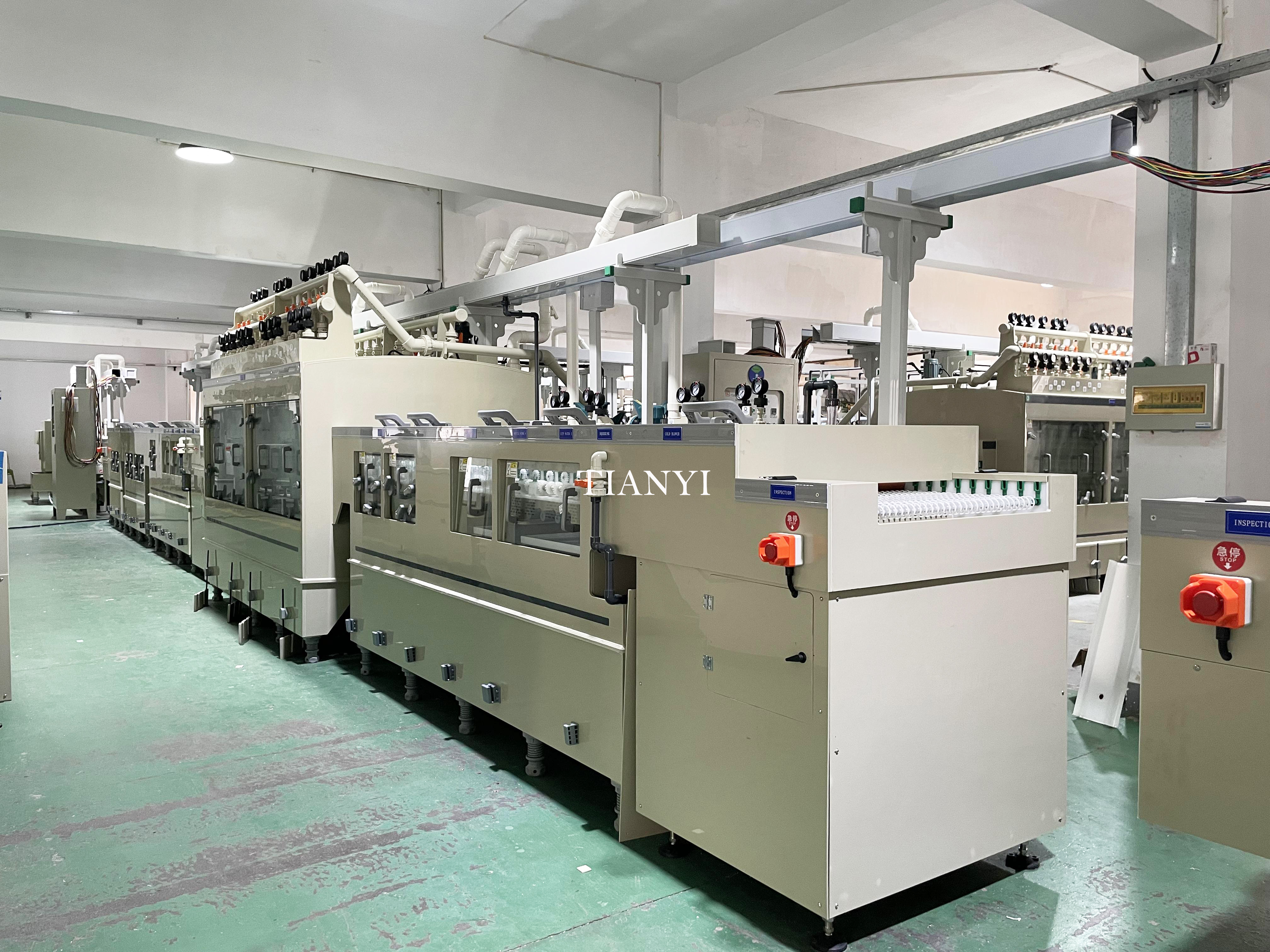

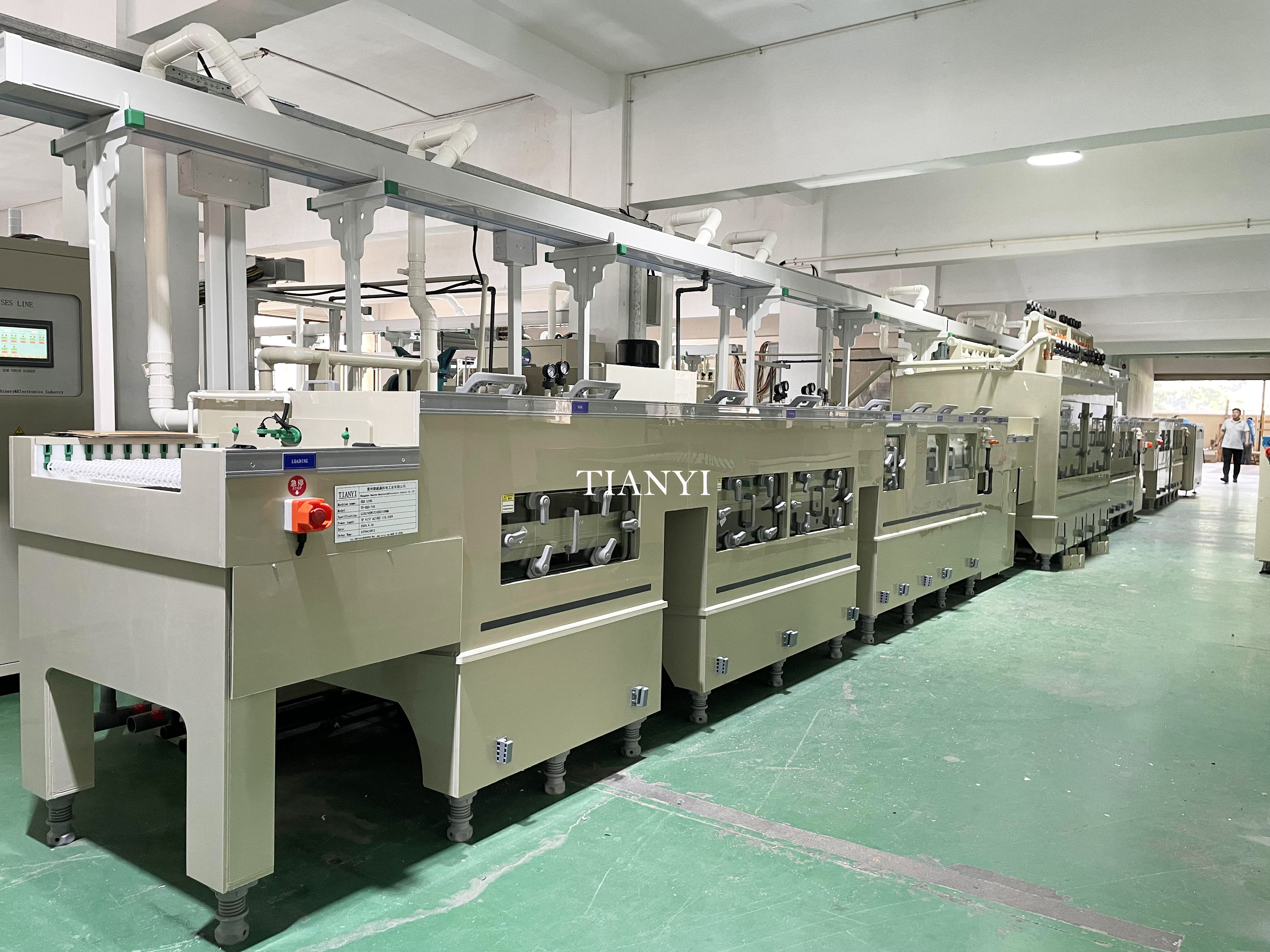

PCB SES LINE WITH VACUUM ETCHING

Description

PCB SES line is waiting for you.

SES line is one whole set machine including film stripping, Etching and Tin stripping process,it removes a thin copper layer from the board surface for better circuit accuracy and plating adhesion.

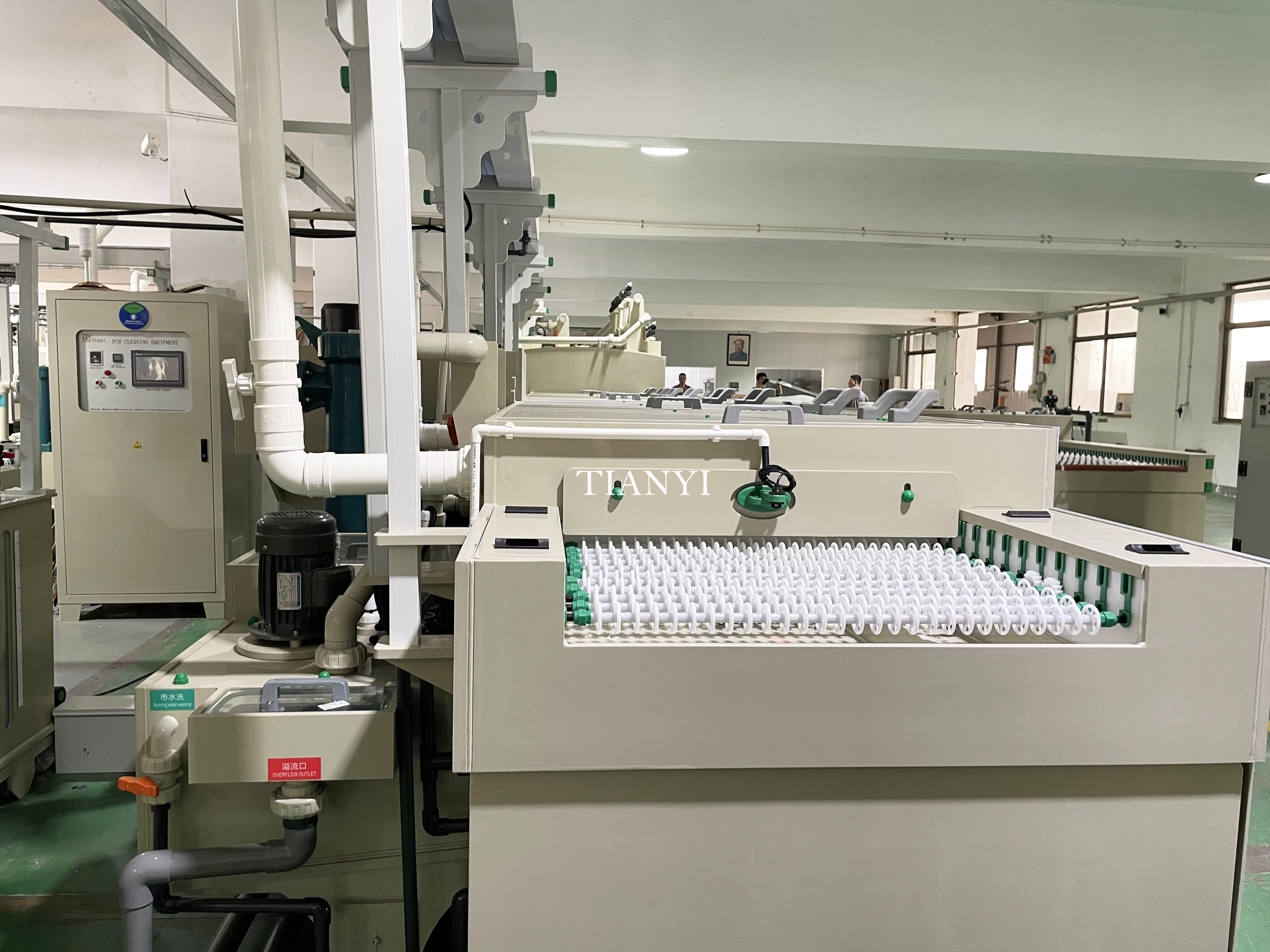

Effective vacuum etching spraying length is 2 meter, constructed with a corrosion-resistant bodyand advanced PP material. It could achieve 1-1.2 meter/min working speed for PCB etching production.

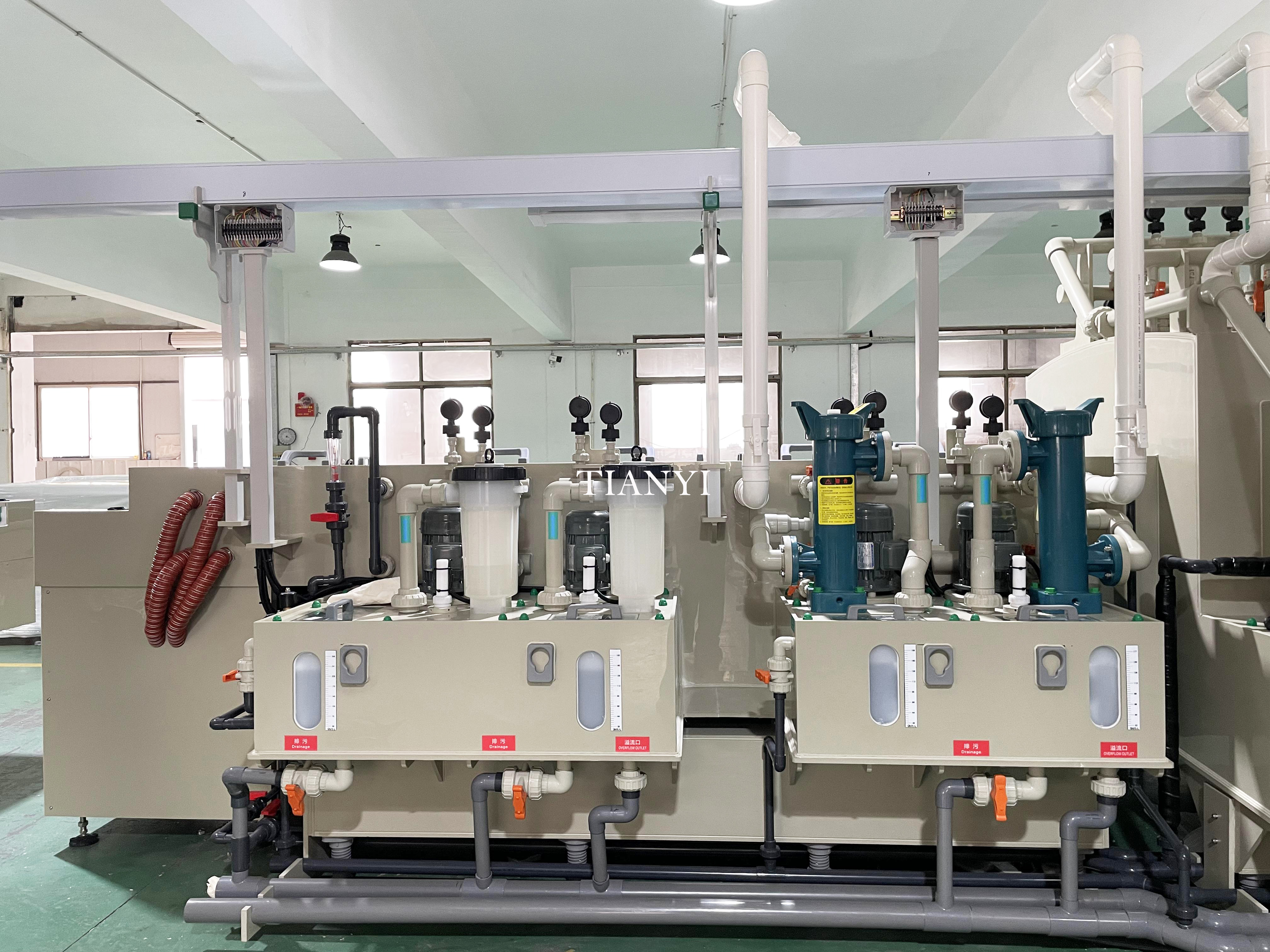

Auto dosing system: Film stripping(NaOH dosing system); alkaline Etching(SG dosing system);Tin stripping(SG dosing system).

No items found.

Specifications

Etching machine process includes Loading → Soak → Film stripping →Recycle washing (1/2/3) → DI water rinsing 1 → Squeezing → Inspection → Vacuum Etching → Recycle washing (4/5/6) → DI water rinsing 2 → Squeezing → Inspection →Tin stripping → Recyclewashing(7/8/9) → DI water rinsing → Squeezing → Cold blower → Hot air drying → Unloading

Dimension L20,230xW2320xH2500MM

Effective working width 740mm

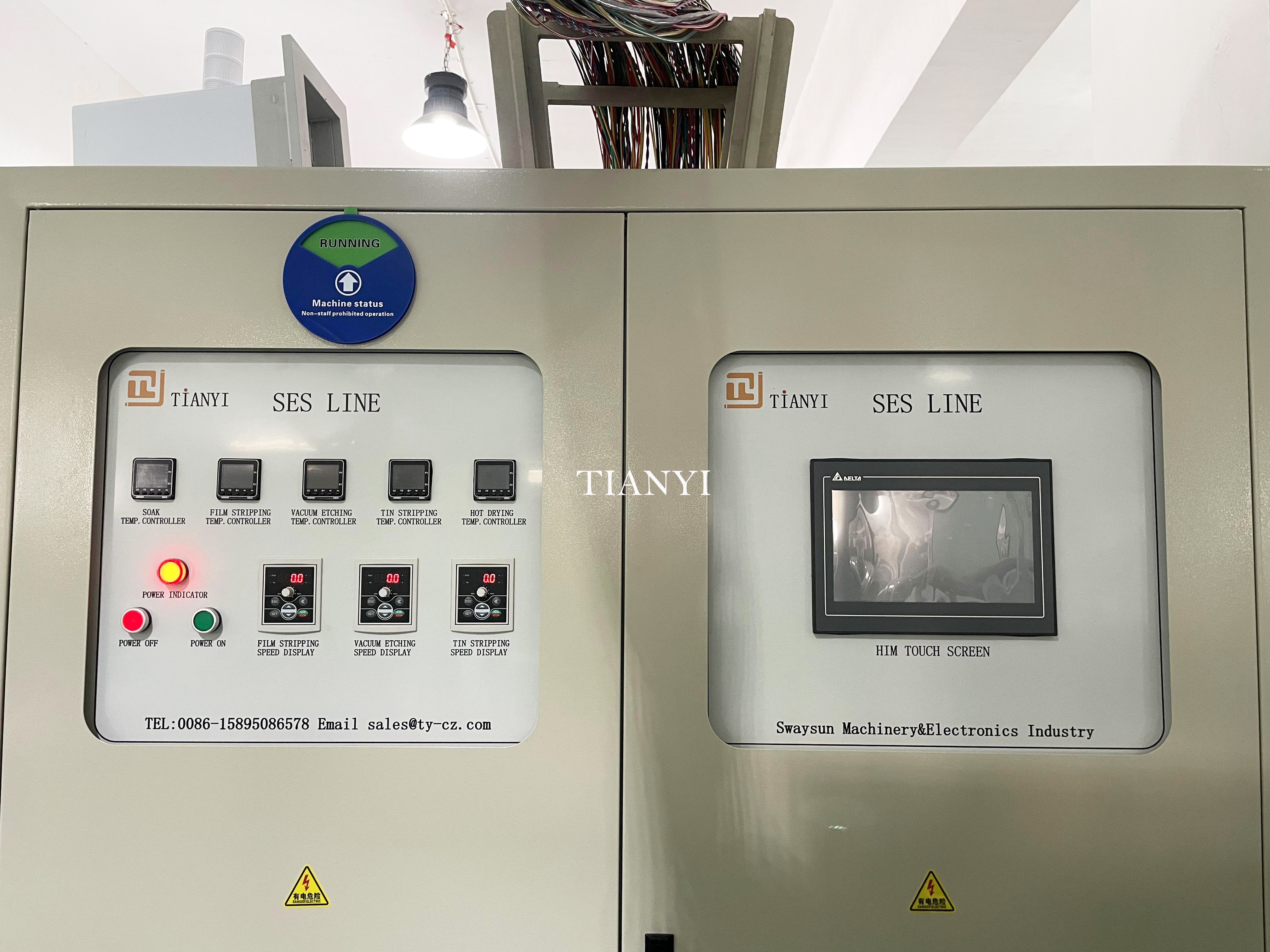

Etching heating/cooling Electric heating with cooling coil

Etching pump 7.5HP 2SET double side Etching

Total power consumption 120.05KW

Guarantee 1year

Optional Auto regeneration system; Cooling chiller; waste gasscrubber(acid fume treatment)
