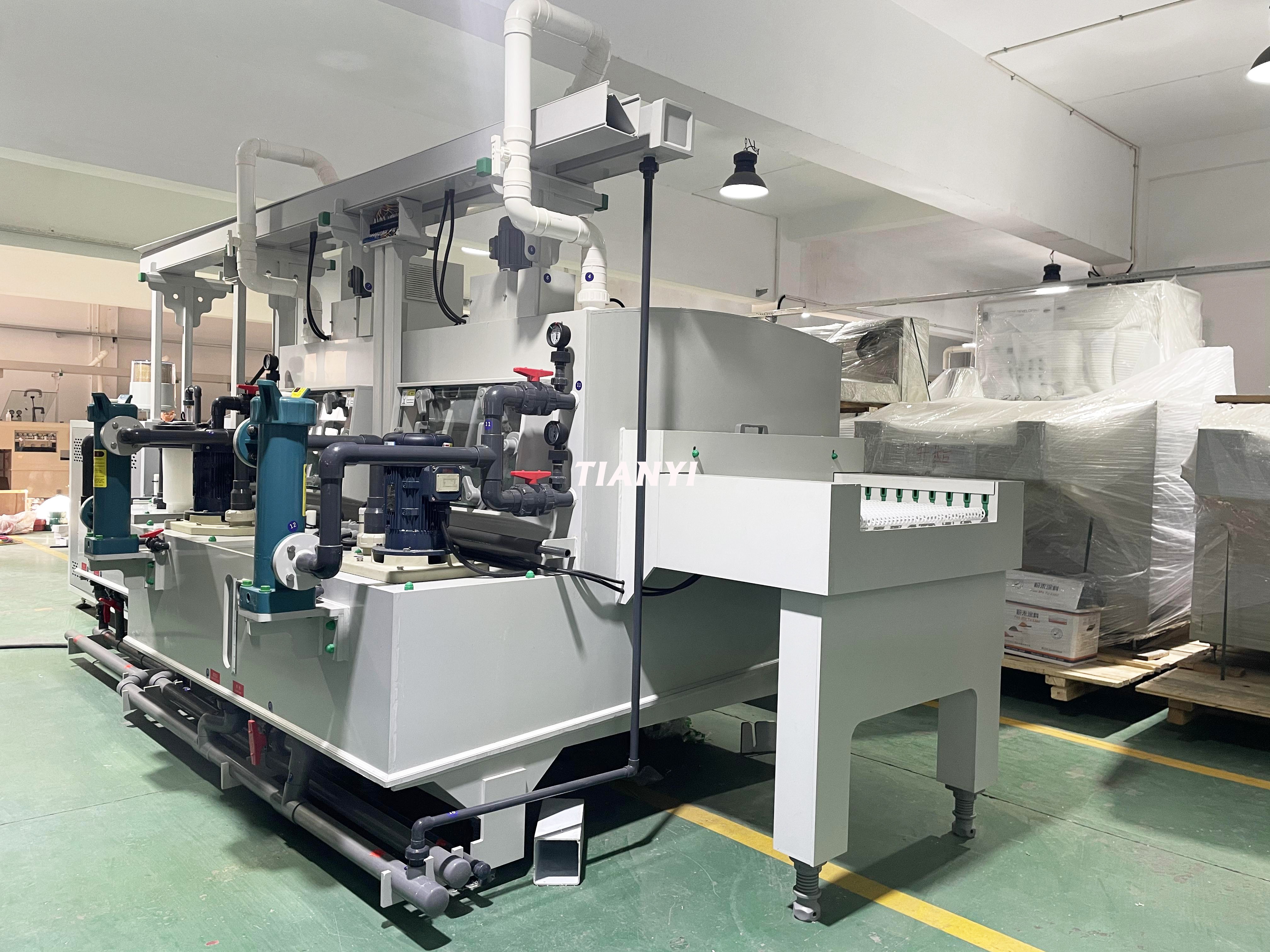

PCB Tin stripping Machine

Description

Tin stripping machine is waiting for you.

‍

Tin stripping machine is working for removing the tin or solder coating from the surface of printed circuit boards after the tin plating or soldering process.With a top quality PVC frame, optional automatic devices: Auto loading & Unloading system; Chemical dosing system; sewage system and tin recovery unit.

No items found.

Specifications

Tin stripping machine process includes Loading → Tinstripping → Recycle water washing(1/2/3) → DI water washing → Squeezing → Cold blower → Hot air drying → Unloading

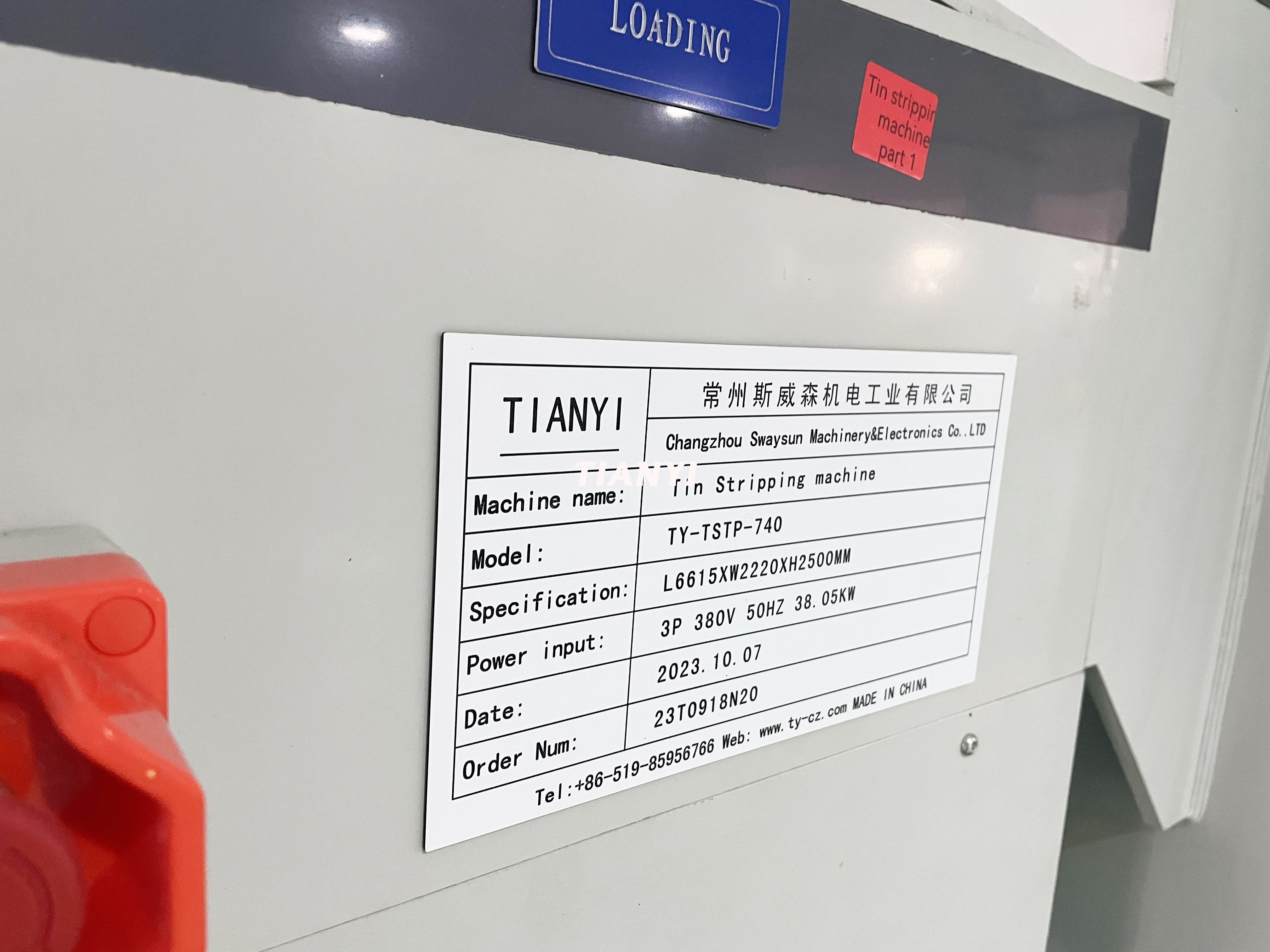

Dimension L6615xW2220xH2500MM

Effective working width 740mm

Stripping heating/cooling Electric heating

Stripping pump 7.5HP 2SET double side Etching

Total power consumption 38.05W

Guarantee 1year

Optional Auto loading & Unloading system; Chemical dosingsystem; sewage system and tin recovery unit
