PCB vacuum SES LINE film stripping Etching and tin stripping machine

Description

PCB SES line iswaiting for you.

‍

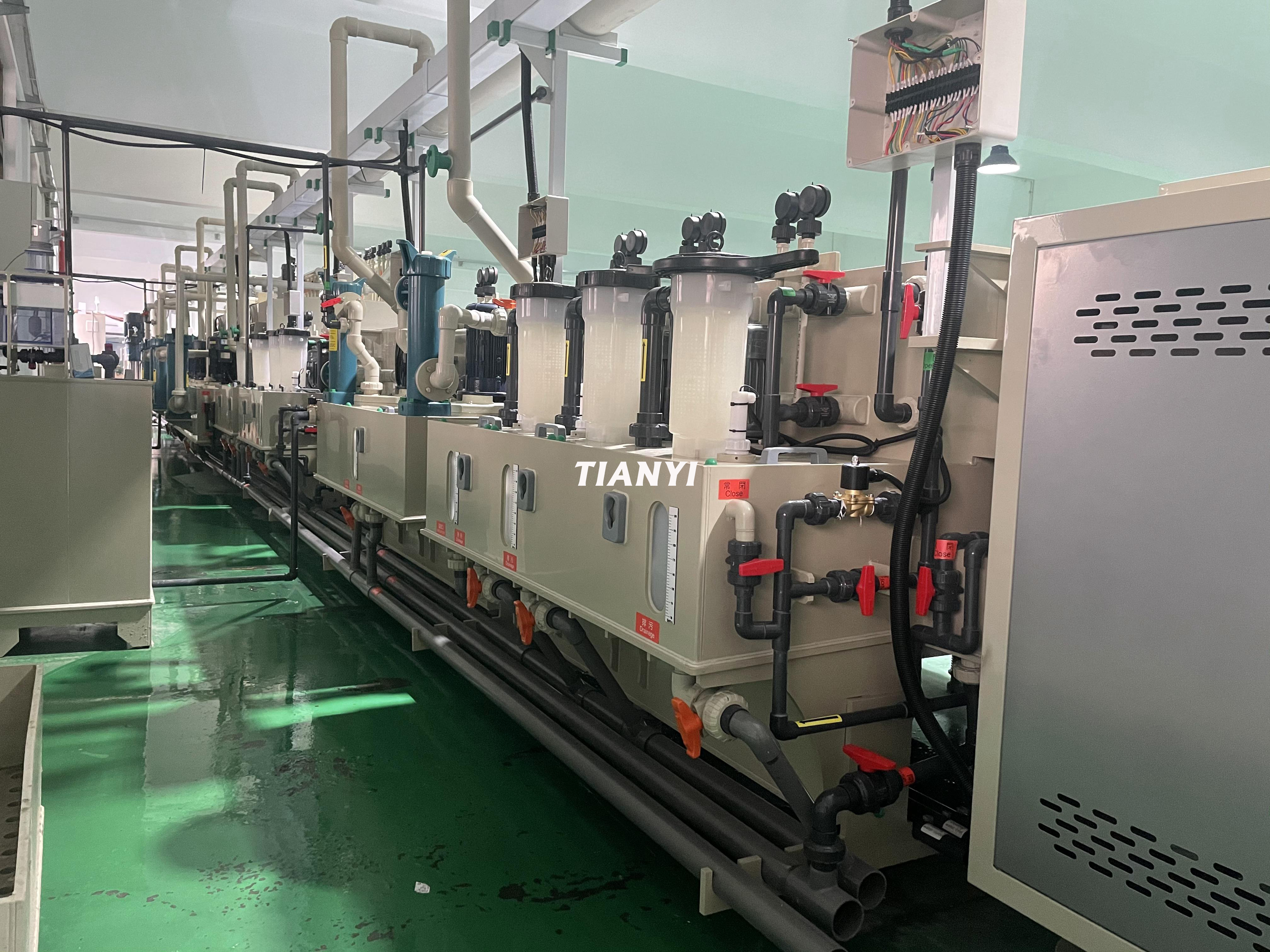

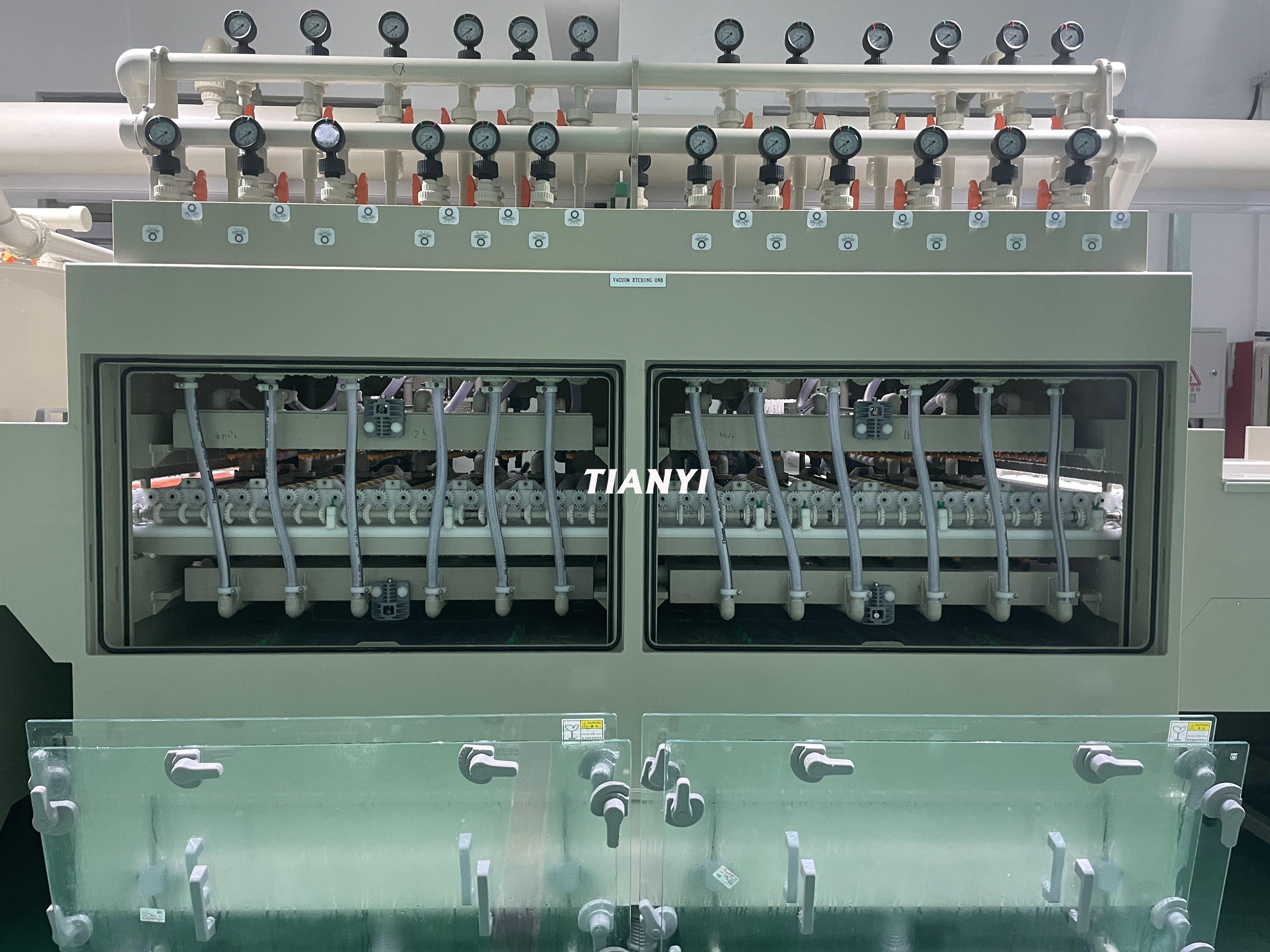

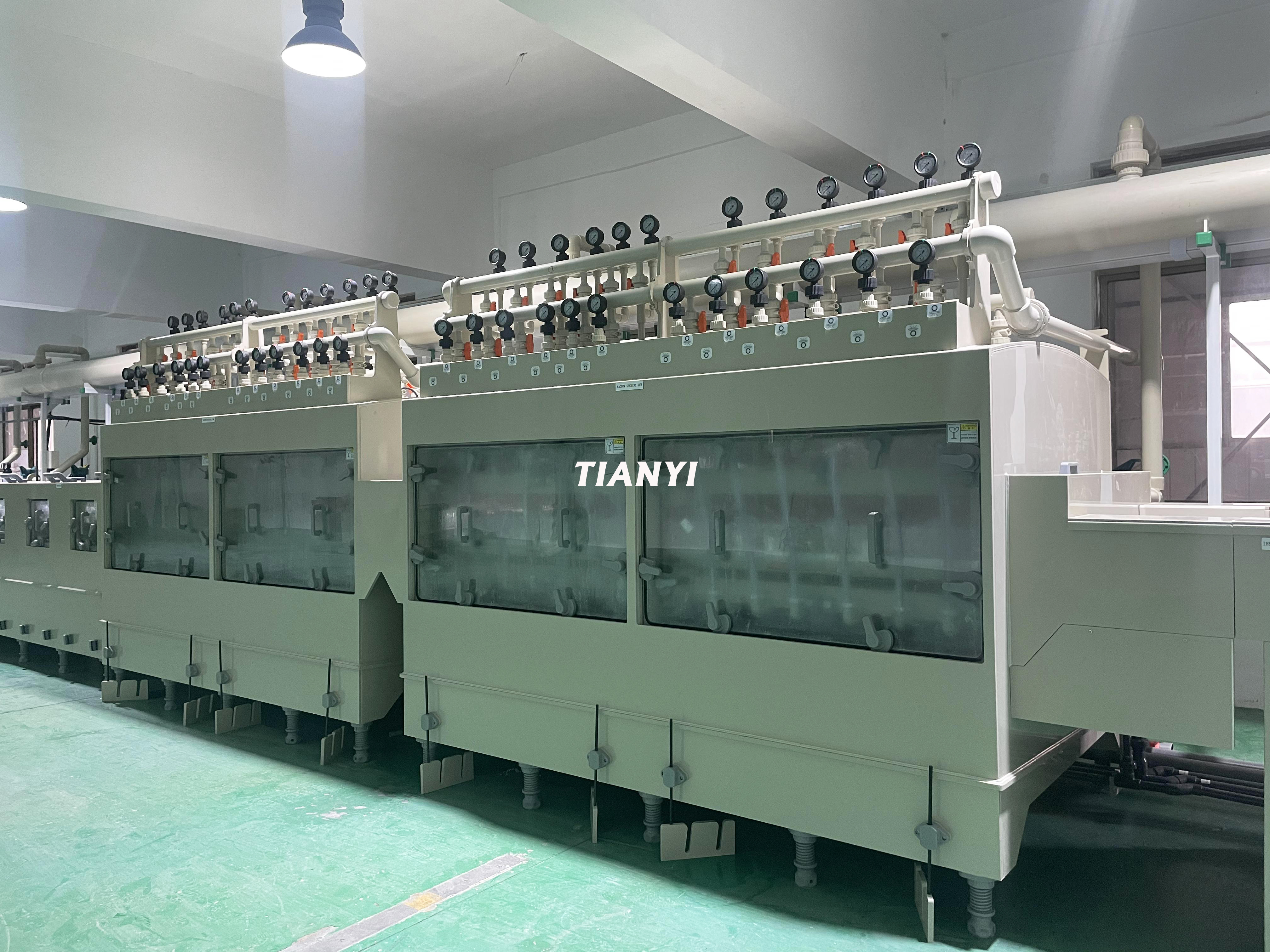

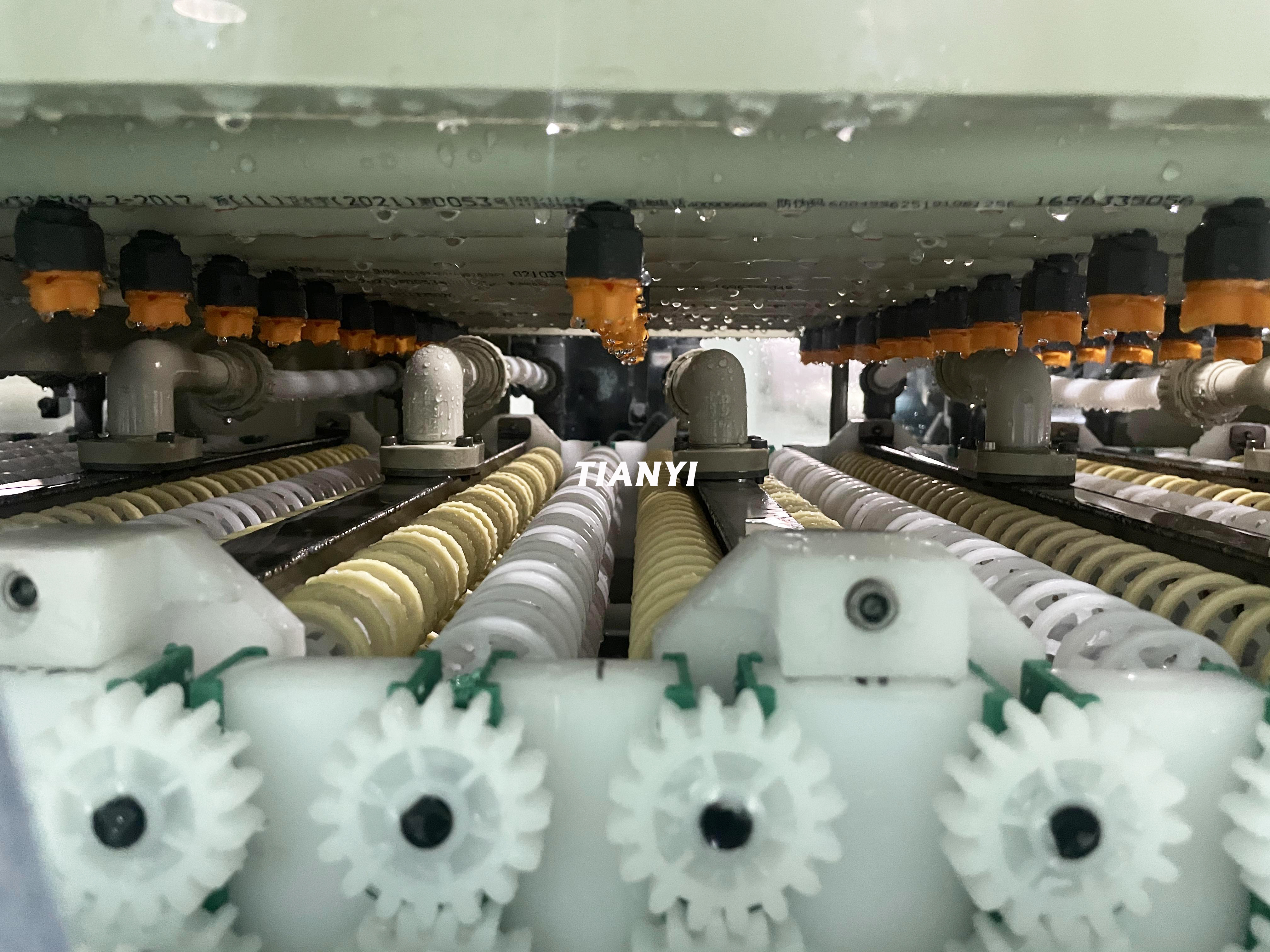

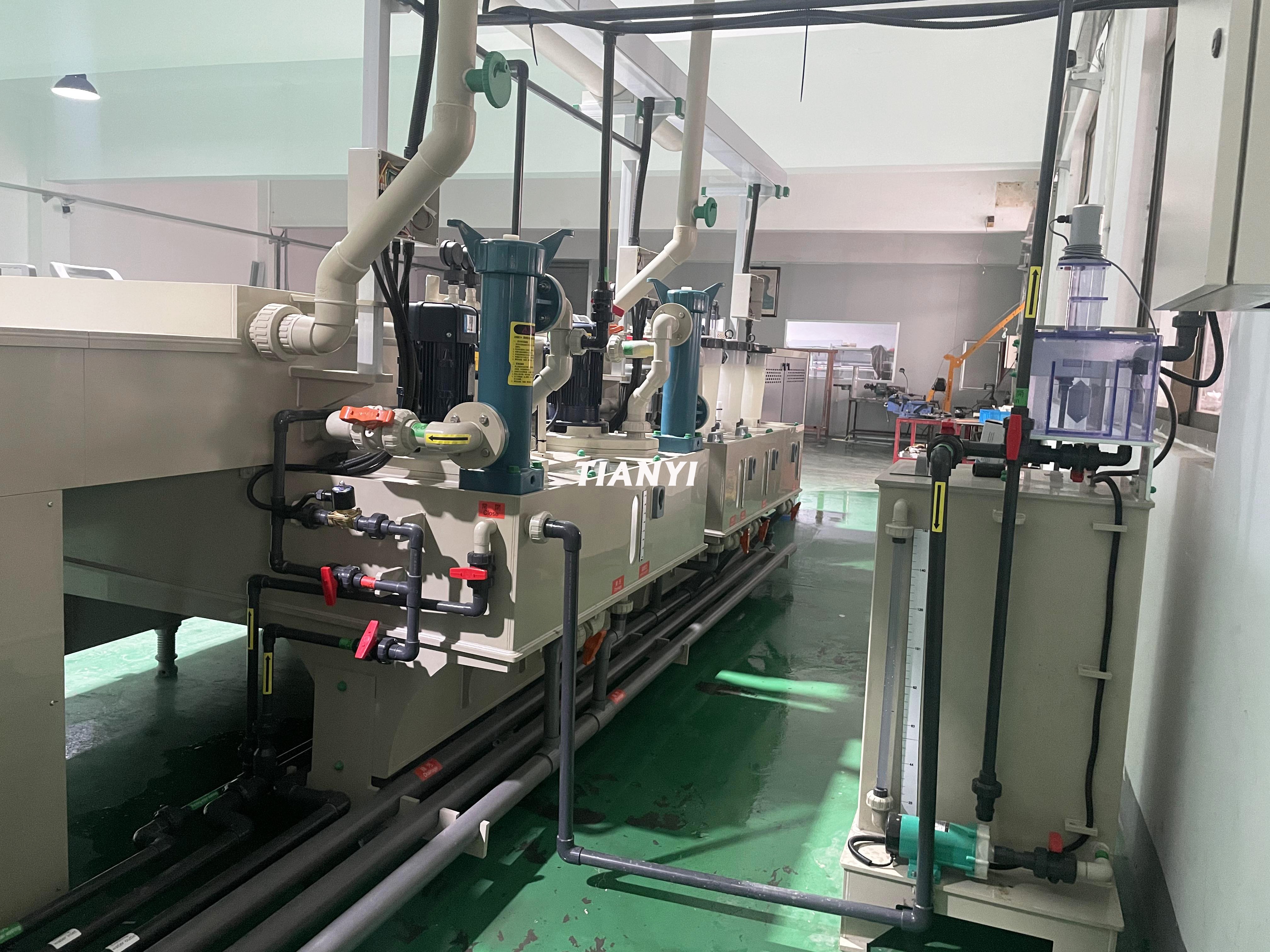

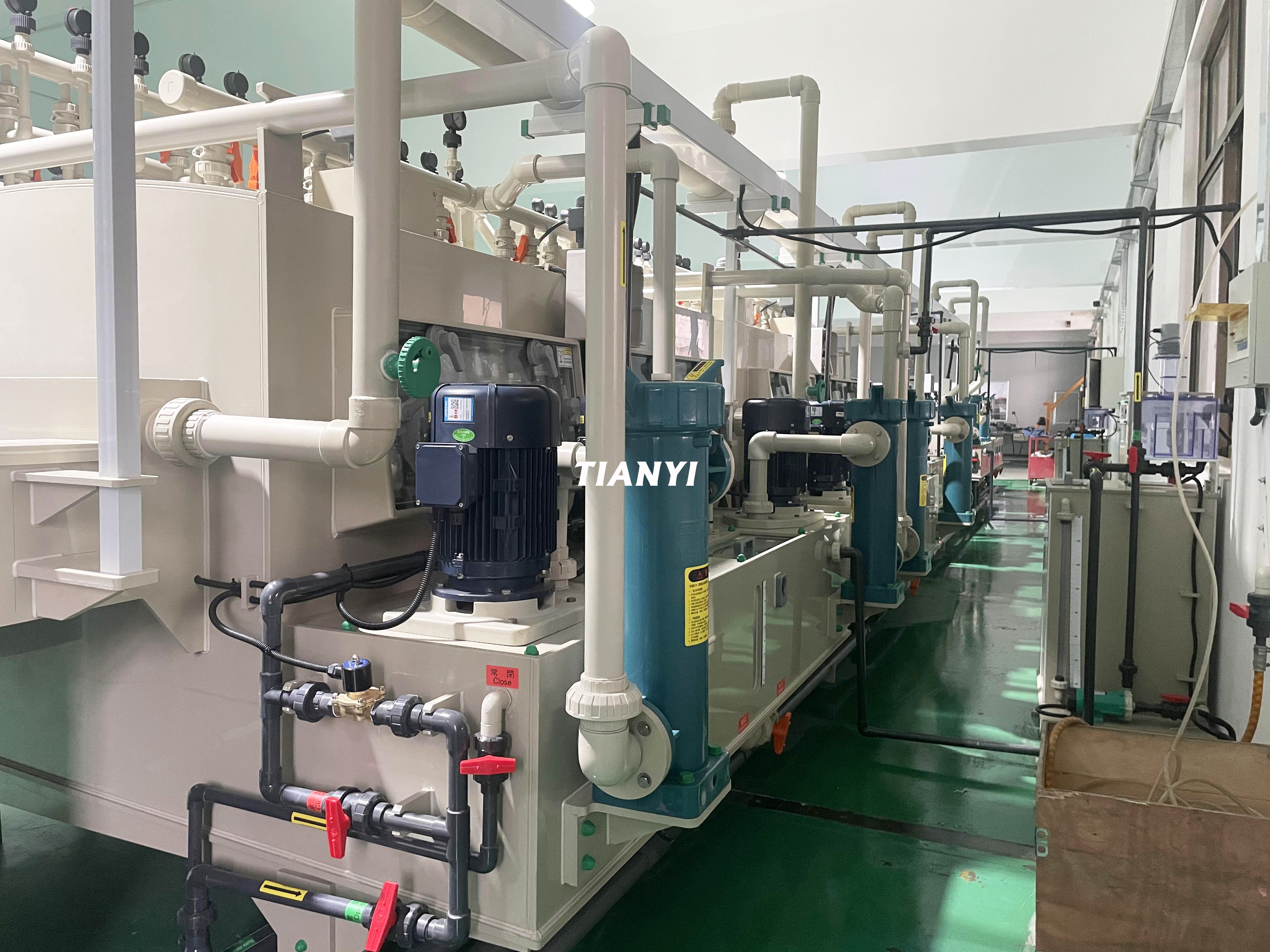

SES line is one whole set machine including film stripping, Etching and Tin stripping process, it removes a thin copper layer from the board surface for better circuit accuracy and plating adhesion.Effective vacuum etching spraying length is 4meter, constructed with a corrosion-resistant body and advanced PP material. It could achieve 1.5-1.8 meter/min working speed for PCB etching production.Auto dosing system: Film stripping(NaOH dosing system); alkaline Etching(SG dosing system); Tin stripping(SG dosing system).

No items found.

Specifications

Etching machine process includes Loading → Soak → Film stripping → Recycle washing (1/2/3) → DI water rinsing 1 → Squeezing → Inspection →Vacuum Etching → Recycle washing (4/5/6) → DI water rinsing 2 → Squeezing →Inspection → Tin stripping → Recyclewashing(7/8/9) → DI water rinsing → Squeezing → Cold blower → Hot air drying → Unloading

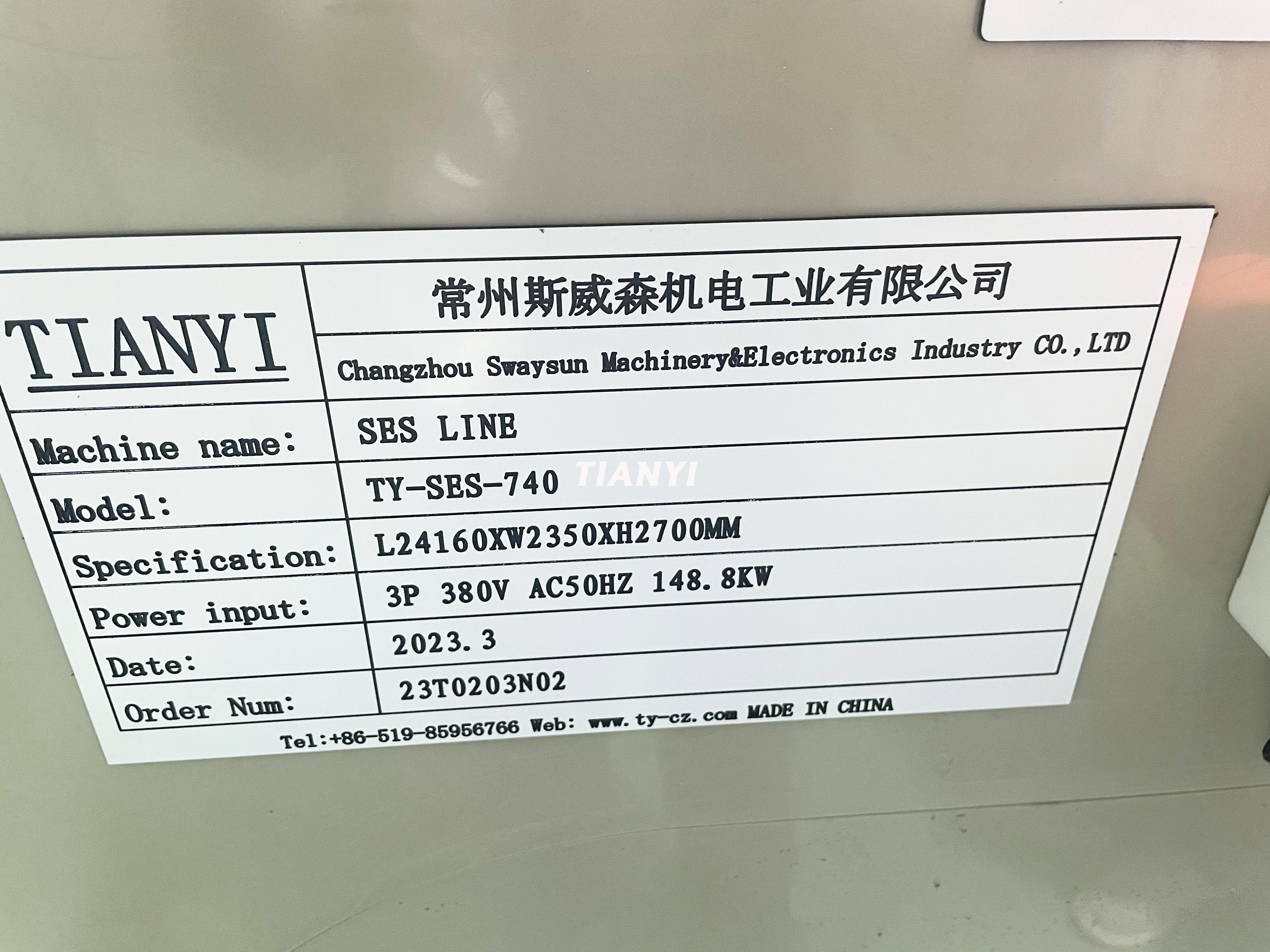

Dimension L24,160xW2350xH2700MM

Effective working width 740mm

Etching heating/cooling Electric heating with cooling coil

Etching pump 7.5HP 4SET double side Etching

Total power consumption 148.8KW

Guarantee 1year

Optional Auto regeneration system; Cooling chiller; waste gasscrubber(acid fume treatment)
