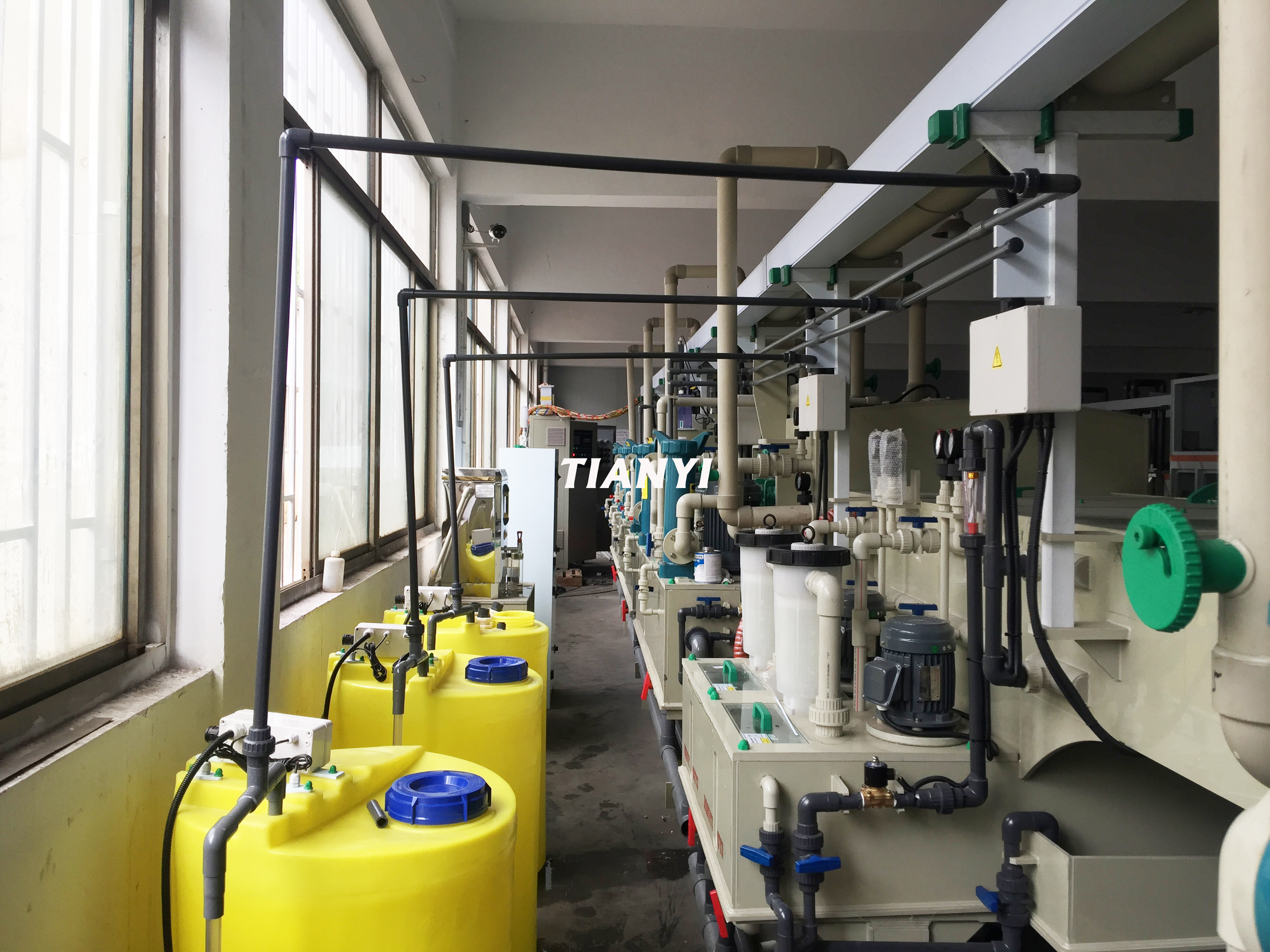

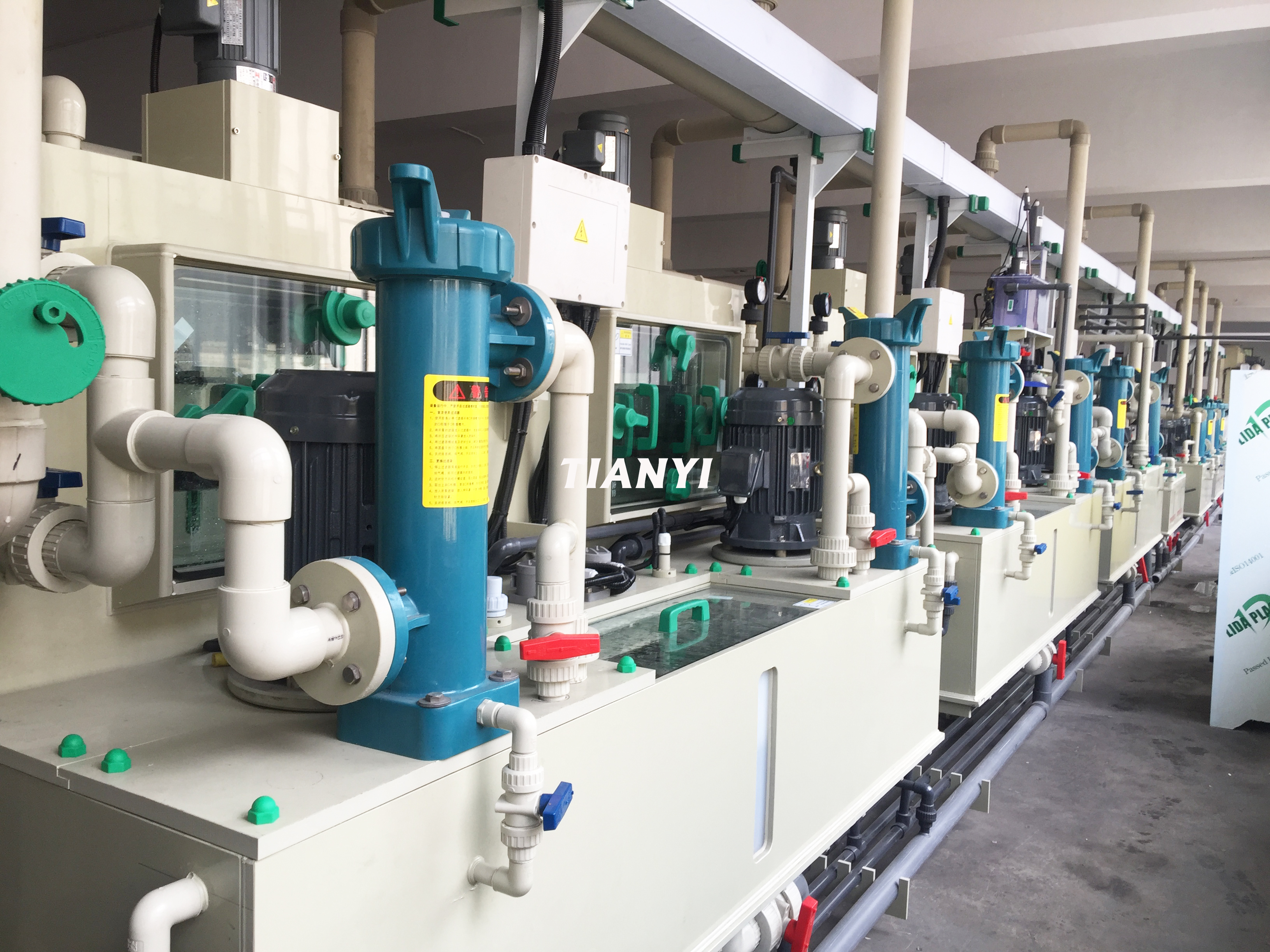

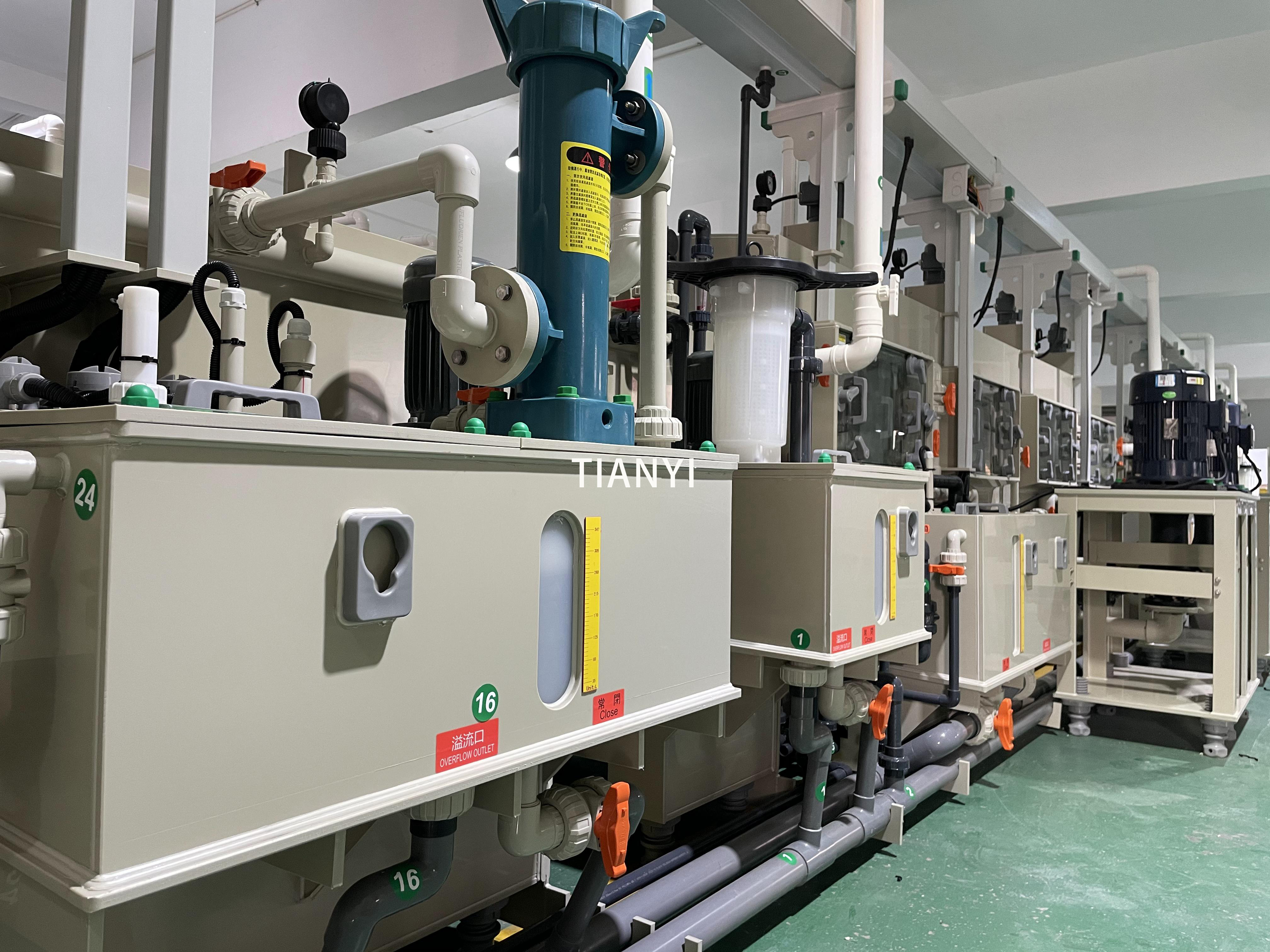

ROLL TO ROLL ETCHING MACHINE FOR ALUMINUM RFID ANTENNA

Description

ROLL TO ROLLETCHING MACHINE FOR ALUMINUM RFID ANTENNA

‍

Etching machine is waiting for you.

Effective etching spraying length is 6 meter, constructed with a corrosion-resistant body and advanced PP material. It could achieve 10-12meter/min working speed for aluminum Antenna etching production.

Roll to roll Aluminum PET film roll running by adding winder and unwinder. Equipped with an acid regeneration system to ensure precise concentration control and stable performance for batch etching production.

No items found.

Specifications

Etching machine process includes Loading → Etching → Recycle washing (1/2) → DI water rinsing → Squeezing → Inspection→ Soak → Stripping → Recycle washing(3/4) → DIwater rinsing → Squeezing → Cold blower → Hot air drying → Unloading

Dimension L22,280xW2100xH2600MM

Effective working width 600mm

Etching heating/cooling Electric heating with cooling coil

Etching pump 7.5HP 6SET double side Etching

Total power consumption 101KW

Guarantee 1year

Optional Acid regeneration system; Cooling chiller;waste gas scrubber(acid fume treatment)
